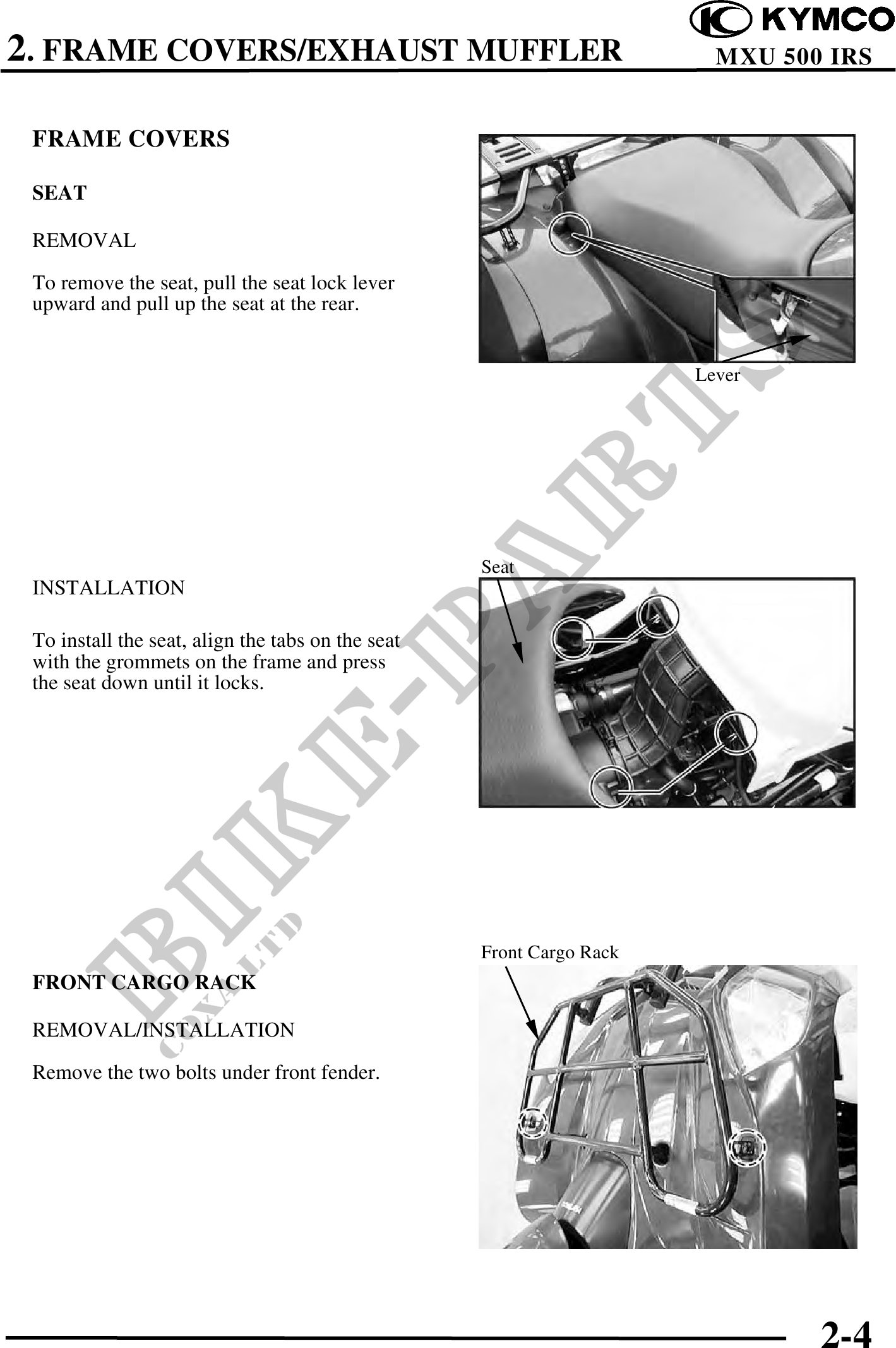

          2. FRAME COVERS/EXHAUST MUFFLER                                         MXU 500 IRS


 FRAME COVERS

 SEAT

 REMOVAL

 To remove the seat, pull the seat lock lever
 upward and pull up the seat at the rear.


                                                                      Lever




                                                   Seat
 INSTALLATION

 To install the seat, align the tabs on the seat
 with the grommets on the frame and press
 the seat down until it locks.




                                                   Front Cargo Rack
 FRONT CARGO RACK

 REMOVAL/INSTALLATION

 Remove the two bolts under front fender.




                                                                               2-4
