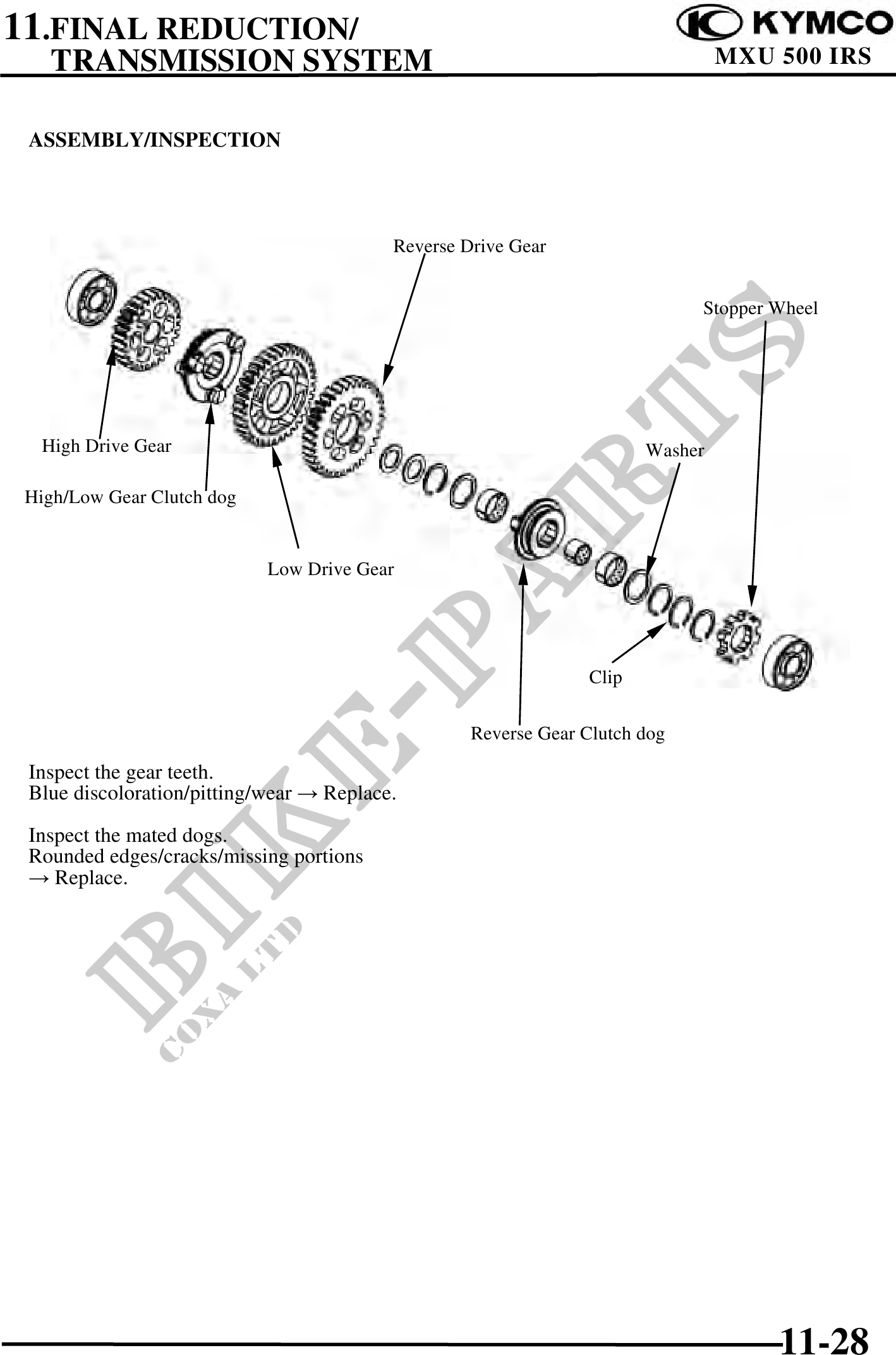

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                          MXU 500 IRS


 ASSEMBLY/INSPECTION




                                         Reverse Drive Gear


                                                                            Stopper Wheel




  High Drive Gear                                                      Washer

 High/Low Gear Clutch dog


                            Low Drive Gear




                                                                Clip

                                                  Reverse Gear Clutch dog

 Inspect the gear teeth.
 Blue discoloration/pitting/wear  Replace.

 Inspect the mated dogs.
 Rounded edges/cracks/missing portions
  Replace.




                                                                                    11-28
