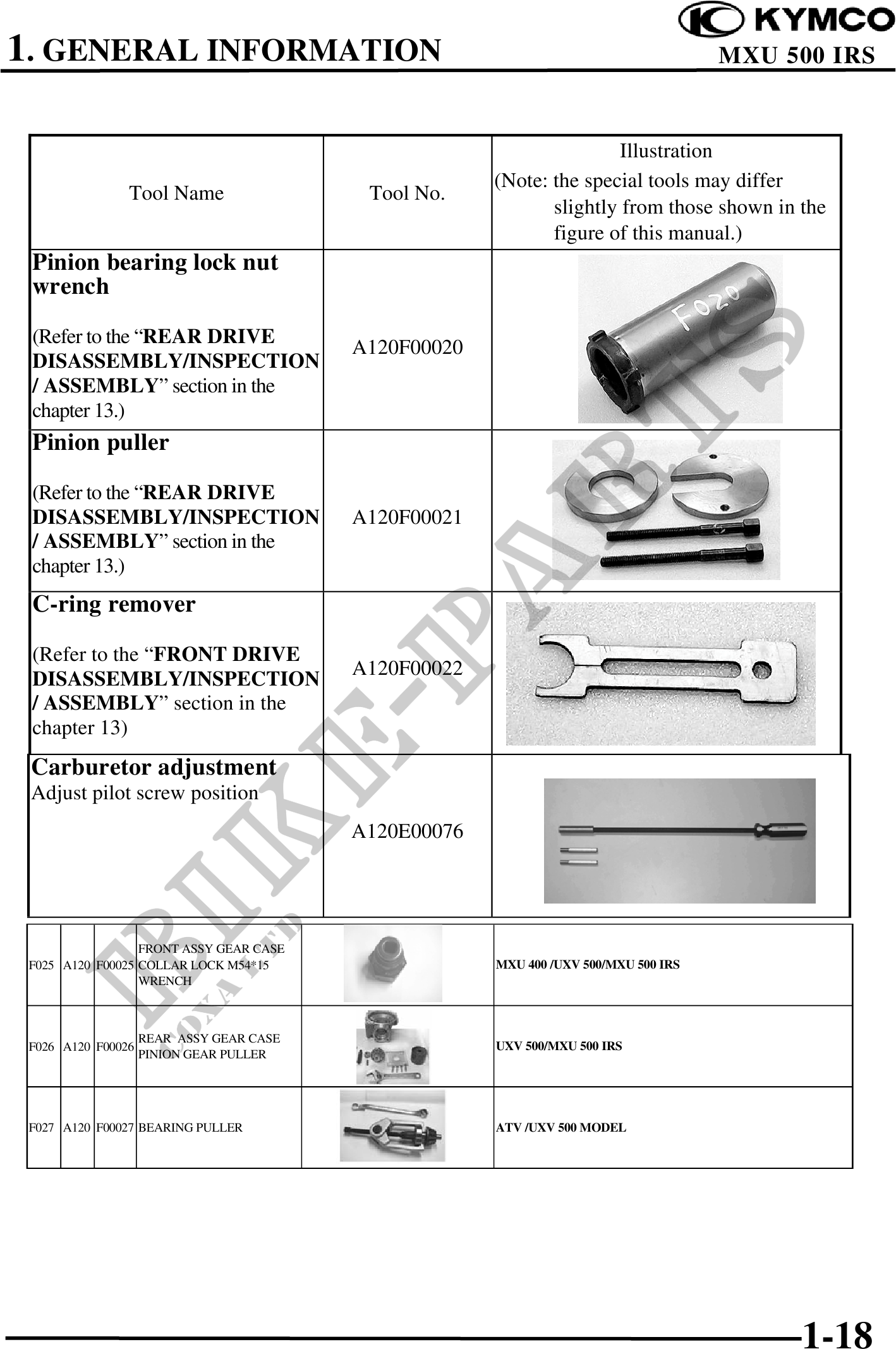

          1. GENERAL INFORMATION                                                                MXU 500 IRS


                                                                      Illustration
                                                       (Note: the special tools may differ
                Tool Name                  Tool No.
                                                              slightly from those shown in the
                                                              figure of this manual.)
 Pinion bearing lock nut
 wrench
 (Refer to the "REAR DRIVE
                                          A120F00020
 DISASSEMBLY/INSPECTION
 / ASSEMBLY" section in the
 chapter 13.)
 Pinion puller
 (Refer to the "REAR DRIVE
 DISASSEMBLY/INSPECTION                   A120F00021
 / ASSEMBLY" section in the
 chapter 13.)
 C-ring remover

 (Refer to the "FRONT DRIVE
 DISASSEMBLY/INSPECTION                   A120F00022
 / ASSEMBLY" section in the
 chapter 13)
 Carburetor adjustment
 Adjust pilot screw position
                                          A120E00076




                  FRONT ASSY GEAR CASE
 F025 A120 F00025 COLLAR LOCK M54*15                   MXU 400 /UXV 500/MXU 500 IRS
                  WRENCH



                    REAR ASSY GEAR CASE
 F026 A120 F00026                                      UXV 500/MXU 500 IRS
                    PINION GEAR PULLER




 F027 A120 F00027 BEARING PULLER                       ATV /UXV 500 MODEL




                                                                                           1-18
