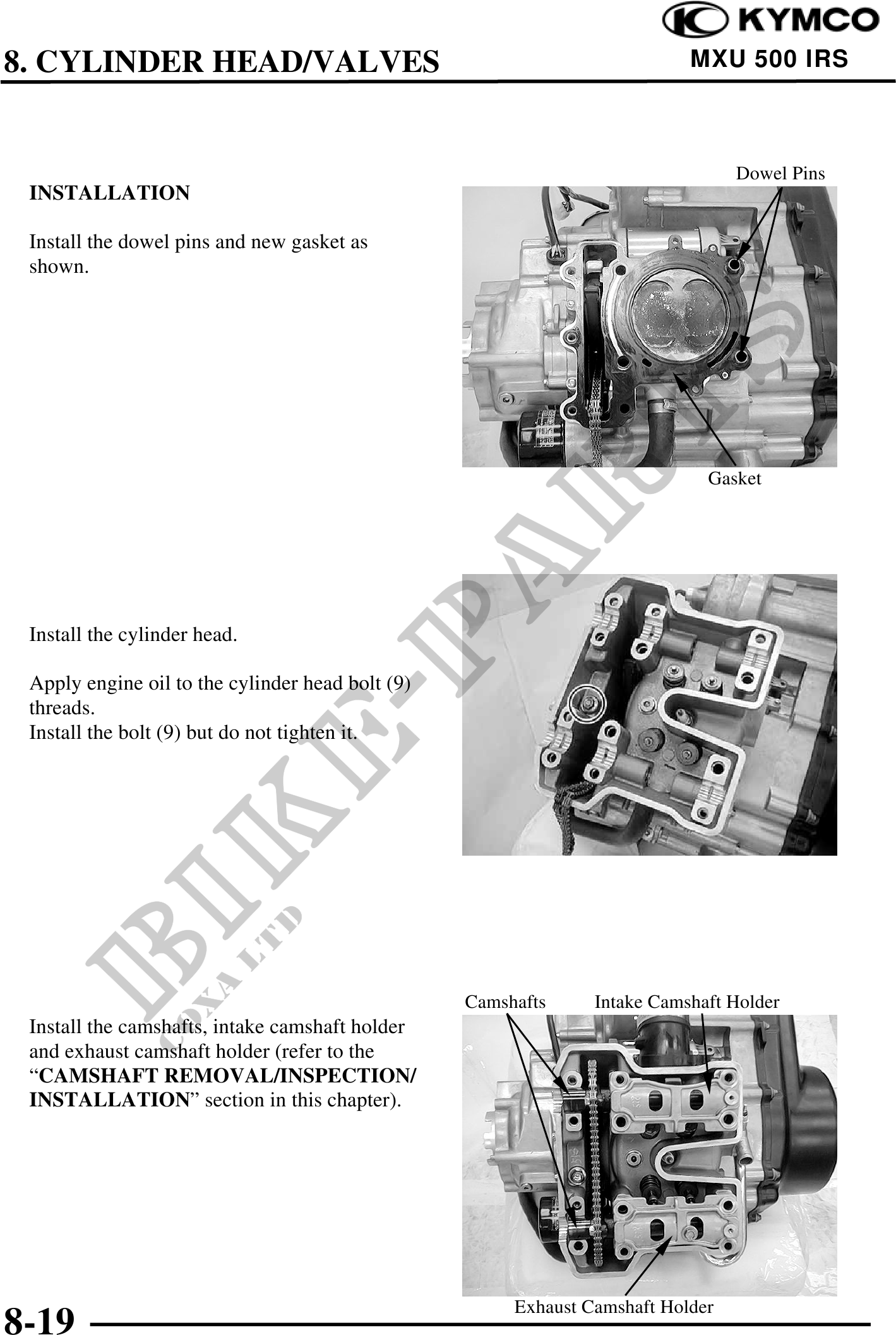

          8. CYLINDER HEAD/VALVES                                                    MXU 500 IRS



                                                                                 Dowel Pins
 INSTALLATION

 Install the dowel pins and new gasket as
 shown.




                                                                             Gasket




 Install the cylinder head.

 Apply engine oil to the cylinder head bolt (9)
 threads.
 Install the bolt (9) but do not tighten it.




                                                  Camshafts     Intake Camshaft Holder
 Install the camshafts, intake camshaft holder
 and exhaust camshaft holder (refer to the
 "CAMSHAFT REMOVAL/INSPECTION/
 INSTALLATION" section in this chapter).




                                                       Exhaust Camshaft Holder
8-19
