          4. LUBRICATION SYSTEM                                                                      ATV 50

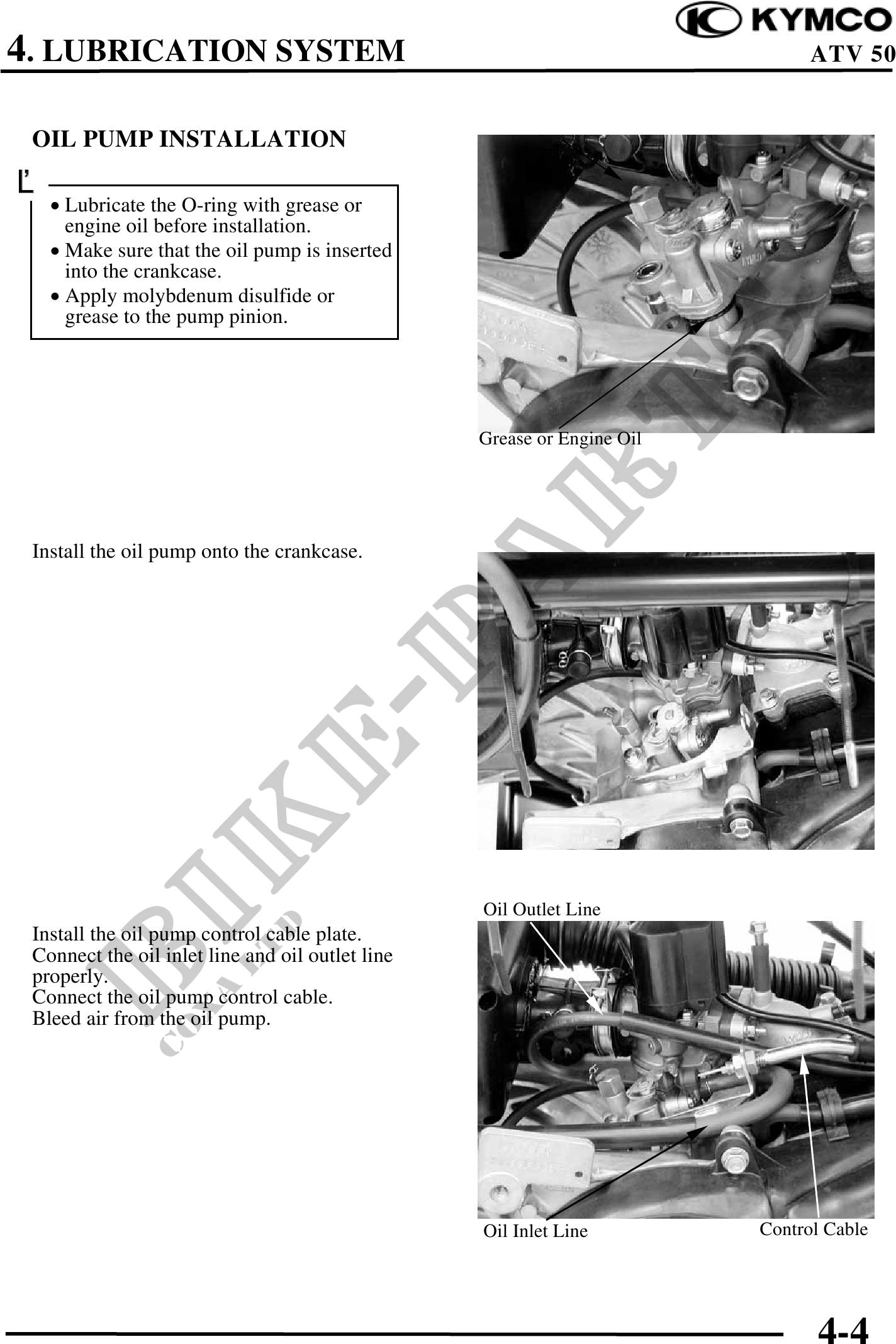

 OIL PUMP INSTALLATION

   · Lubricate the O-ring with grease or
     engine oil before installation.
   · Make sure that the oil pump is inserted
     into the crankcase.
   · Apply molybdenum disulfide or
     grease to the pump pinion.




                                                                         Bolts
                                                  Grease or Engine Oil




 Install the oil pump onto the crankcase.




                                                                    Nut




                                                  Oil Outlet Line
 Install the oil pump control cable plate.
 Connect the oil inlet line and oil outlet line
 properly.                                                                  Oil Pump Driven Gear
 Connect the oil pump control cable.
 Bleed air from the oil pump.




                                                  Oil Inlet Line                     Control Cable
