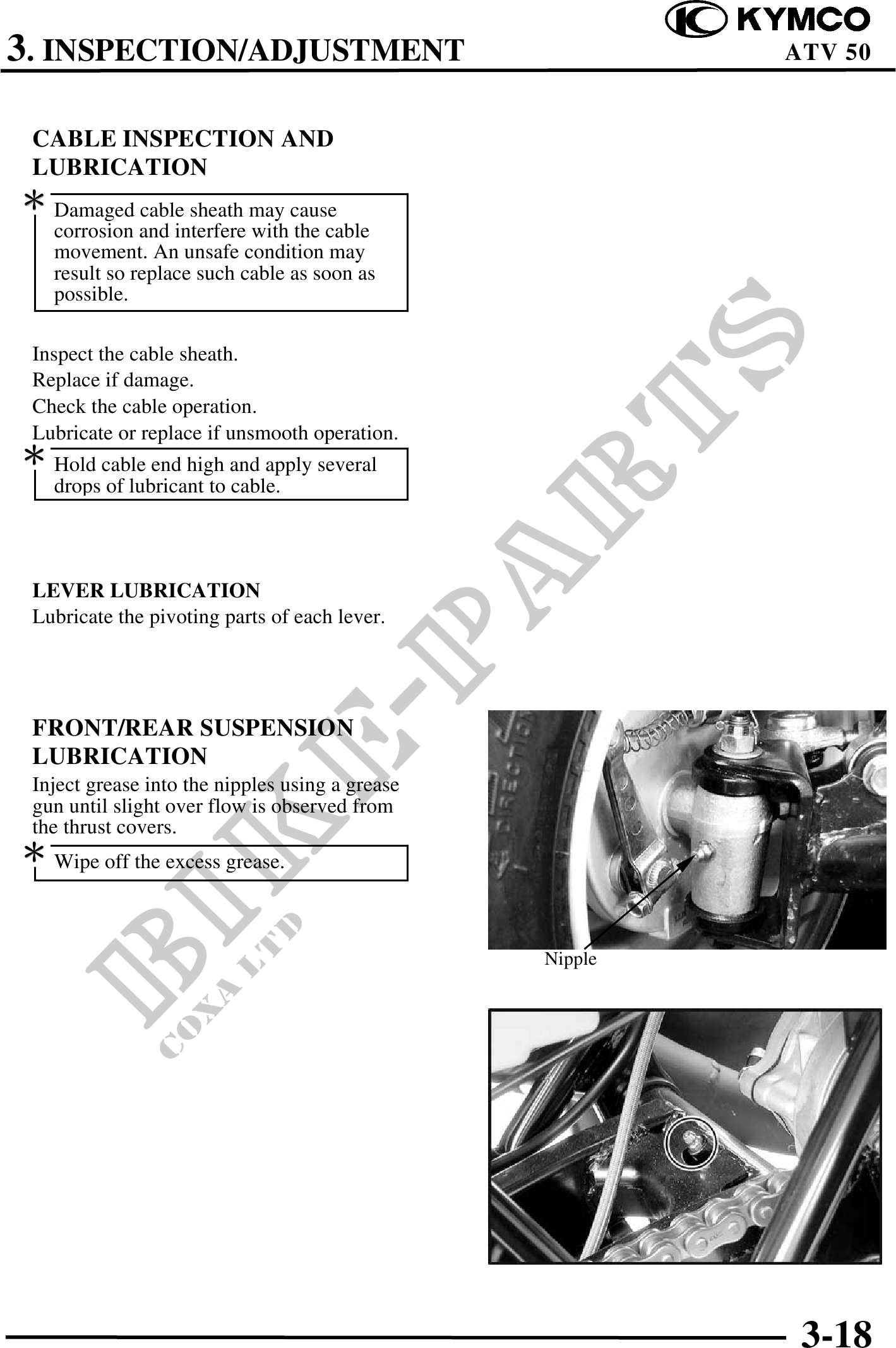

3. INSPECTION/ADJUSTMENT ATV 50
CABLE INSPECTION AND
LUBRICATION
Damaged cable sheath may cause
corrosion and interfere with the cable
movement. An unsafe condition may
result so replace such cable as soon as
possible.
Inspect the cable sheath.
Replace if damage.
Check the cable operation.
Lubricate or replace if unsmooth operation.
Hold cable end high and apply several
drops of lubricant to cable.
LEVER LUBRICATION
Lubricate the pivoting parts of each lever.
FRONT/REAR SUSPENSION
LUBRICATION
Inject grease into the nipples using a grease
gun until slight over flow is observed from
the thrust covers.
Wipe off the excess grease.
Nipple
3-18
