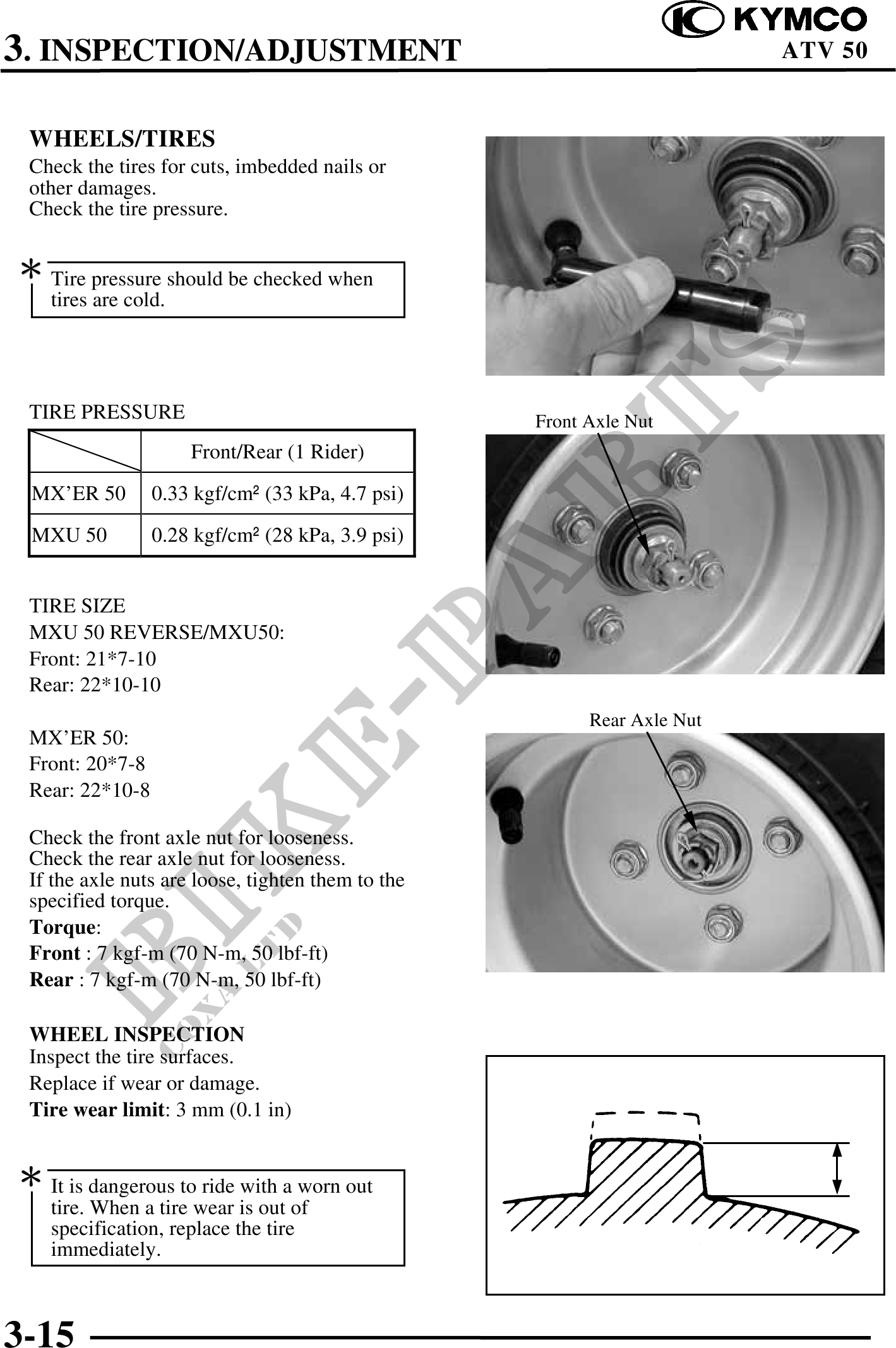

3. INSPECTION/ADJUSTMENT ATV 50
WHEELS/TIRES
Check the tires for cuts, imbedded nails or
other damages.
Check the tire pressure.
Tire pressure should be checked when
tires are cold.
TIRE PRESSURE Front Axle Nut
Front/Rear (1 Rider)
MX'ER 50 0.33 kgf/cm (33 kPa, 4.7 psi)
MXU 50 0.28 kgf/cm (28 kPa, 3.9 psi)
TIRE SIZE
MXU 50 REVERSE/MXU50:
Front: 21*7-10
Rear: 22*10-10
Rear Axle Nut
MX'ER 50:
Front: 20*7-8
Rear: 22*10-8
Check the front axle nut for looseness.
Check the rear axle nut for looseness.
If the axle nuts are loose, tighten them to the
specified torque.
Torque:
Front : 7 kgf-m (70 N-m, 50 lbf-ft)
Rear : 7 kgf-m (70 N-m, 50 lbf-ft)
WHEEL INSPECTION
Inspect the tire surfaces.
Replace if wear or damage.
Tire wear limit: 3 mm (0.1 in)
It is dangerous to ride with a worn out
tire. When a tire wear is out of
specification, replace the tire
immediately.
3-15
