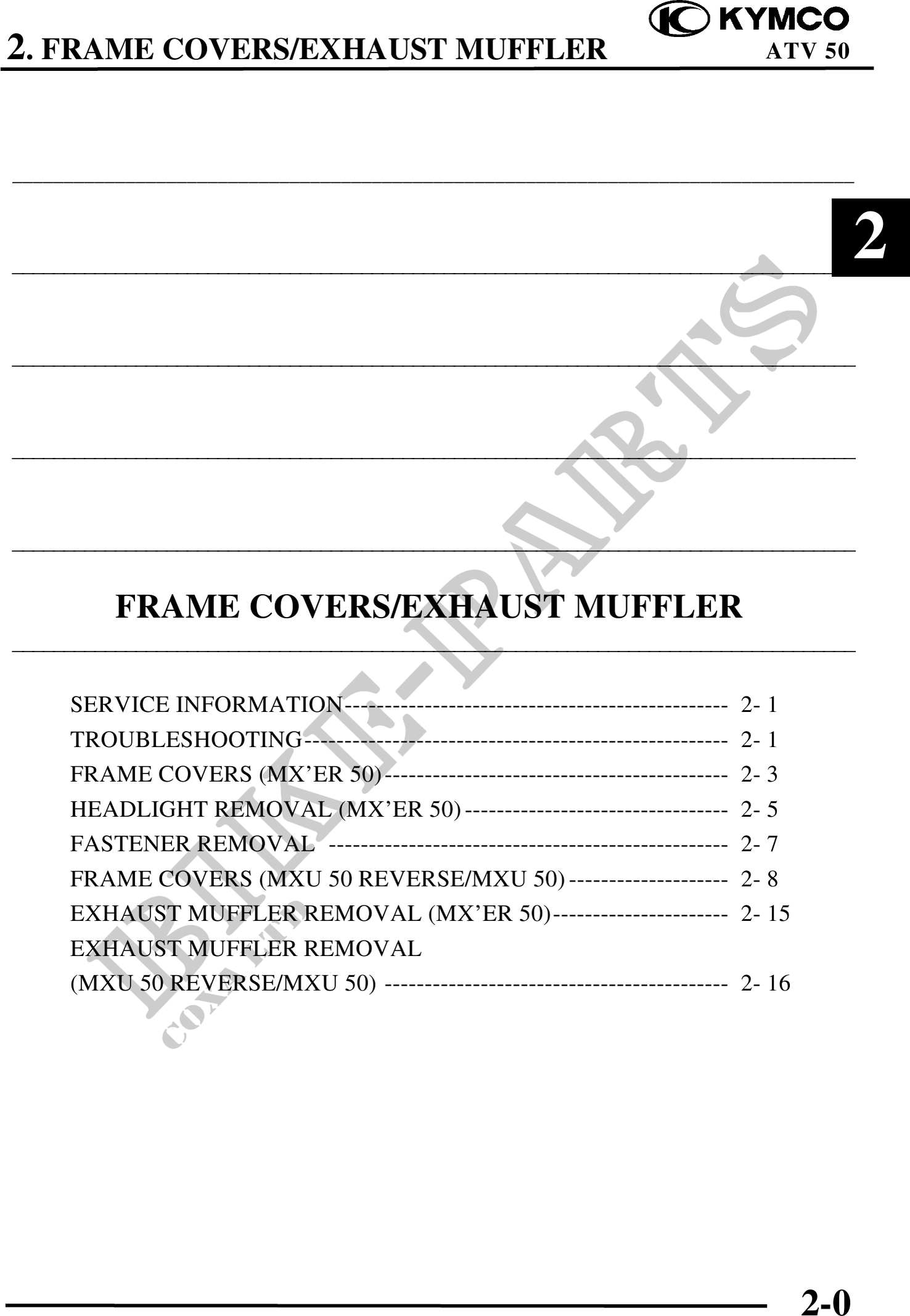

mxu 50 Manuel atelier : Page 44

          2. FRAME COVERS/EXHAUST MUFFLER                                               ATV 50


2
__________________________________________________________________________________



__________________________________________________________________________________
                                                                                          2
__________________________________________________________________________________



__________________________________________________________________________________



__________________________________________________________________________________


          FRAME COVERS/EXHAUST MUFFLER
__________________________________________________________________________________


     SERVICE INFORMATION------------------------------------------------    2- 1
     TROUBLESHOOTING-----------------------------------------------------   2- 1
     FRAME COVERS (MX'ER 50) -------------------------------------------    2- 3
     HEADLIGHT REMOVAL (MX'ER 50) ---------------------------------         2- 5
     FASTENER REMOVAL --------------------------------------------------    2- 7
     FRAME COVERS (MXU 50 REVERSE/MXU 50) --------------------              2- 8
     EXHAUST MUFFLER REMOVAL (MX'ER 50)----------------------               2- 15
     EXHAUST MUFFLER REMOVAL
     (MXU 50 REVERSE/MXU 50) -------------------------------------------    2- 16




                                                                                    2-0
