          19. ONLY ATV ON ROAD AVAILABLE                                ATV 50

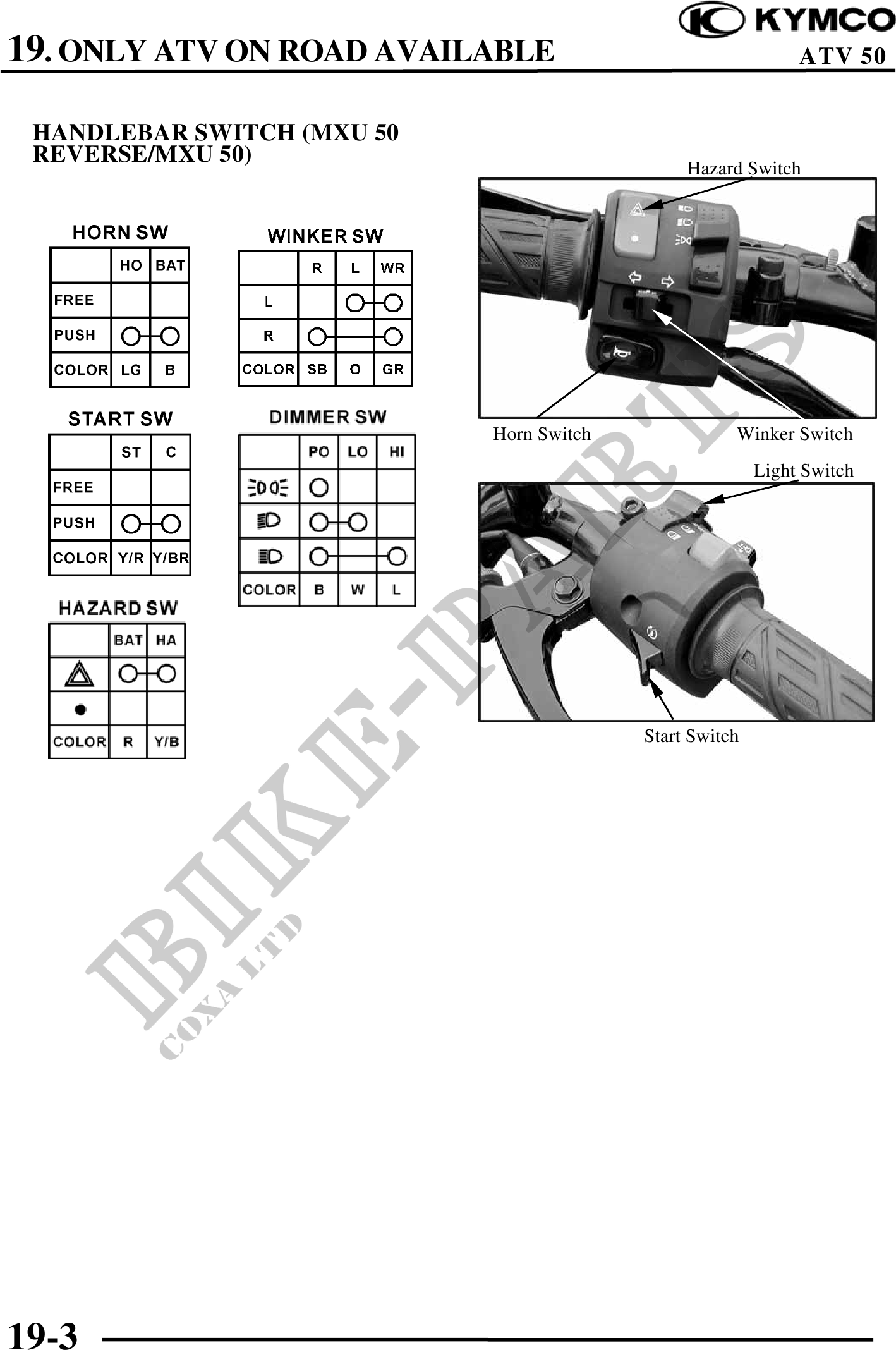

 HANDLEBAR SWITCH (MXU 50
 REVERSE/MXU 50)
                                               Hazard Switch




                            Horn Switch              Winker Switch
                                                         Light Switch




                                          Start Switch
