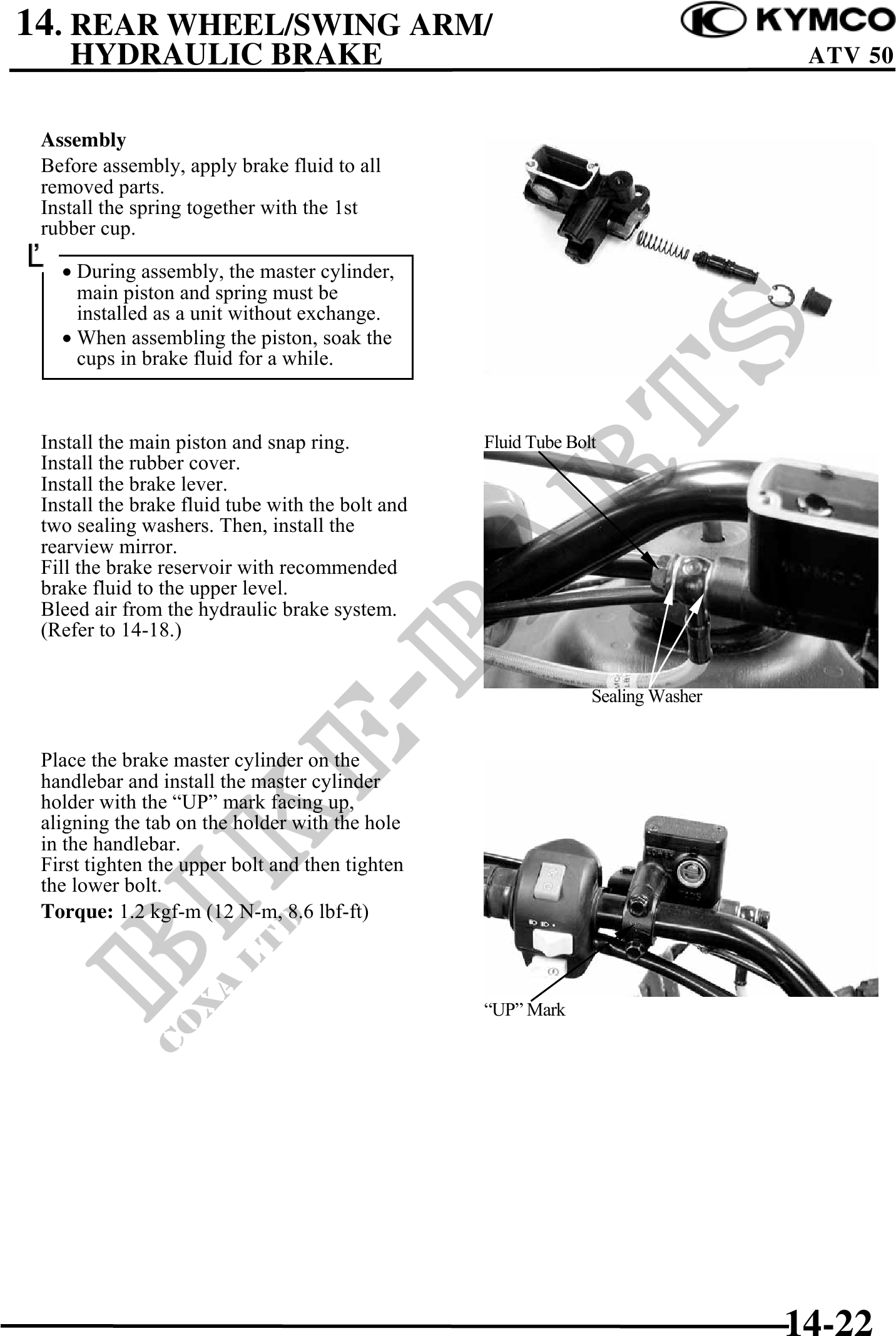

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
Assembly
Before assembly, apply brake fluid to all
removed parts.
Install the spring together with the 1st
rubber cup.
· During assembly, the master cylinder,
main piston and spring must be
installed as a unit without exchange.
· When assembling the piston, soak the
cups in brake fluid for a while.
Install the main piston and snap ring. Fluid Tube Bolt
Install the rubber cover.
Install the brake lever.
Install the brake fluid tube with the bolt and
two sealing washers. Then, install the
rearview mirror.
Fill the brake reservoir with recommended
brake fluid to the upper level.
Bleed air from the hydraulic brake system.
(Refer to 14-18.)
Sealing Washer
Place the brake master cylinder on the
handlebar and install the master cylinder
holder with the "UP" mark facing up,
aligning the tab on the holder with the hole
in the handlebar.
First tighten the upper bolt and then tighten
the lower bolt.
Torque: 1.2 kgf-m (12 N-m, 8.6 lbf-ft)
"UP" Mark
14-22
