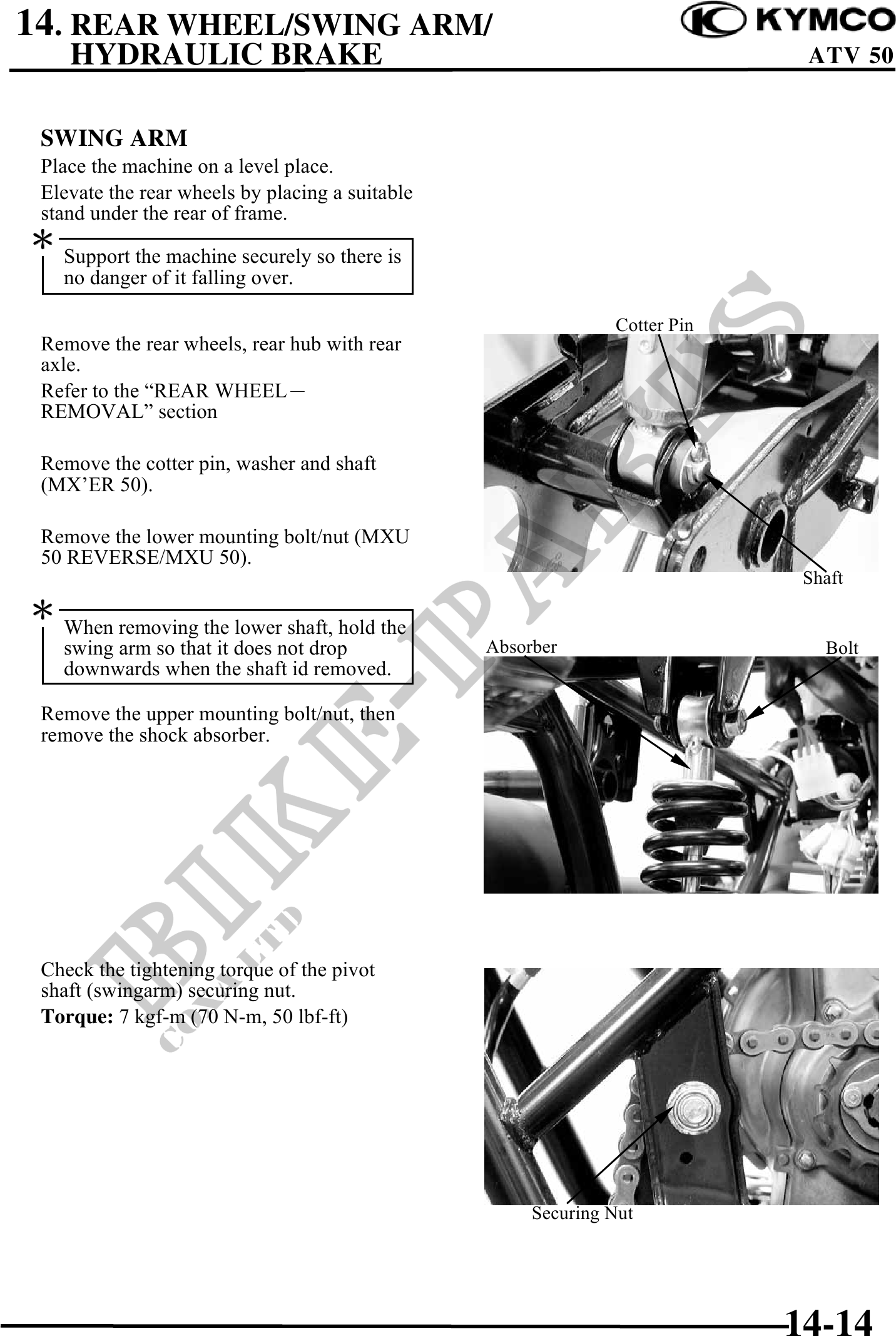

14. REAR WHEEL/SWING ARM/ HYDRAULIC BRAKE ATV 50 SWING ARM Place the machine on a level place. Elevate the rear wheels by placing a suitable stand under the rear of frame. Support the machine securely so there is no danger of it falling over. Cotter Pin Remove the rear wheels, rear hub with rear axle. Refer to the "REAR WHEEL REMOVAL" section Remove the cotter pin, washer and shaft (MX'ER 50). Remove the lower mounting bolt/nut (MXU 50 REVERSE/MXU 50). Shaft When removing the lower shaft, hold the swing arm so that it does not drop Absorber Bolt downwards when the shaft id removed. Remove the upper mounting bolt/nut, then remove the shock absorber. Check the tightening torque of the pivot shaft (swingarm) securing nut. Torque: 7 kgf-m (70 N-m, 50 lbf-ft) Securing Nut 14-14
