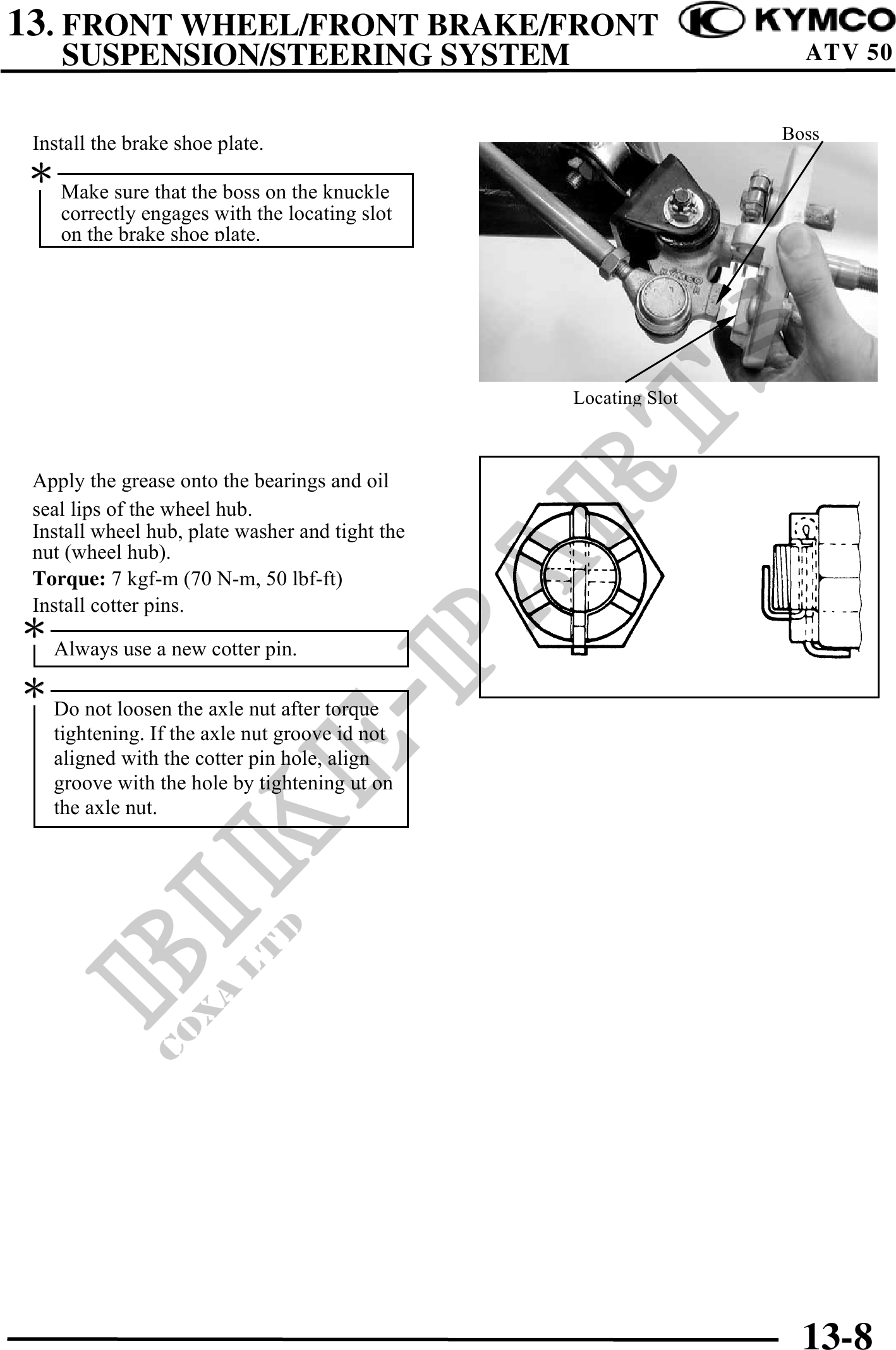

          13. FRONT WHEEL/FRONT BRAKE/FRONT
    SUSPENSION/STEERING SYSTEM                                     ATV 50


                                                                 Boss
 Install the brake shoe plate.

    Make sure that the boss on the knuckle
    correctly engages with the locating slot
    on the brake shoe plate.




                                                 Locating Slot



 Apply the grease onto the bearings and oil
 seal lips of the wheel hub.
 Install wheel hub, plate washer and tight the
 nut (wheel hub).
 Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
 Install cotter pins.

   Always use a new cotter pin.

   Do not loosen the axle nut after torque
   tightening. If the axle nut groove id not
   aligned with the cotter pin hole, align
   groove with the hole by tightening ut on
   the axle nut.




                                                                   13-8
