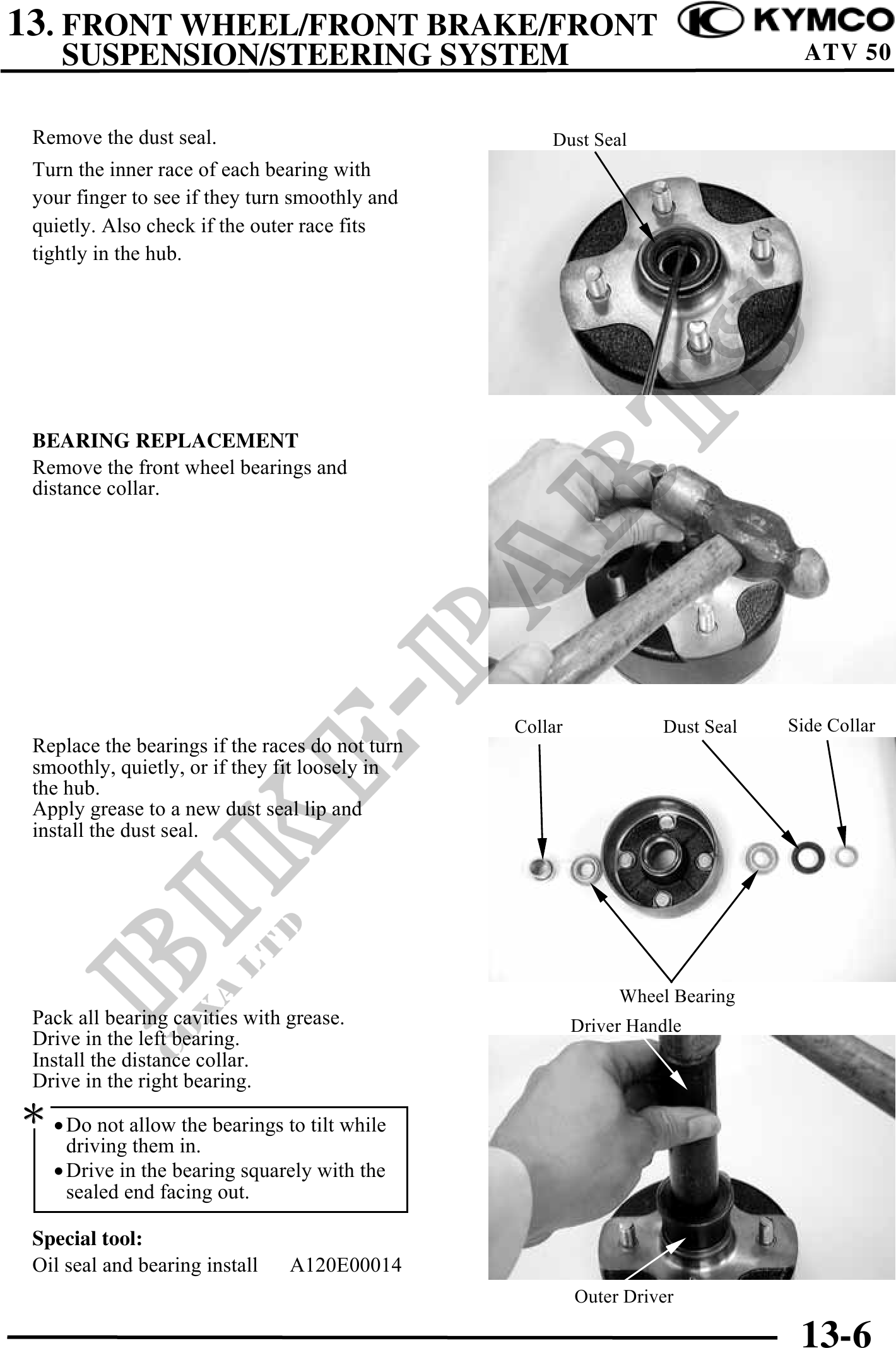

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Remove the dust seal. Dust Seal
Turn the inner race of each bearing with
your finger to see if they turn smoothly and
quietly. Also check if the outer race fits
tightly in the hub.
BEARING REPLACEMENT
Remove the front wheel bearings and
distance collar.
Collar Dust Seal Side Collar
Replace the bearings if the races do not turn
smoothly, quietly, or if they fit loosely in
the hub.
Apply grease to a new dust seal lip and
install the dust seal.
Wheel Bearing
Pack all bearing cavities with grease. Driver Handle
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
· Do not allow the bearings to tilt while
driving them in.
· Drive in the bearing squarely with the
sealed end facing out.
Special tool:
Oil seal and bearing install A120E00014
Outer Driver
