          1. GENERAL INFORMATION                                                                         ATV 50


 FRAME

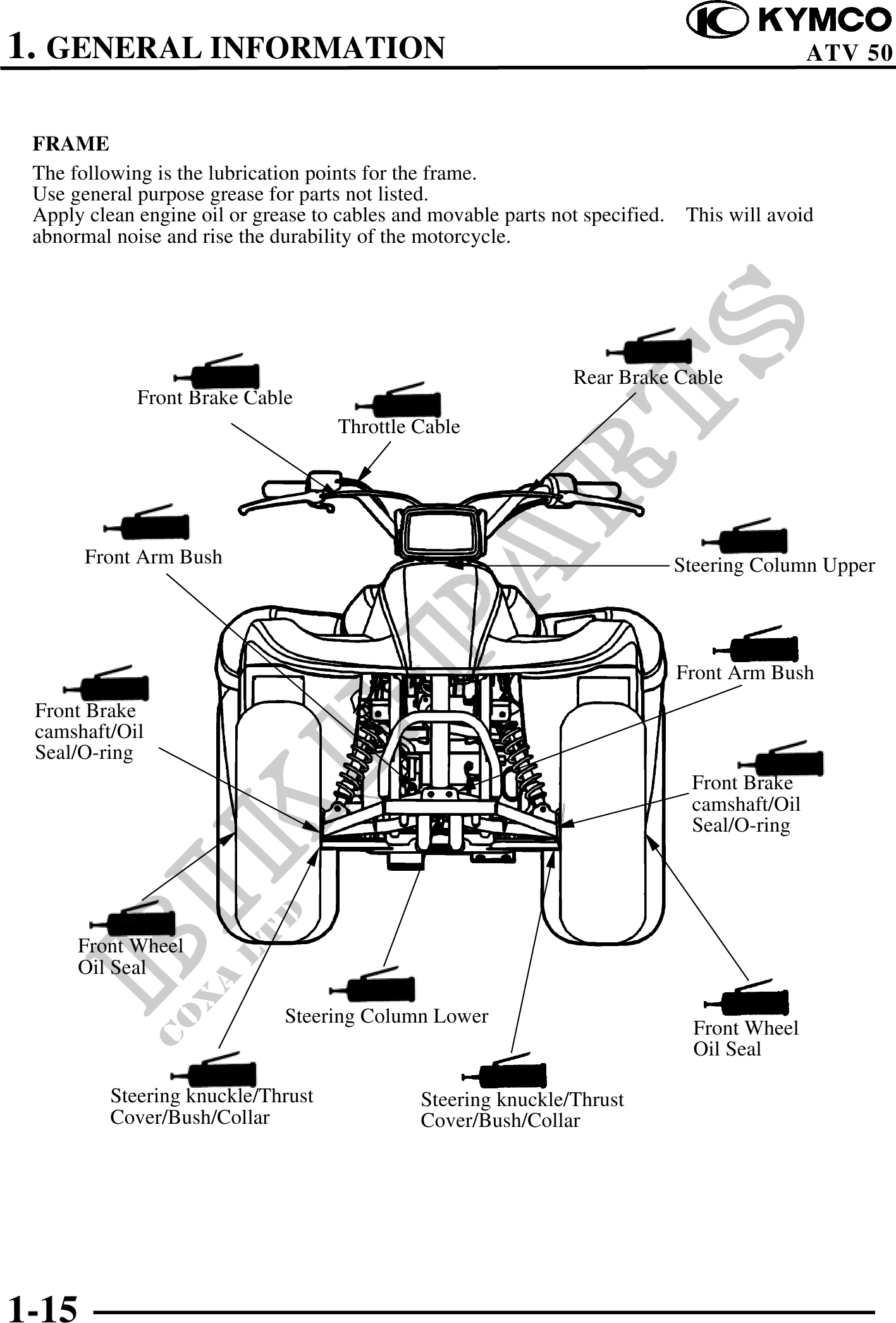

 The following is the lubrication points for the frame.
 Use general purpose grease for parts not listed.
 Apply clean engine oil or grease to cables and movable parts not specified.    This will avoid
 abnormal noise and rise the durability of the motorcycle.




                                                                 Rear Brake Cable
             Front Brake Cable
                                     Throttle Cable




       Front Arm Bush                                                          Steering Column Upper




                                                                               Front Arm Bush
 Front Brake
 camshaft/Oil
 Seal/O-ring
                                                                                Front Brake
                                                                                camshaft/Oil
                                                                                Seal/O-ring




      Front Wheel
      Oil Seal

                              Steering Column Lower
                                                                                 Front Wheel
                                                                                 Oil Seal

          Steering knuckle/Thrust              Steering knuckle/Thrust
          Cover/Bush/Collar                    Cover/Bush/Collar




1-15
