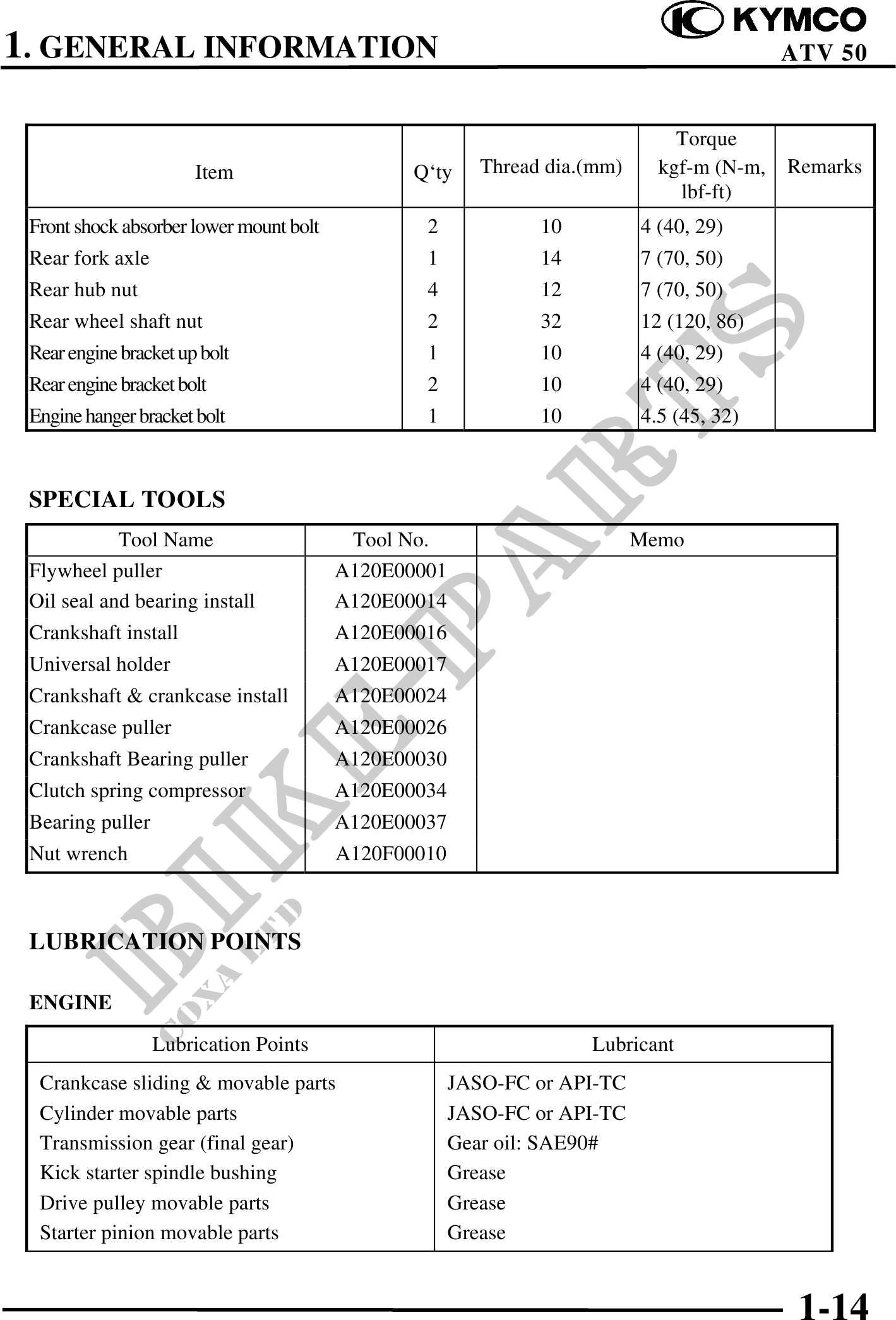

          1. GENERAL INFORMATION                                                                     ATV 50


                                                                               Torque
                      Item                      Q`ty     Thread dia.(mm)     kgf-m (N-m,   Remarks
                                                                               lbf-ft)
 Front shock absorber lower mount bolt           2             10          4 (40, 29)
 Rear fork axle                                  1             14          7 (70, 50)
 Rear hub nut                                    4             12          7 (70, 50)
 Rear wheel shaft nut                            2             32          12 (120, 86)
 Rear engine bracket up bolt                     1             10          4 (40, 29)
 Rear engine bracket bolt                        2             10          4 (40, 29)
 Engine hanger bracket bolt                      1             10          4.5 (45, 32)



 SPECIAL TOOLS
            Tool Name                     Tool No.                         Memo
 Flywheel puller                         A120E00001
 Oil seal and bearing install            A120E00014
 Crankshaft install                      A120E00016
 Universal holder                        A120E00017
 Crankshaft & crankcase install          A120E00024
 Crankcase puller                        A120E00026
 Crankshaft Bearing puller               A120E00030
 Clutch spring compressor                A120E00034
 Bearing puller                          A120E00037
 Nut wrench                              A120F00010



 LUBRICATION POINTS

 ENGINE
                Lubrication Points                                  Lubricant
  Crankcase sliding & movable parts                   JASO-FC or API-TC
  Cylinder movable parts                              JASO-FC or API-TC
  Transmission gear (final gear)                      Gear oil: SAE90#
  Kick starter spindle bushing                        Grease
  Drive pulley movable parts                          Grease
  Starter pinion movable parts                        Grease


                                                                                            1-14
