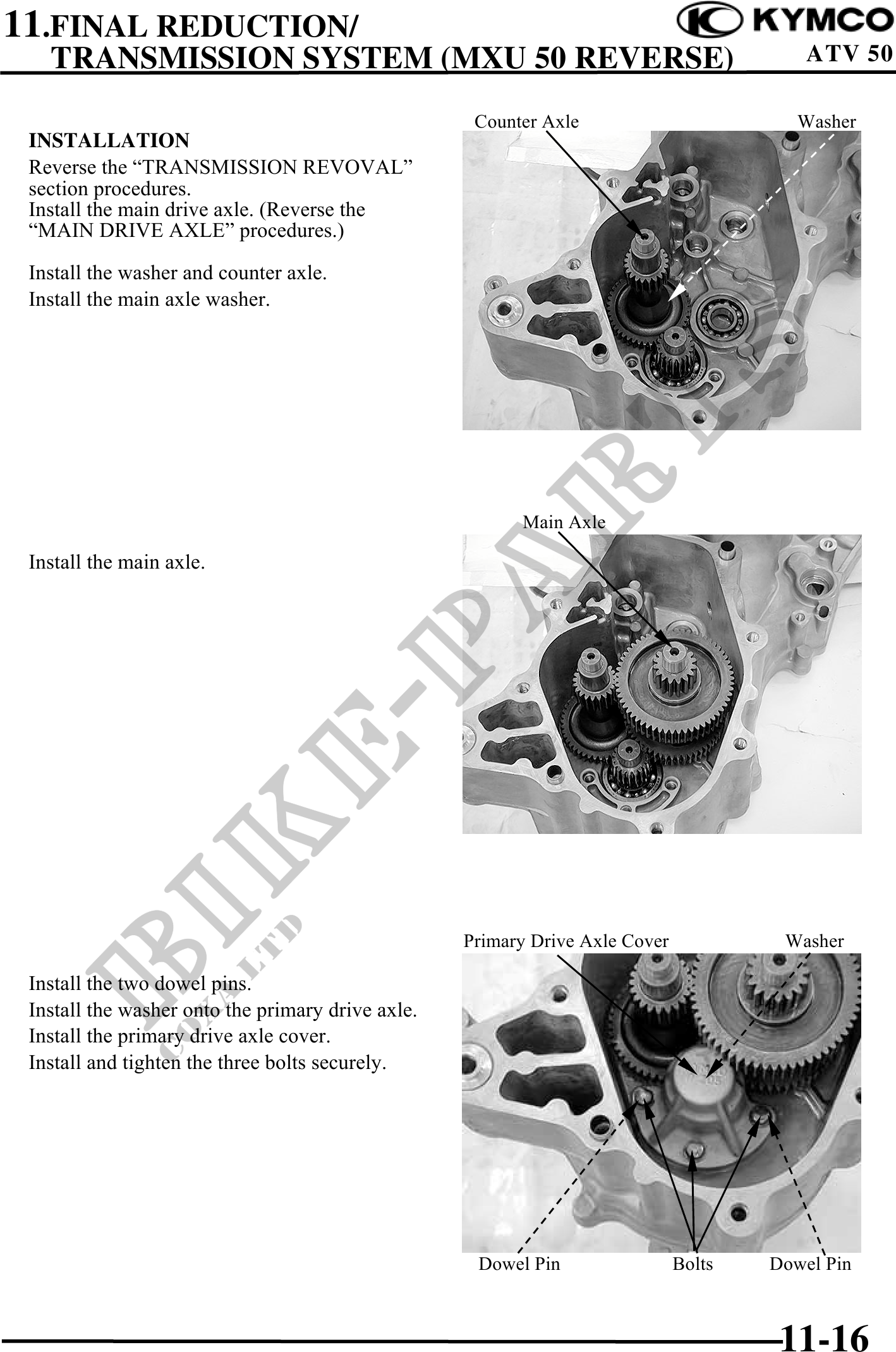

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM (MXU 50 REVERSE)                                                   ATV 50

                                                    Counter Axle                         Washer
 INSTALLATION
 Reverse the "TRANSMISSION REVOVAL"
 section procedures.
 Install the main drive axle. (Reverse the
 "MAIN DRIVE AXLE" procedures.)
 Install the washer and counter axle.
 Install the main axle washer.




                                                         Main Axle

 Install the main axle.




                                                   Primary Drive Axle Cover            Washer

 Install the two dowel pins.
 Install the washer onto the primary drive axle.
 Install the primary drive axle cover.
 Install and tighten the three bolts securely.




                                                    Dowel Pin                 Bolts   Dowel Pin



                                                                                       11-16
