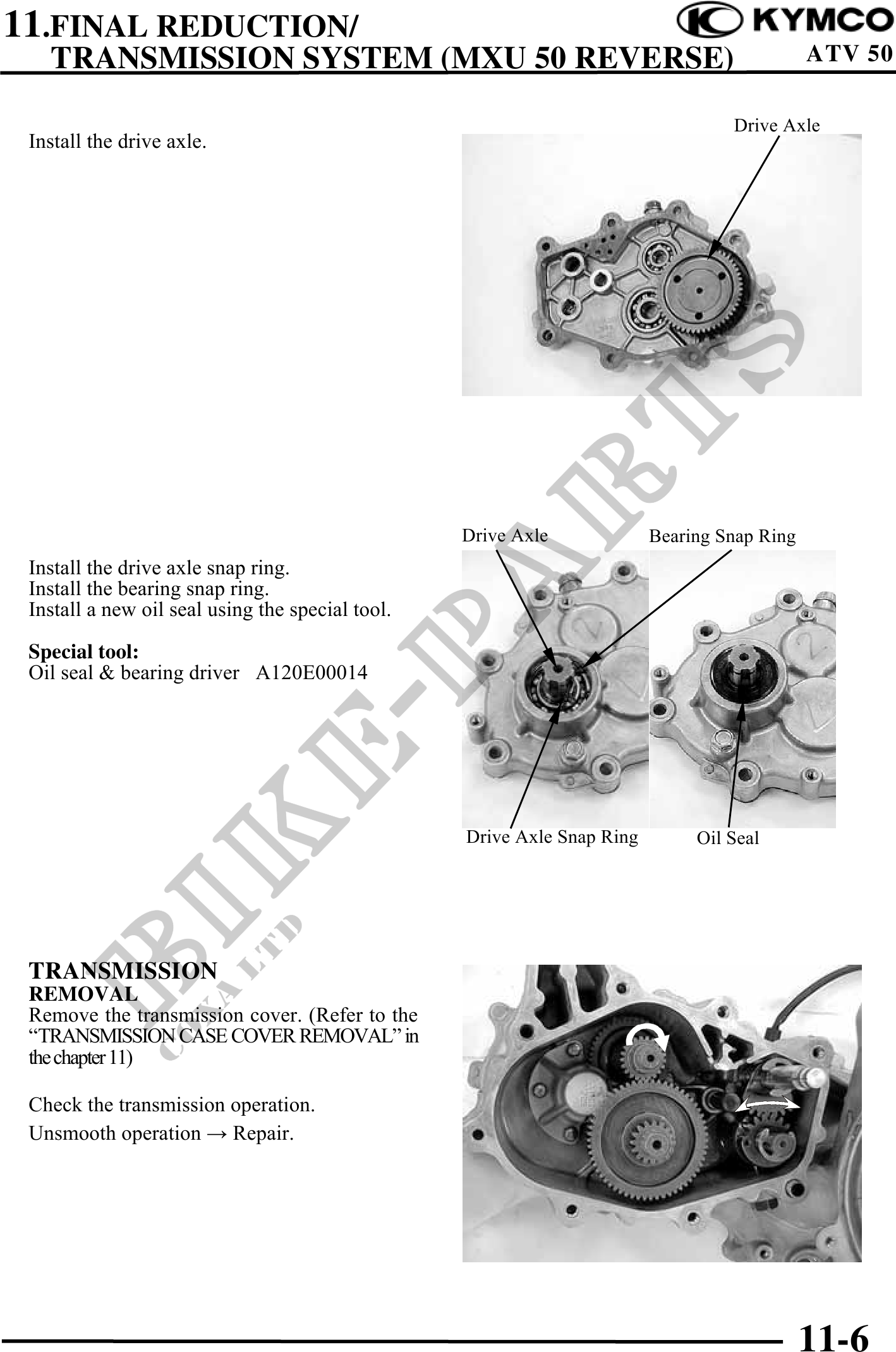

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM (MXU 50 REVERSE)                                                      ATV 50

                                                                                  Drive Axle
 Install the drive axle.




                                                  Drive Axle             Bearing Snap Ring
 Install the drive axle snap ring.
 Install the bearing snap ring.
 Install a new oil seal using the special tool.

 Special tool:
 Oil seal & bearing driver A120E00014




                                                  Drive Axle Snap Ring        Oil Seal




 TRANSMISSION
 REMOVAL
 Remove the transmission cover. (Refer to the
 "TRANSMISSION CASE COVER REMOVAL" in
 the chapter 11)

 Check the transmission operation.
 Unsmooth operation  Repair.




                                                                                             11-6
