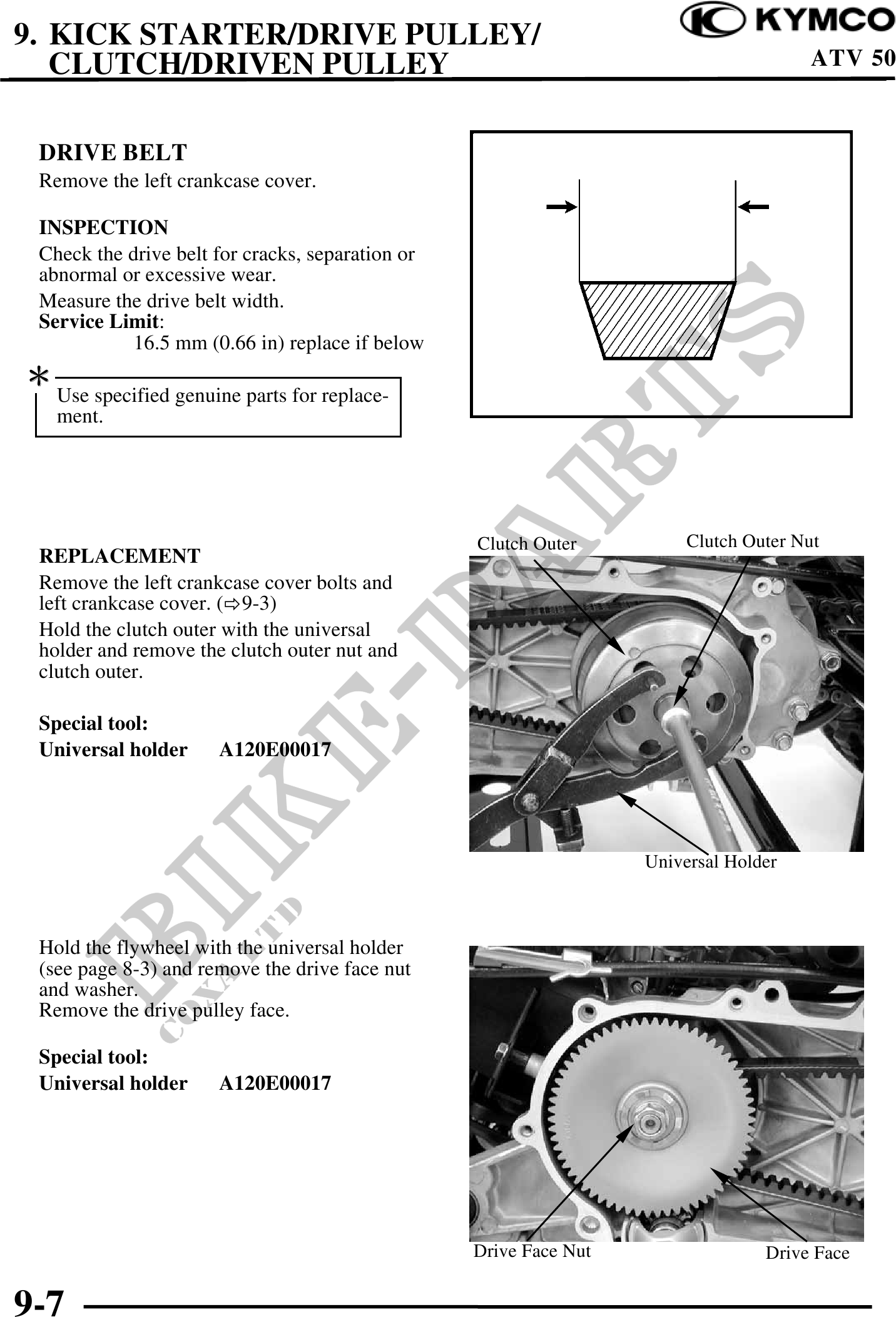

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
DRIVE BELT
Remove the left crankcase cover.
INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit:
16.5 mm (0.66 in) replace if below
Use specified genuine parts for replace-
ment.
Clutch Outer Clutch Outer Nut
REPLACEMENT
Remove the left crankcase cover bolts and
left crankcase cover. ( 9-3)
Hold the clutch outer with the universal
holder and remove the clutch outer nut and
clutch outer.
Special tool:
Universal holder A120E00017
Universal Holder
Hold the flywheel with the universal holder
(see page 8-3) and remove the drive face nut
and washer.
Remove the drive pulley face.
Special tool:
Universal holder A120E00017
Drive Face Nut Drive Face
9-7
