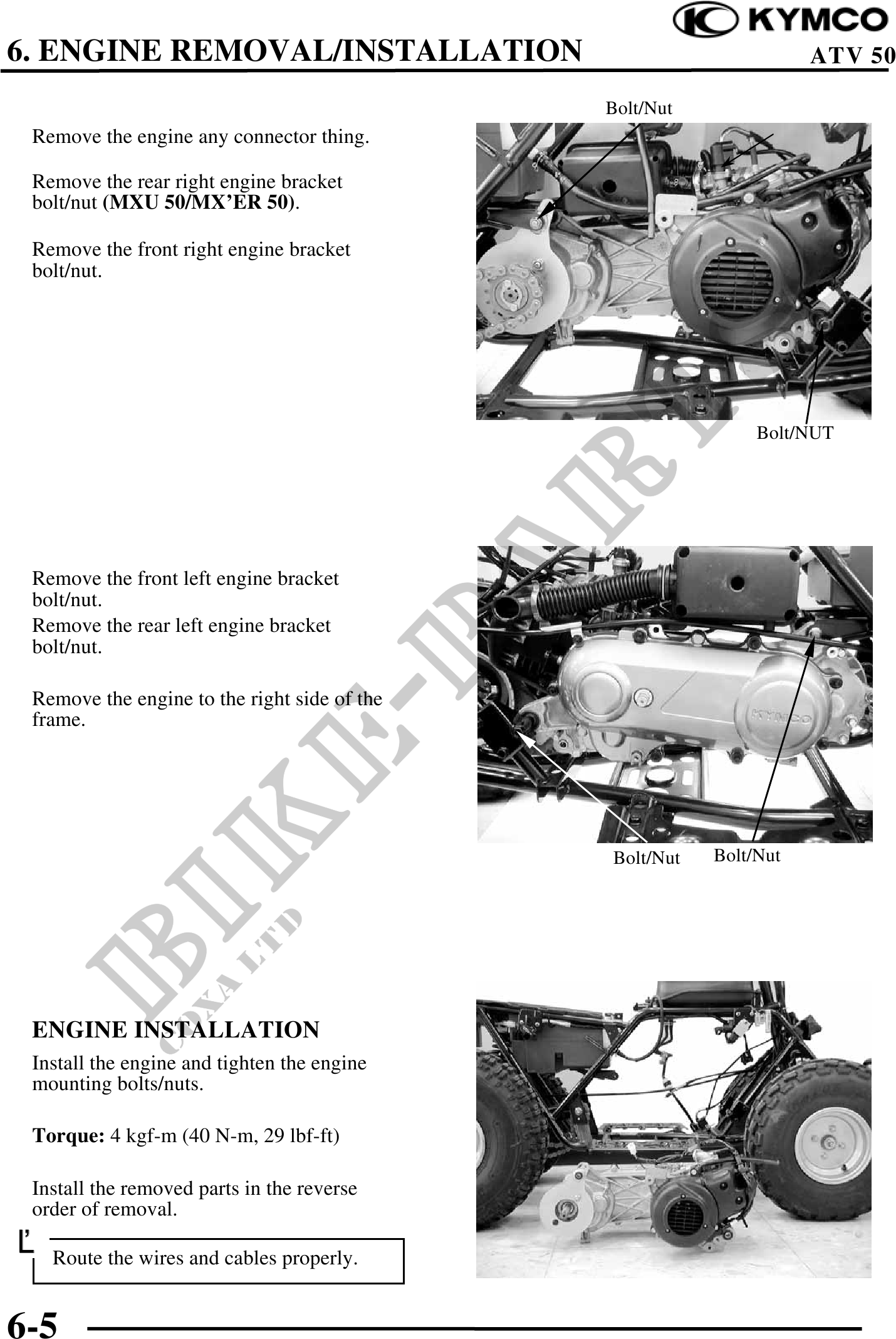

          6. ENGINE REMOVAL/INSTALLATION                                      ATV 50

                                              Bolt/Nut
 Remove the engine any connector thing.

 Remove the rear right engine bracket
 bolt/nut (MXU 50/MX'ER 50).

 Remove the front right engine bracket
 bolt/nut.




                                                              Bolt/NUT




 Remove the front left engine bracket
 bolt/nut.
 Remove the rear left engine bracket
 bolt/nut.

 Remove the engine to the right side of the
 frame.




                                              Bolt/Nut   Bolt/Nut




 ENGINE INSTALLATION
 Install the engine and tighten the engine
 mounting bolts/nuts.

 Torque: 4 kgf-m (40 N-m, 29 lbf-ft)

 Install the removed parts in the reverse
 order of removal.
 Route the wires and cables properly.

6-5
