17. IGNITION SYSTEM MXU 250R/300R

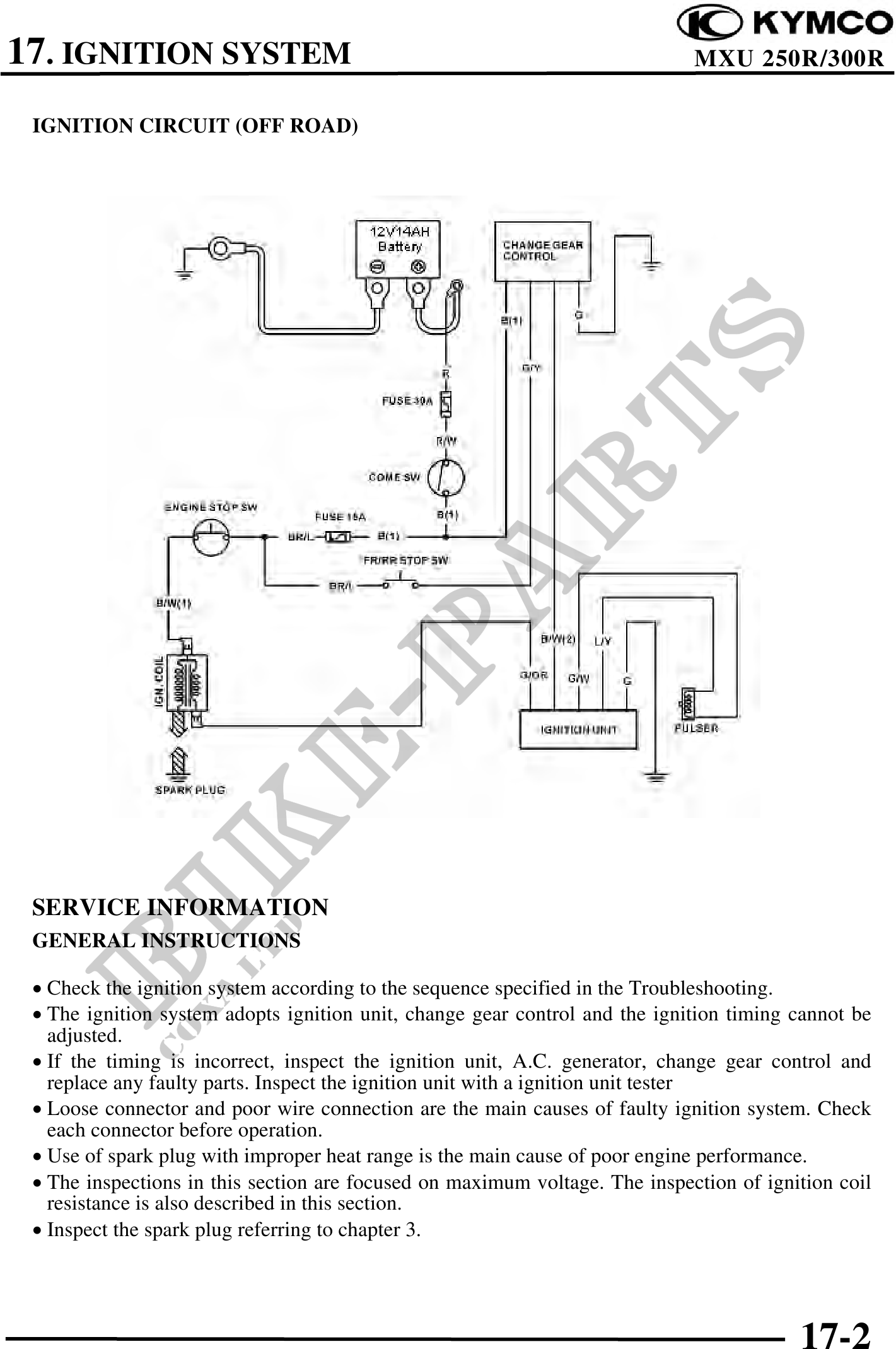

IGNITION CIRCUIT (OFF ROAD)
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Check the ignition system according to the sequence specified in the Troubleshooting.
· The ignition system adopts ignition unit, change gear control and the ignition timing cannot be
adjusted.
· If the timing is incorrect, inspect the ignition unit, A.C. generator, change gear control and
replace any faulty parts. Inspect the ignition unit with a ignition unit tester
· Loose connector and poor wire connection are the main causes of faulty ignition system. Check
each connector before operation.
· Use of spark plug with improper heat range is the main cause of poor engine performance.
· The inspections in this section are focused on maximum voltage. The inspection of ignition coil
resistance is also described in this section.
· Inspect the spark plug referring to chapter 3.
