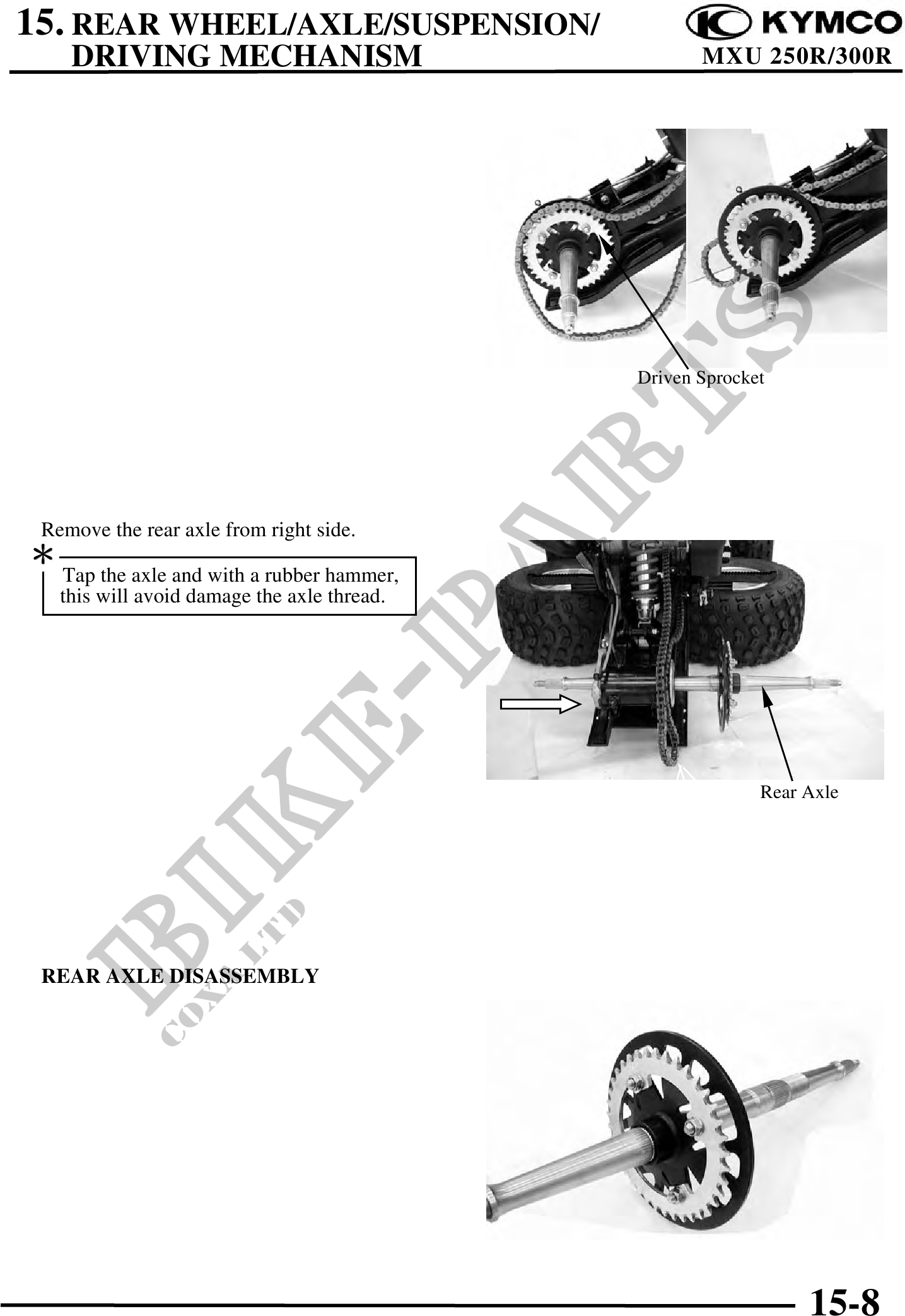

          15. REAR WHEEL/AXLE/SUSPENSION/
    DRIVING MECHANISM                               MXU 250R/300R




                                             Driven Sprocket




 Remove the rear axle from right side.

   Tap the axle and with a rubber hammer,
   this will avoid damage the axle thread.




                                                           Rear Axle




 REAR AXLE DISASSEMBLY




                                                                15-8
