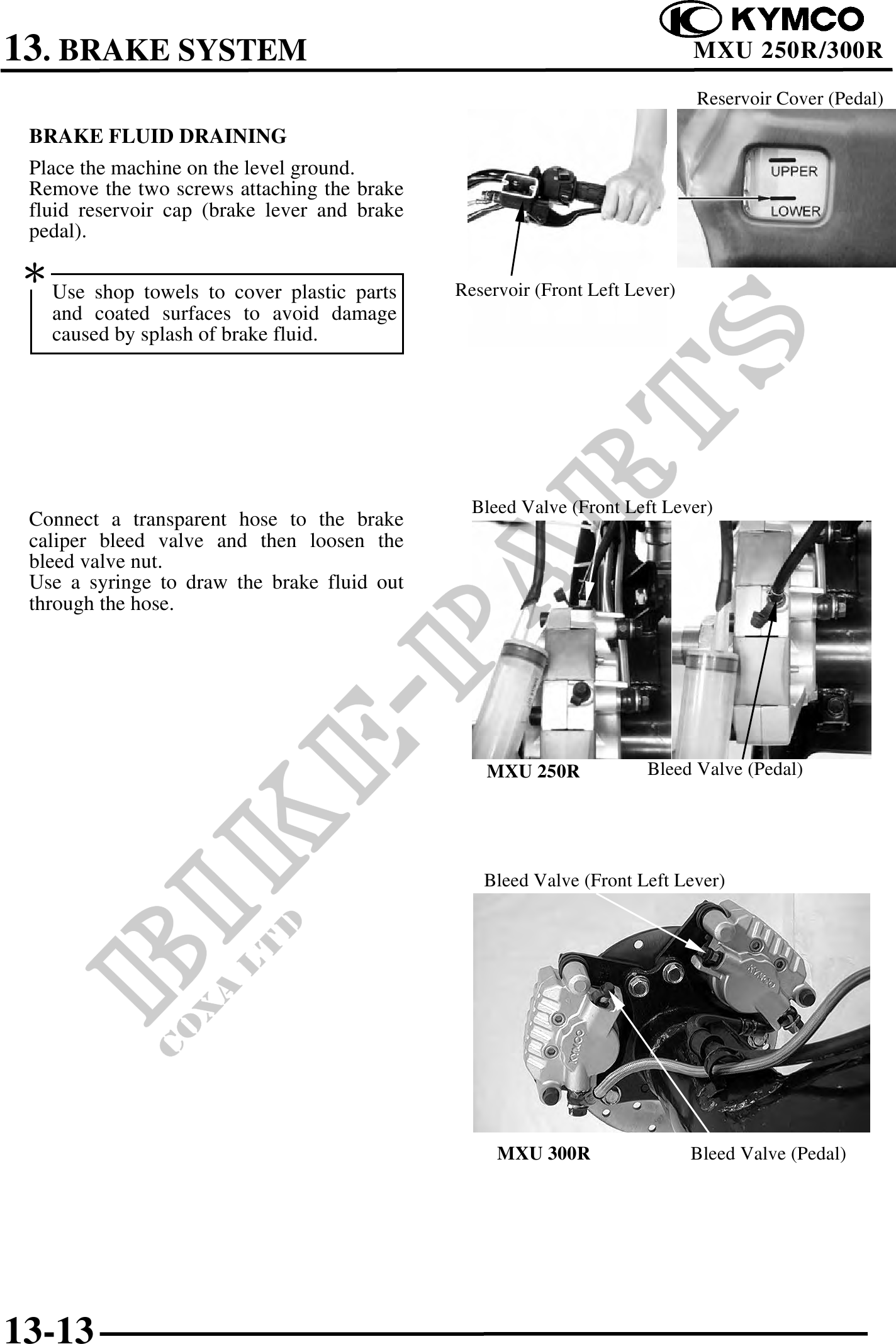

          13. BRAKE SYSTEM                                                             MXU 250R/300R
                                                                             Reservoir Cover (Pedal)
 BRAKE FLUID DRAINING
 Place the machine on the level ground.
 Remove the two screws attaching the brake
 fluid reservoir cap (brake lever and brake
 pedal).

                                              Reservoir (Front Left Lever)
   Use shop towels to cover plastic parts
   and coated surfaces to avoid damage
   caused by splash of brake fluid.




                                                Bleed Valve (Front Left Lever)
 Connect a transparent hose to the brake
 caliper bleed valve and then loosen the
 bleed valve nut.
 Use a syringe to draw the brake fluid out
 through the hose.




                                                 MXU 250R             Bleed Valve (Pedal)




                                                 Bleed Valve (Front Left Lever)




                                                   MXU 300R                  Bleed Valve (Pedal)




13-13
