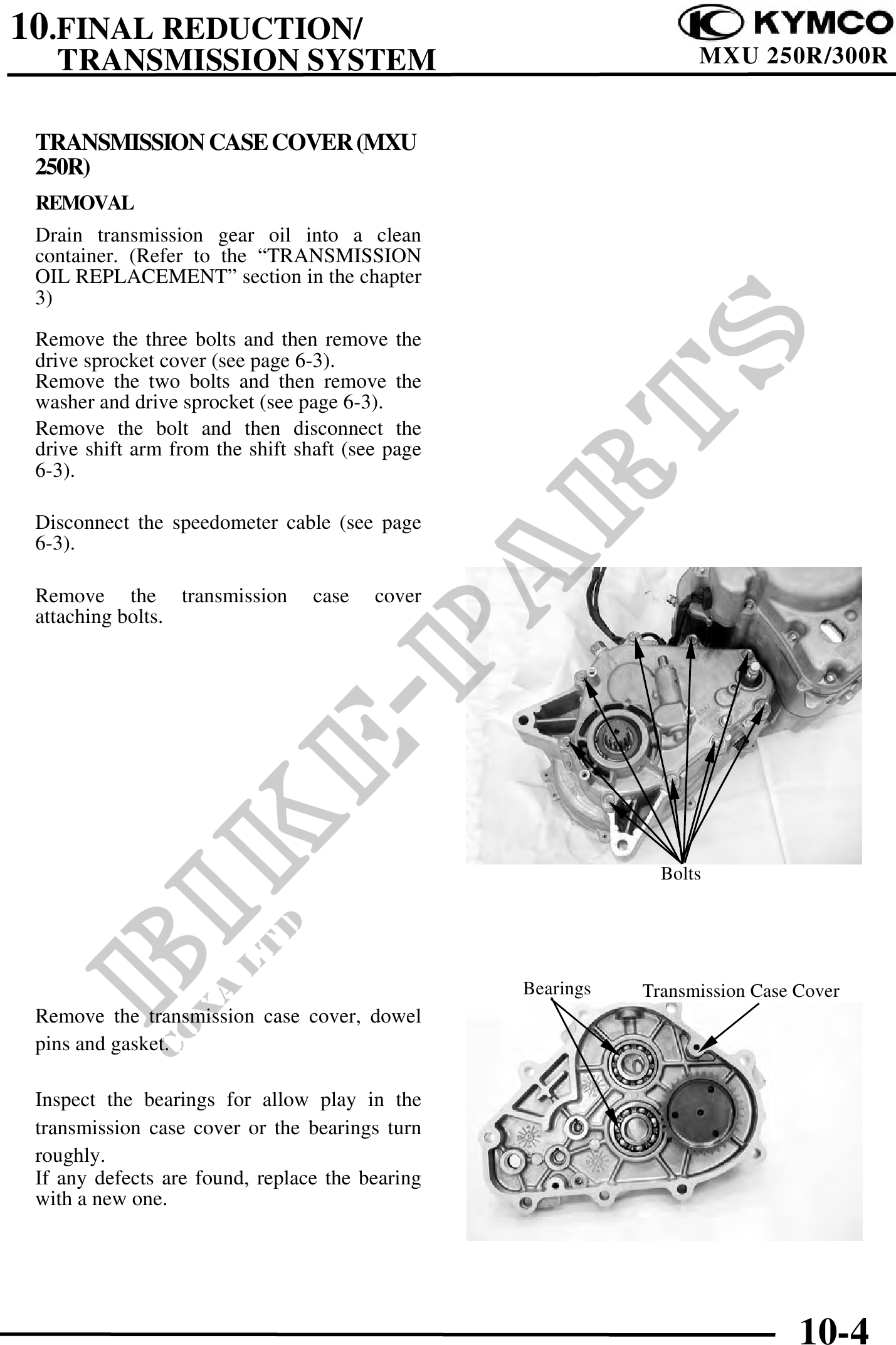

10.FINAL REDUCTION/
TRANSMISSION SYSTEM MXU 250R/300R
TRANSMISSION CASE COVER (MXU
250R)
REMOVAL
Drain transmission gear oil into a clean
container. (Refer to the "TRANSMISSION
OIL REPLACEMENT" section in the chapter
3)
Remove the three bolts and then remove the
drive sprocket cover (see page 6-3).
Remove the two bolts and then remove the
washer and drive sprocket (see page 6-3).
Remove the bolt and then disconnect the
drive shift arm from the shift shaft (see page
6-3).
Disconnect the speedometer cable (see page
6-3).
Remove the transmission case cover
attaching bolts.
Bolts
Bearings Transmission Case Cover
Remove the transmission case cover, dowel
pins and gasket.
Inspect the bearings for allow play in the
transmission case cover or the bearings turn
roughly.
If any defects are found, replace the bearing
with a new one.
10-4
