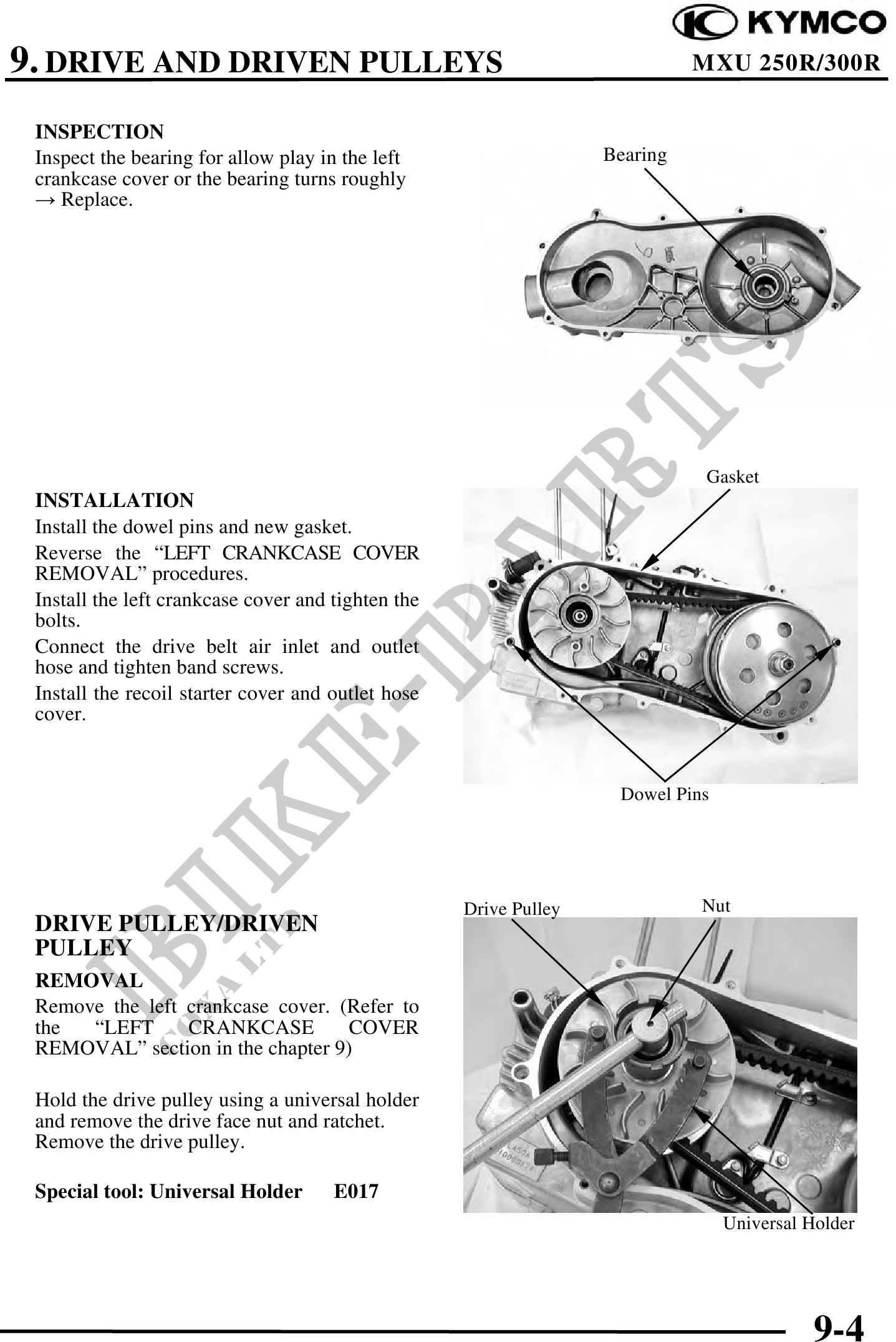

          9. DRIVE AND DRIVEN PULLEYS                                                  MXU 250R/300R

 INSPECTION
 Inspect the bearing for allow play in the left                    Bearing
 crankcase cover or the bearing turns roughly
  Replace.




                                                                             Gasket
 INSTALLATION
 Install the dowel pins and new gasket.
 Reverse the "LEFT CRANKCASE COVER
 REMOVAL" procedures.
 Install the left crankcase cover and tighten the
 bolts.
 Connect the drive belt air inlet and outlet
 hose and tighten band screws.
 Install the recoil starter cover and outlet hose
 cover.


                                                                    Dowel Pins




                                                    Drive Pulley             Nut
 DRIVE PULLEY/DRIVEN
 PULLEY
 REMOVAL
 Remove the left crankcase cover. (Refer to
 the  "LEFT      CRANKCASE         COVER
 REMOVAL" section in the chapter 9)

 Hold the drive pulley using a universal holder
 and remove the drive face nut and ratchet.
 Remove the drive pulley.

 Special tool: Universal Holder       E017
                                                                                 Universal Holder




                                                                                            9-4
