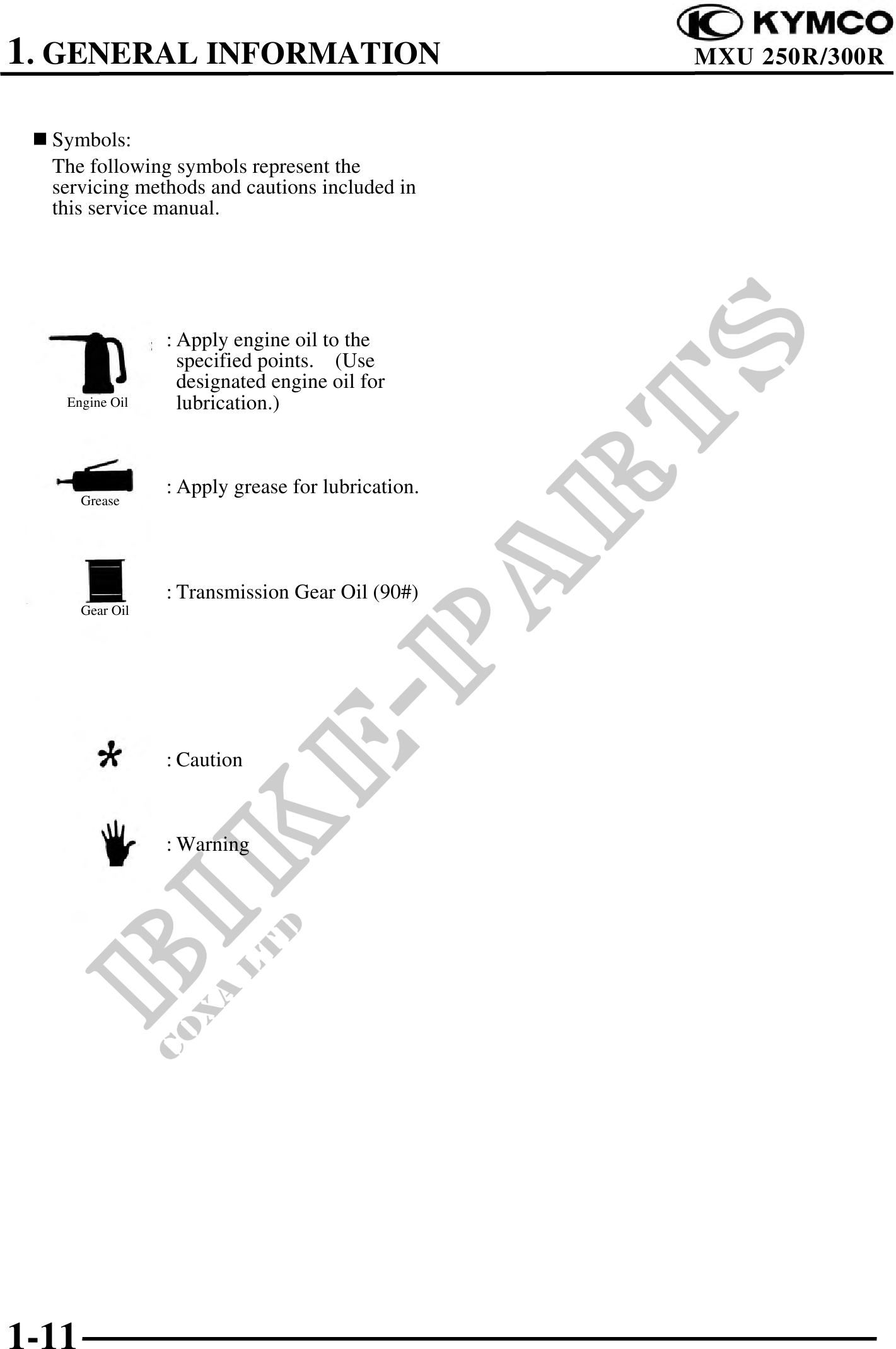

          1. GENERAL INFORMATION                              MXU 250R/300R


  Symbols:
  The following symbols represent the
  servicing methods and cautions included in
  this service manual.




                  : Apply engine oil to the
                    specified points. (Use
                    designated engine oil for
   Engine Oil       lubrication.)



                  : Apply grease for lubrication.
       Grease




                  : Transmission Gear Oil (90#)
       Gear Oil




                  : Caution



                  : Warning




1-11
