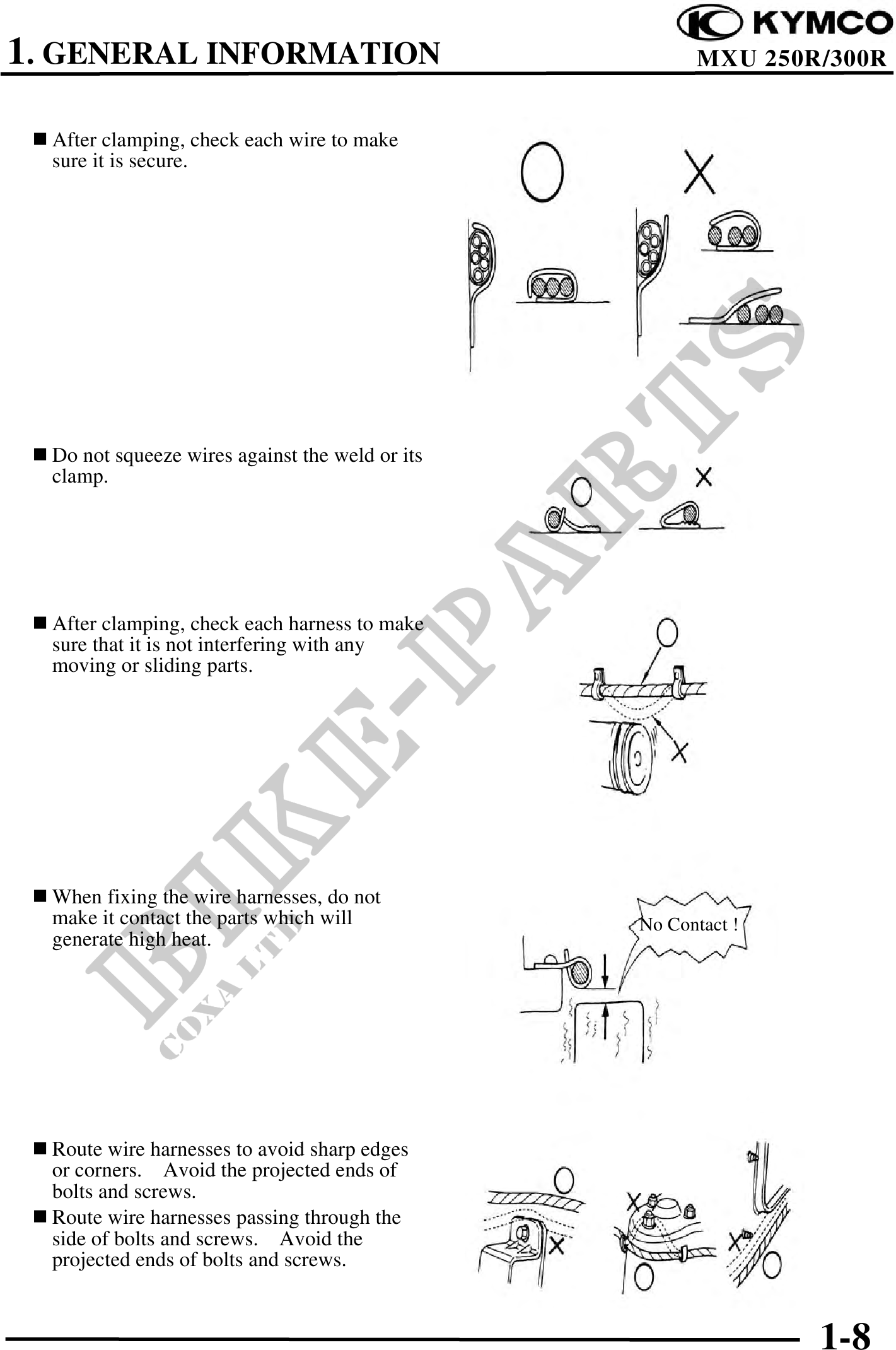

1. GENERAL INFORMATION MXU 250R/300R
After clamping, check each wire to make
sure it is secure.
Do not squeeze wires against the weld or its
clamp.
After clamping, check each harness to make
sure that it is not interfering with any
moving or sliding parts.
When fixing the wire harnesses, do not
make it contact the parts which will No Contact !
generate high heat.
Route wire harnesses to avoid sharp edges
or corners. Avoid the projected ends of
bolts and screws.
Route wire harnesses passing through the
side of bolts and screws. Avoid the
projected ends of bolts and screws.
1-8
