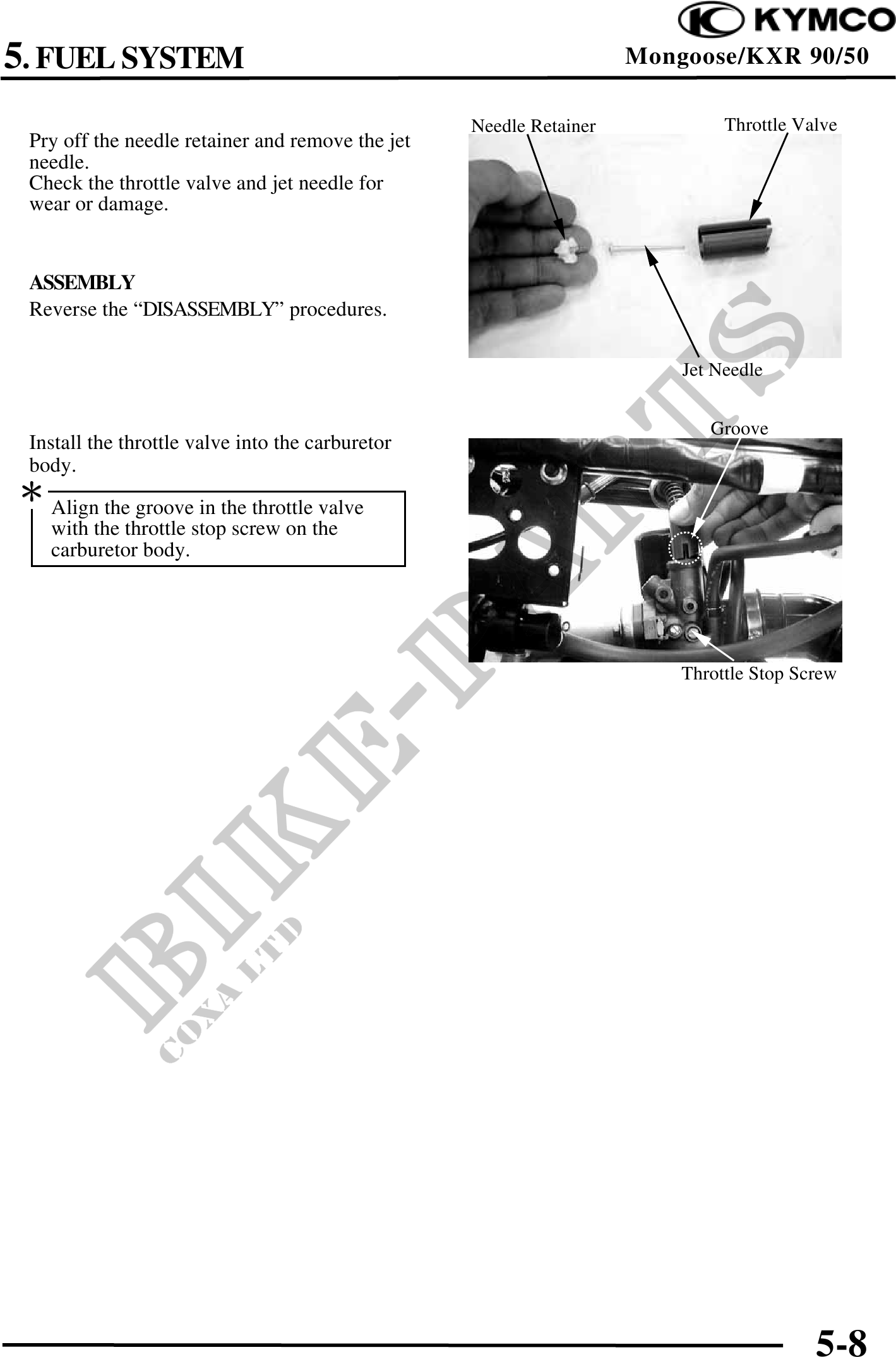

          5. FUEL SYSTEM                                                      Mongoose/KXR 90/50

                                                  Needle Retainer            Throttle Valve
 Pry off the needle retainer and remove the jet
 needle.
 Check the throttle valve and jet needle for
 wear or damage.


 ASSEMBLY
 Reverse the "DISASSEMBLY" procedures.

                                                                        Jet Needle


                                                                           Groove
 Install the throttle valve into the carburetor
 body.
 Align the groove in the throttle valve
   with the throttle stop screw on the
   carburetor body.




                                                                        Throttle Stop Screw




                                                                                        5-8
