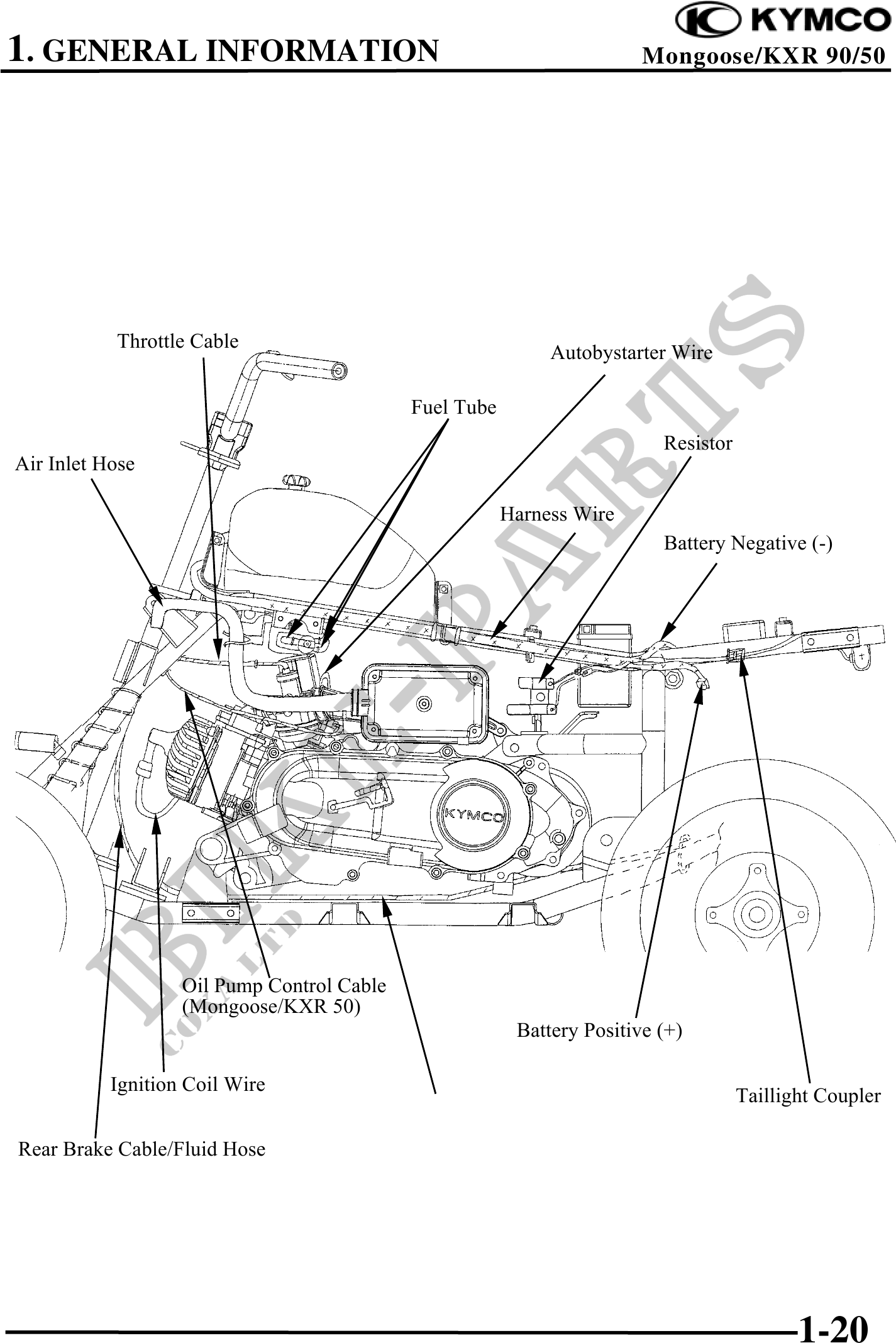

          1. GENERAL INFORMATION                                                  Mongoose/KXR 90/50




           Throttle Cable
                                                             Autobystarter Wire

                                            Fuel Tube
                                                                          Resistor
Air Inlet Hose

                                                        Harness Wire
                                                                          Battery Negative (-)




                   Oil Pump Control Cable
                   (Mongoose/KXR 50)
                                                         Battery Positive (+)

           Ignition Coil Wire
                                                                                     Taillight Coupler

Rear Brake Cable/Fluid Hose
