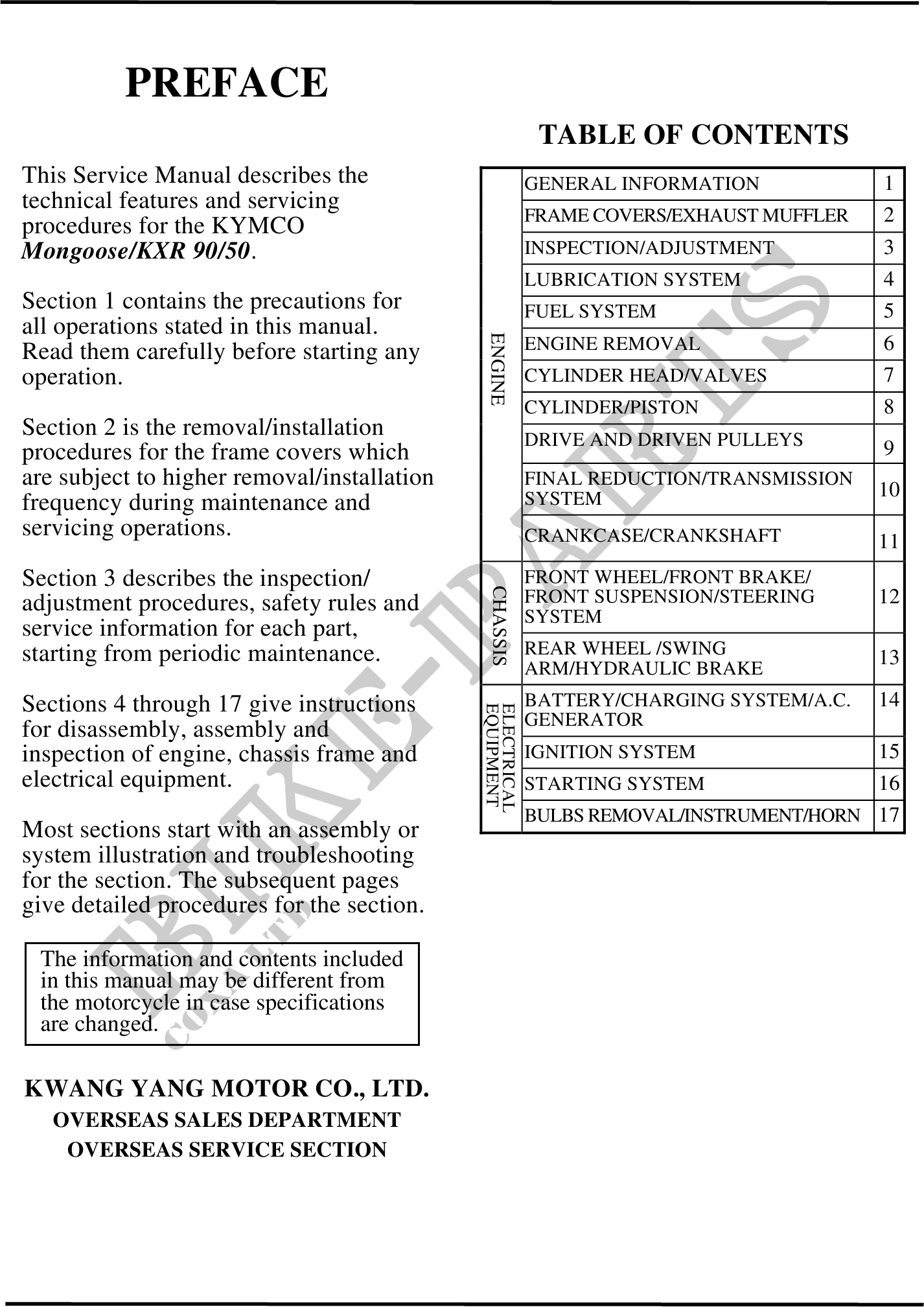

                    PREFACE
                                                           TABLE OF CONTENTS
This Service Manual describes the                         GENERAL INFORMATION            1
technical features and servicing
                                                          FRAME COVERS/EXHAUST MUFFLER   2
procedures for the KYMCO
Mongoose/KXR 90/50.                                       INSPECTION/ADJUSTMENT          3
                                                          LUBRICATION SYSTEM             4
Section 1 contains the precautions for                    FUEL SYSTEM                    5
all operations stated in this manual.



                                              ENGINE
Read them carefully before starting any                   ENGINE REMOVAL                 6
operation.                                                CYLINDER HEAD/VALVES           7
                                                          CYLINDER/PISTON                8
Section 2 is the removal/installation                     DRIVE AND DRIVEN PULLEYS
procedures for the frame covers which                                                    9
are subject to higher removal/installation                FINAL REDUCTION/TRANSMISSION
                                                                                         10
frequency during maintenance and                          SYSTEM
servicing operations.                                     CRANKCASE/CRANKSHAFT           11
Section 3 describes the inspection/                       FRONT WHEEL/FRONT BRAKE/
                                              CHASSIS




adjustment procedures, safety rules and                   FRONT SUSPENSION/STEERING      12
                                                          SYSTEM
service information for each part,
starting from periodic maintenance.                       REAR WHEEL /SWING              13
                                                          ARM/HYDRAULIC BRAKE
Sections 4 through 17 give instructions                   BATTERY/CHARGING SYSTEM/A.C.   14
                                             EQUIPMENT
                                             ELECTRICAL




                                                          GENERATOR
for disassembly, assembly and
inspection of engine, chassis frame and                   IGNITION SYSTEM               15
electrical equipment.                                     STARTING SYSTEM               16
                                                          BULBS REMOVAL/INSTRUMENT/HORN 17
Most sections start with an assembly or
system illustration and troubleshooting
for the section. The subsequent pages
give detailed procedures for the section.

 The information and contents included
 in this manual may be different from
 the motorcycle in case specifications
 are changed.

KWANG YANG MOTOR CO., LTD.
   OVERSEAS SALES DEPARTMENT
    OVERSEAS SERVICE SECTION
