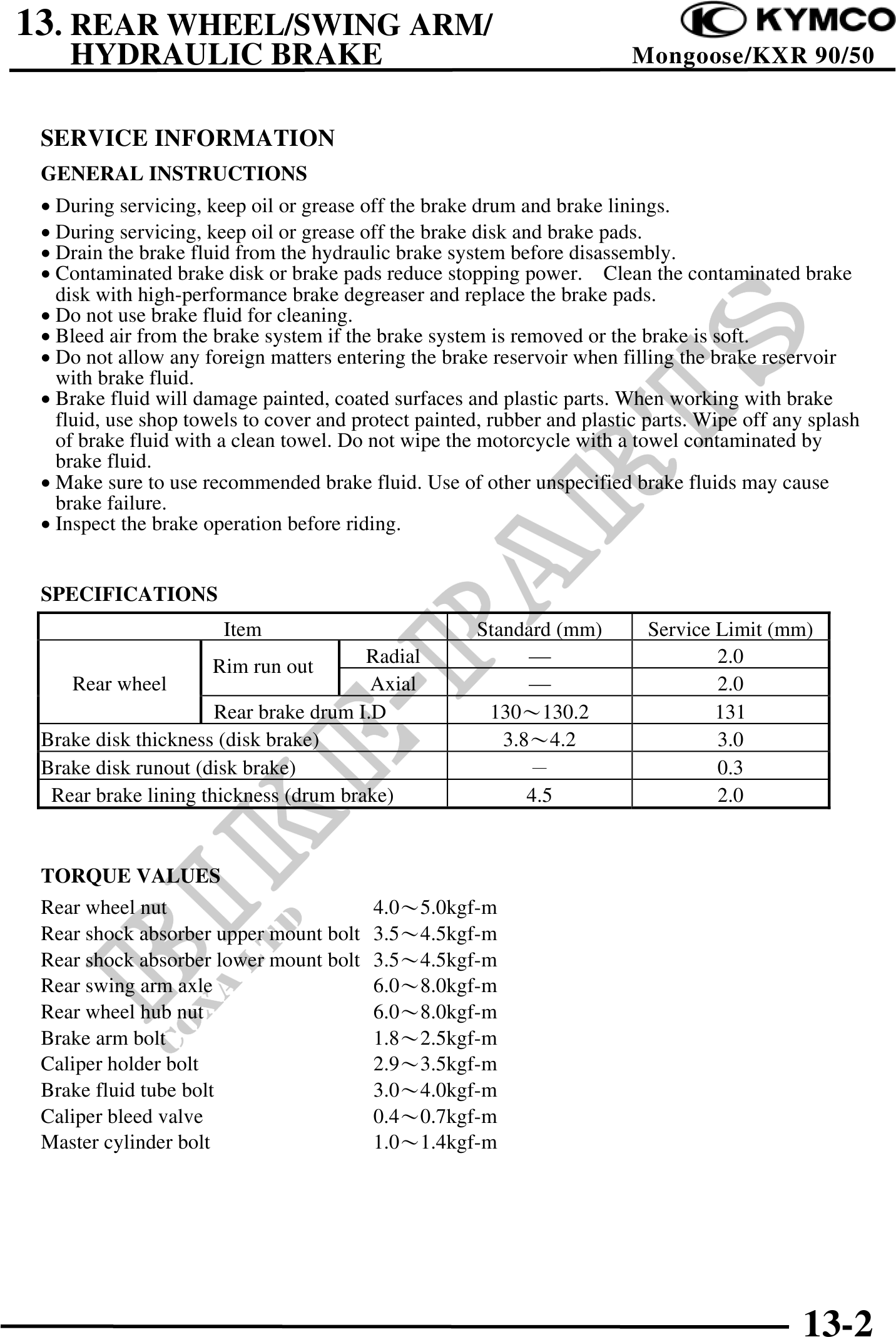

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE Mongoose/KXR 90/50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· During servicing, keep oil or grease off the brake drum and brake linings.
· During servicing, keep oil or grease off the brake disk and brake pads.
· Drain the brake fluid from the hydraulic brake system before disassembly.
· Contaminated brake disk or brake pads reduce stopping power. Clean the contaminated brake
disk with high-performance brake degreaser and replace the brake pads.
· Do not use brake fluid for cleaning.
· Bleed air from the brake system if the brake system is removed or the brake is soft.
· Do not allow any foreign matters entering the brake reservoir when filling the brake reservoir
with brake fluid.
· Brake fluid will damage painted, coated surfaces and plastic parts. When working with brake
fluid, use shop towels to cover and protect painted, rubber and plastic parts. Wipe off any splash
of brake fluid with a clean towel. Do not wipe the motorcycle with a towel contaminated by
brake fluid.
· Make sure to use recommended brake fluid. Use of other unspecified brake fluids may cause
brake failure.
· Inspect the brake operation before riding.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Radial 2.0
Rim run out
Rear wheel Axial 2.0
Rear brake drum I.D 130130.2 131
Brake disk thickness (disk brake) 3.84.2 3.0
Brake disk runout (disk brake) 0.3
Rear brake lining thickness (drum brake) 4.5 2.0
TORQUE VALUES
Rear wheel nut 4.05.0kgf-m
Rear shock absorber upper mount bolt 3.54.5kgf-m
Rear shock absorber lower mount bolt 3.54.5kgf-m
Rear swing arm axle 6.08.0kgf-m
Rear wheel hub nut 6.08.0kgf-m
Brake arm bolt 1.82.5kgf-m
Caliper holder bolt 2.93.5kgf-m
Brake fluid tube bolt 3.04.0kgf-m
Caliper bleed valve 0.40.7kgf-m
Master cylinder bolt 1.01.4kgf-m
13-2
