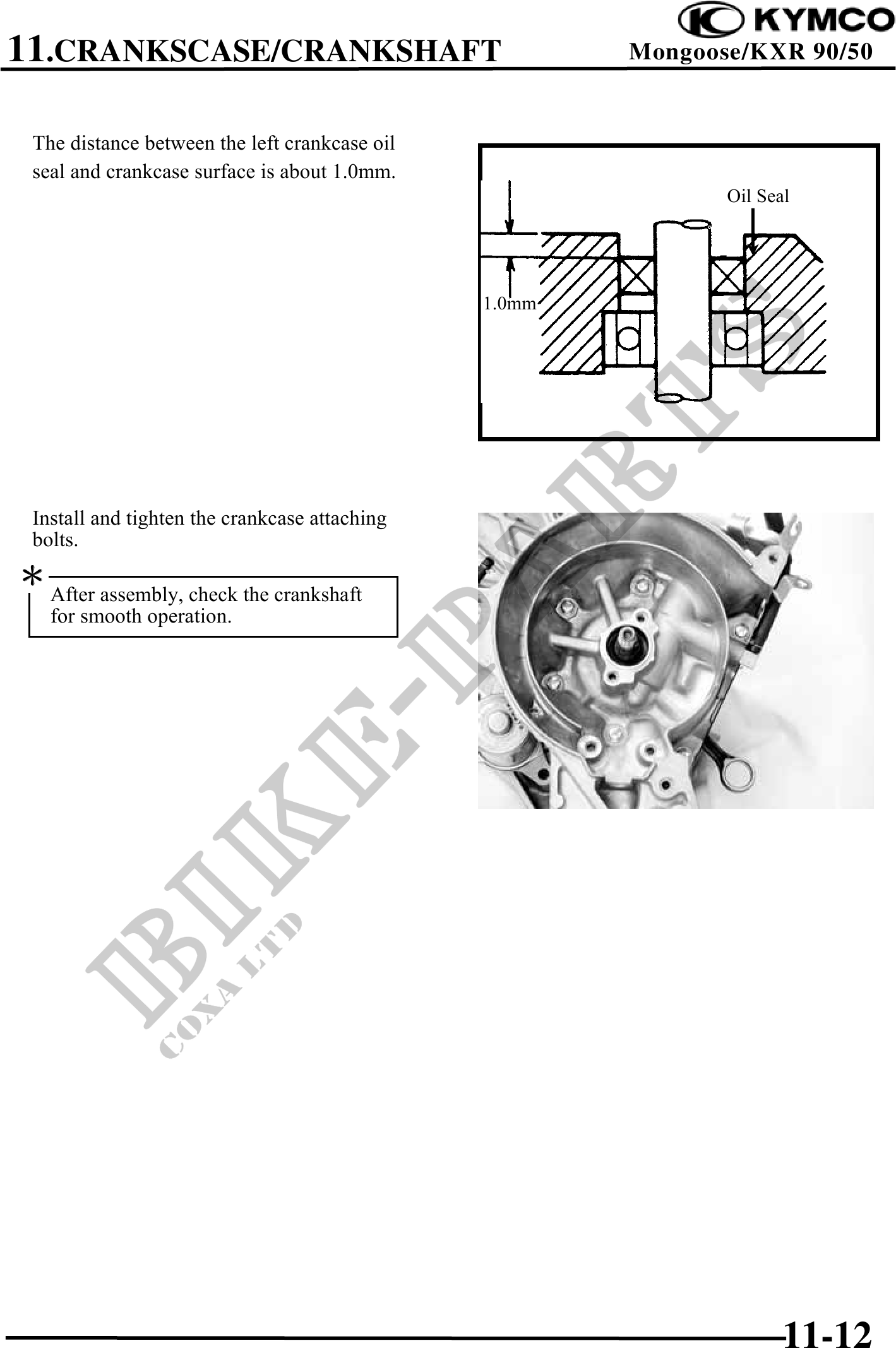

          11.CRANKSCASE/CRANKSHAFT                               Mongoose/KXR 90/50


 The distance between the left crankcase oil
 seal and crankcase surface is about 1.0mm.
                                                              Oil Seal




                                               1.0mm




 Install and tighten the crankcase attaching
 bolts.

   After assembly, check the crankshaft
   for smooth operation.




                                                                     11-12
