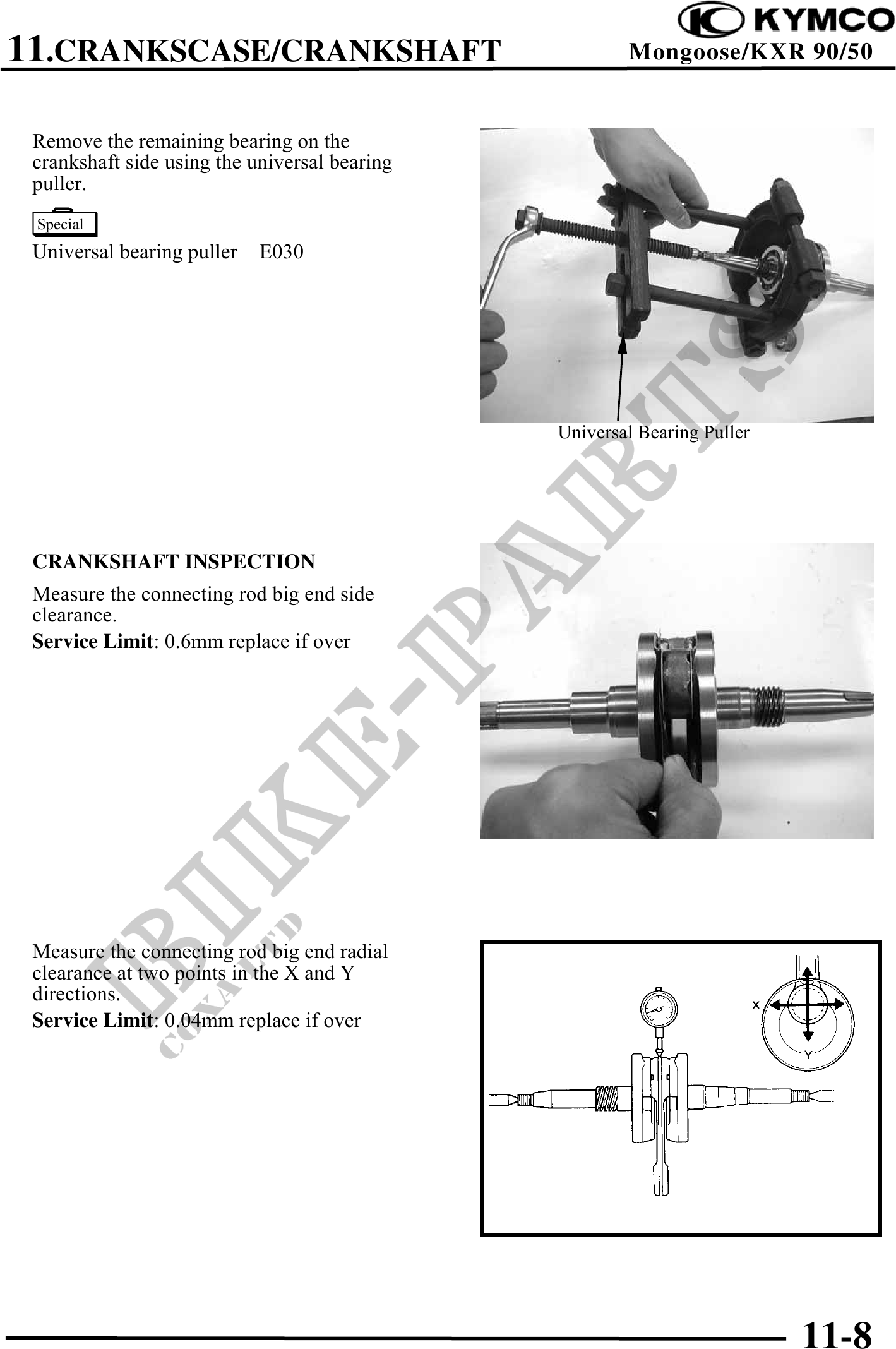

          11.CRANKSCASE/CRANKSHAFT                               Mongoose/KXR 90/50


 Remove the remaining bearing on the
 crankshaft side using the universal bearing
 puller.
 Special
 Universal bearing puller   E030




                                               Universal Bearing Puller




 CRANKSHAFT INSPECTION
 Measure the connecting rod big end side
 clearance.
 Service Limit: 0.6mm replace if over




 Measure the connecting rod big end radial
 clearance at two points in the X and Y
 directions.
 Service Limit: 0.04mm replace if over
