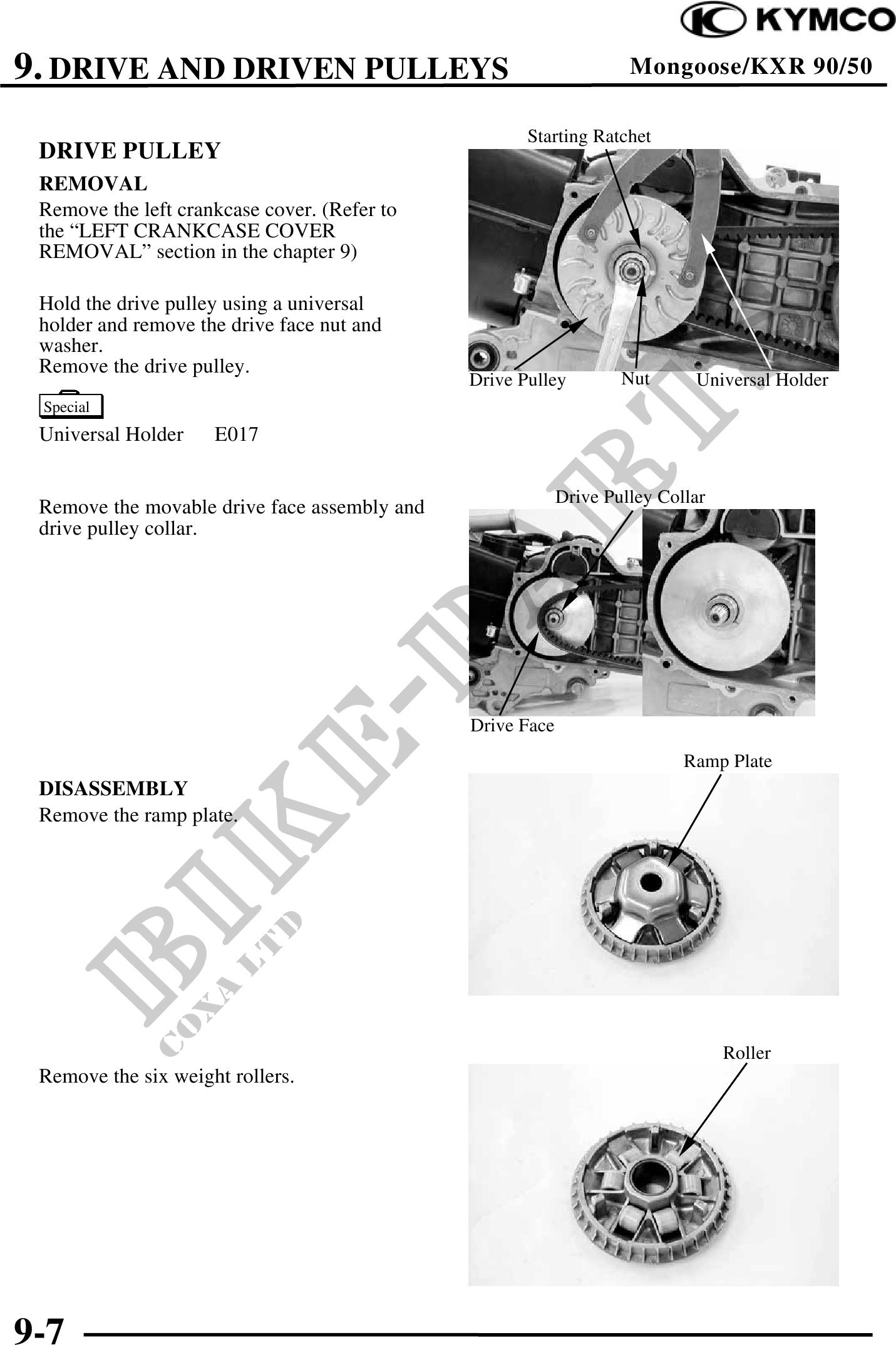

          9. DRIVE AND DRIVEN PULLEYS                                         Mongoose/KXR 90/50

                                                     Starting Ratchet
 DRIVE PULLEY
 REMOVAL
 Remove the left crankcase cover. (Refer to
 the "LEFT CRANKCASE COVER
 REMOVAL" section in the chapter 9)

 Hold the drive pulley using a universal
 holder and remove the drive face nut and
 washer.
 Remove the drive pulley.
                                              Drive Pulley         Nut      Universal Holder
 Special
 Universal Holder    E017

                                                           Drive Pulley Collar
 Remove the movable drive face assembly and
 drive pulley collar.




                                              Drive Face
                                                                           Ramp Plate
 DISASSEMBLY
 Remove the ramp plate.




                                                                                 Roller
 Remove the six weight rollers.




9-7
