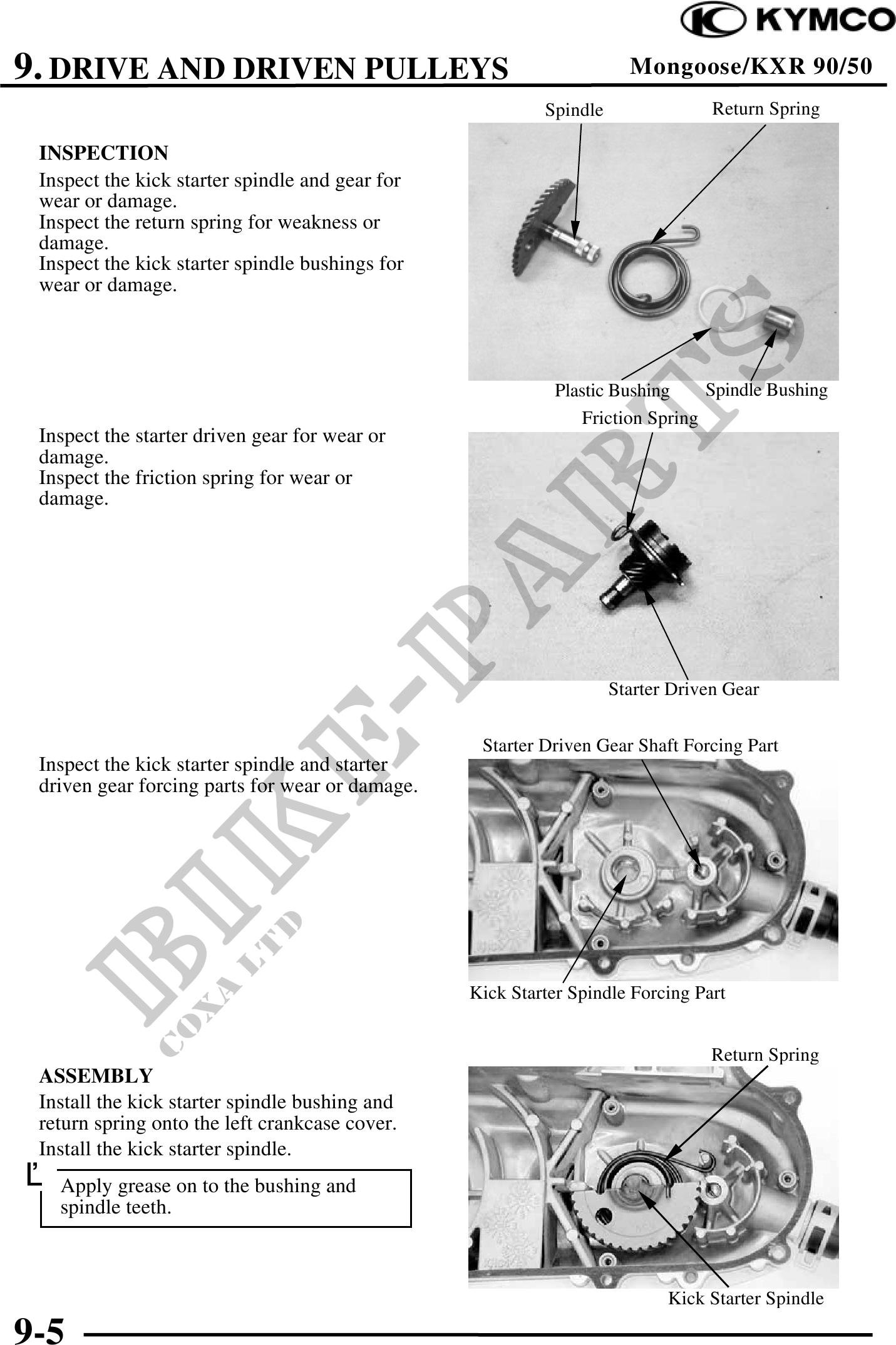

          9. DRIVE AND DRIVEN PULLEYS                                           Mongoose/KXR 90/50
                                                          Spindle                Return Spring

 INSPECTION
 Inspect the kick starter spindle and gear for
 wear or damage.
 Inspect the return spring for weakness or
 damage.
 Inspect the kick starter spindle bushings for
 wear or damage.




                                                            Plastic Bushing    Spindle Bushing
                                                               Friction Spring
 Inspect the starter driven gear for wear or
 damage.
 Inspect the friction spring for wear or
 damage.




                                                                    Starter Driven Gear

                                                  Starter Driven Gear Shaft Forcing Part
 Inspect the kick starter spindle and starter
 driven gear forcing parts for wear or damage.




                                                 Kick Starter Spindle Forcing Part


                                                                                Return Spring
 ASSEMBLY
 Install the kick starter spindle bushing and
 return spring onto the left crankcase cover.
 Install the kick starter spindle.
 Apply grease on to the bushing and
   spindle teeth.



                                                                           Kick Starter Spindle

9-5
