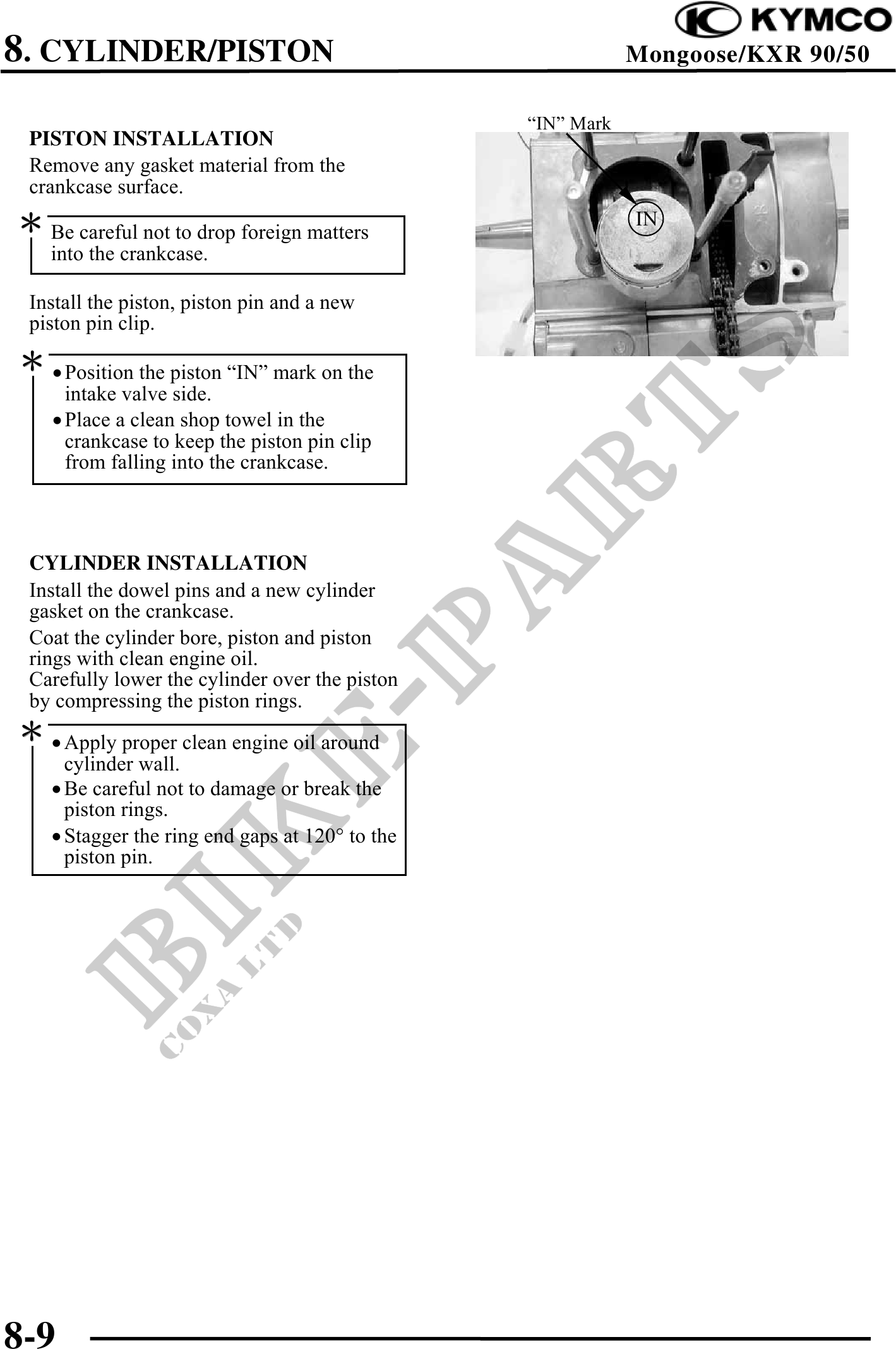

8. CYLINDER/PISTON Mongoose/KXR 90/50
"IN" Mark
PISTON INSTALLATION
Remove any gasket material from the
crankcase surface.
Be careful not to drop foreign matters IN
into the crankcase.
Install the piston, piston pin and a new
piston pin clip.
· Position the piston "IN" mark on the
intake valve side.
· Place a clean shop towel in the
crankcase to keep the piston pin clip
from falling into the crankcase.
CYLINDER INSTALLATION
Install the dowel pins and a new cylinder
gasket on the crankcase.
Coat the cylinder bore, piston and piston
rings with clean engine oil.
Carefully lower the cylinder over the piston
by compressing the piston rings.
· Apply proper clean engine oil around
cylinder wall.
· Be careful not to damage or break the
piston rings.
· Stagger the ring end gaps at 120° to the
piston pin.
8-9
