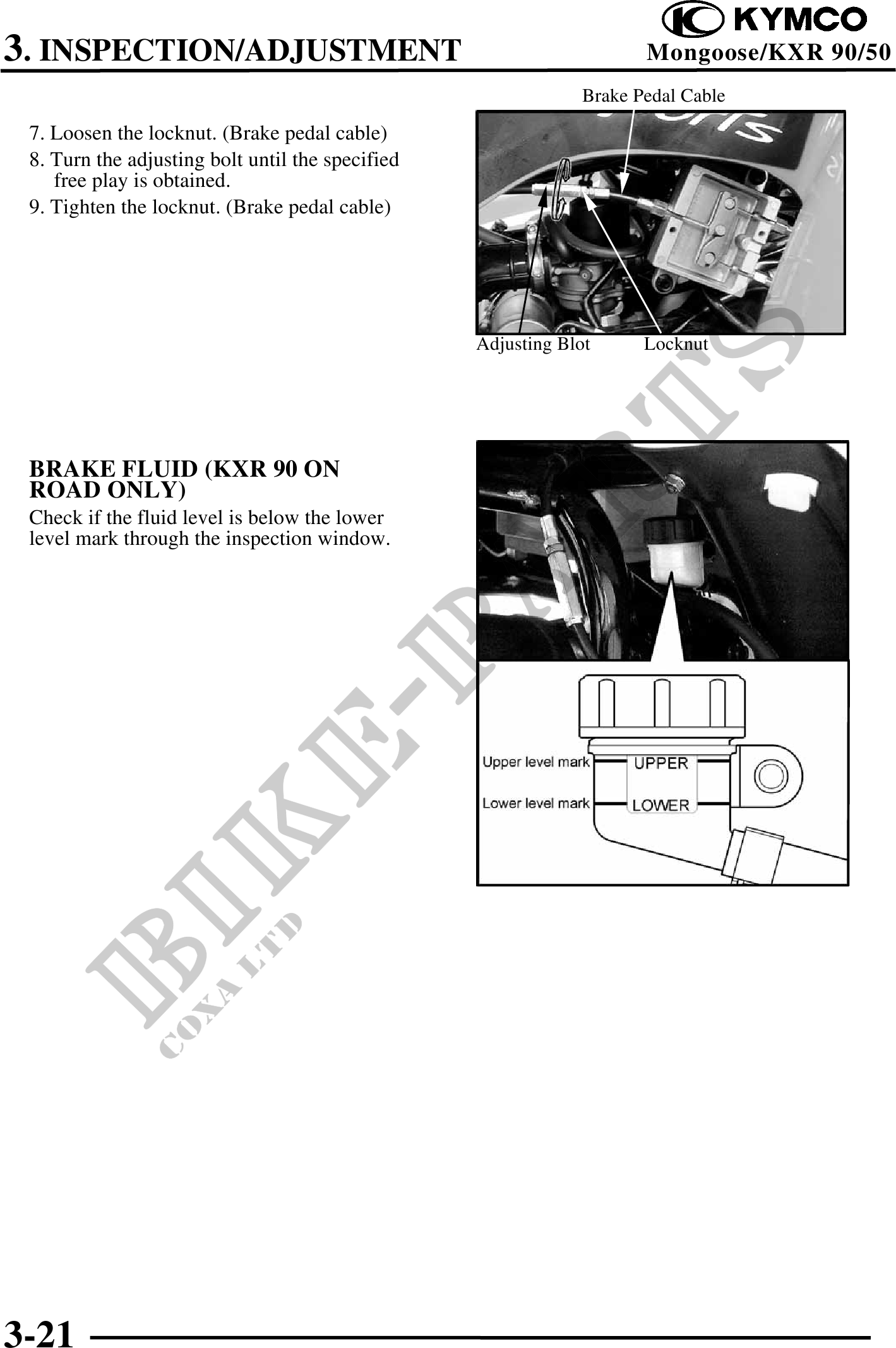

          3. INSPECTION/ADJUSTMENT                                             Mongoose/KXR 90/50
                                                              Brake Pedal Cable
 7. Loosen the locknut. (Brake pedal cable)
 8. Turn the adjusting bolt until the specified
    free play is obtained.
 9. Tighten the locknut. (Brake pedal cable)




                                                  Adjusting Blot     Locknut




 BRAKE FLUID (KXR 90 ON
 ROAD ONLY)
 Check if the fluid level is below the lower
 level mark through the inspection window.




3-21
