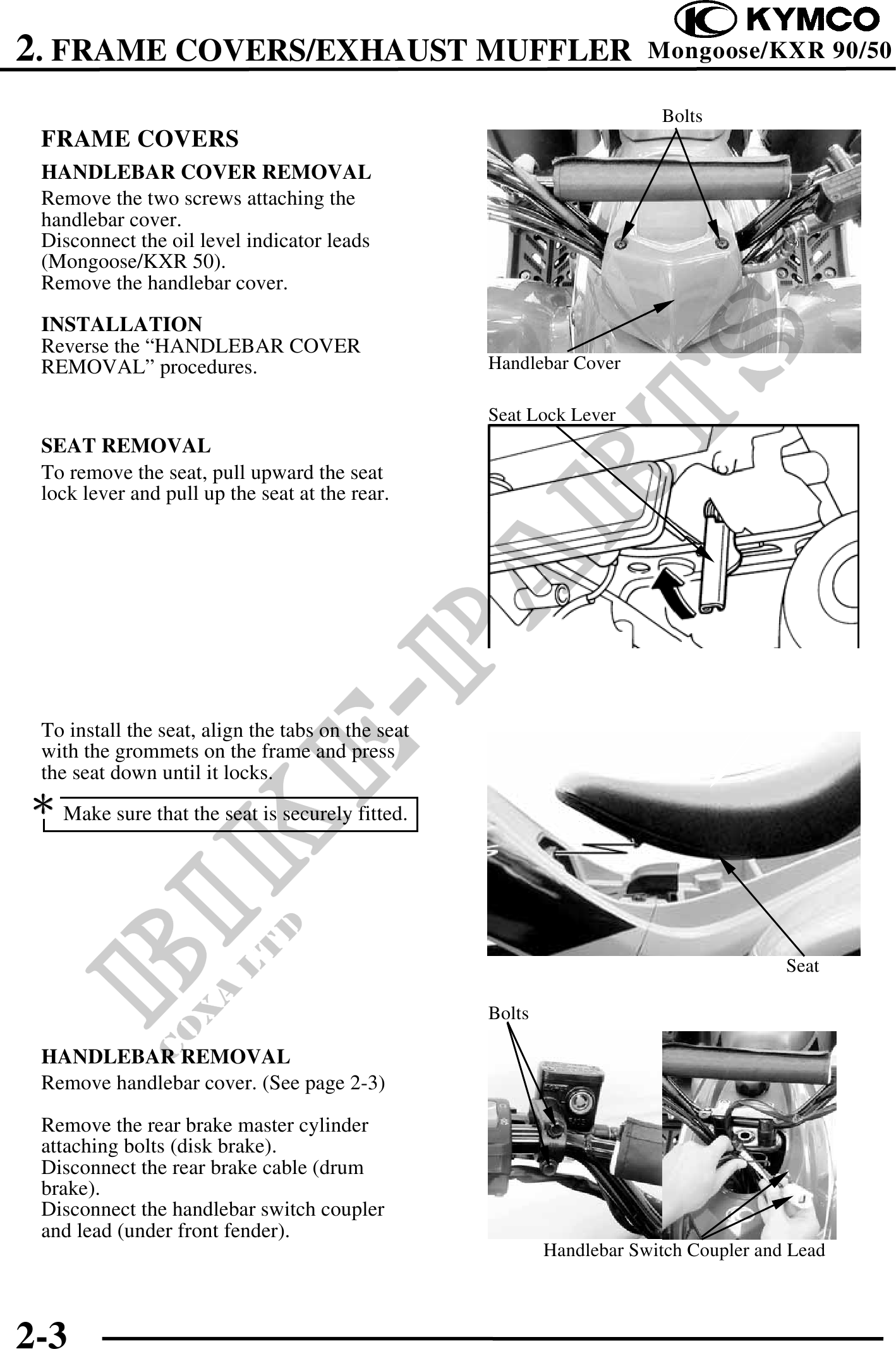

2. FRAME COVERS/EXHAUST MUFFLER Mongoose/KXR 90/50 Bolts FRAME COVERS HANDLEBAR COVER REMOVAL Remove the two screws attaching the handlebar cover. Disconnect the oil level indicator leads (Mongoose/KXR 50). Remove the handlebar cover. INSTALLATION Reverse the "HANDLEBAR COVER REMOVAL" procedures. Handlebar Cover Seat Lock Lever SEAT REMOVAL To remove the seat, pull upward the seat lock lever and pull up the seat at the rear. To install the seat, align the tabs on the seat with the grommets on the frame and press the seat down until it locks. Make sure that the seat is securely fitted. Seat Bolts HANDLEBAR REMOVAL Remove handlebar cover. (See page 2-3) Remove the rear brake master cylinder attaching bolts (disk brake). Disconnect the rear brake cable (drum brake). Disconnect the handlebar switch coupler and lead (under front fender). Handlebar Switch Coupler and Lead 2-3
