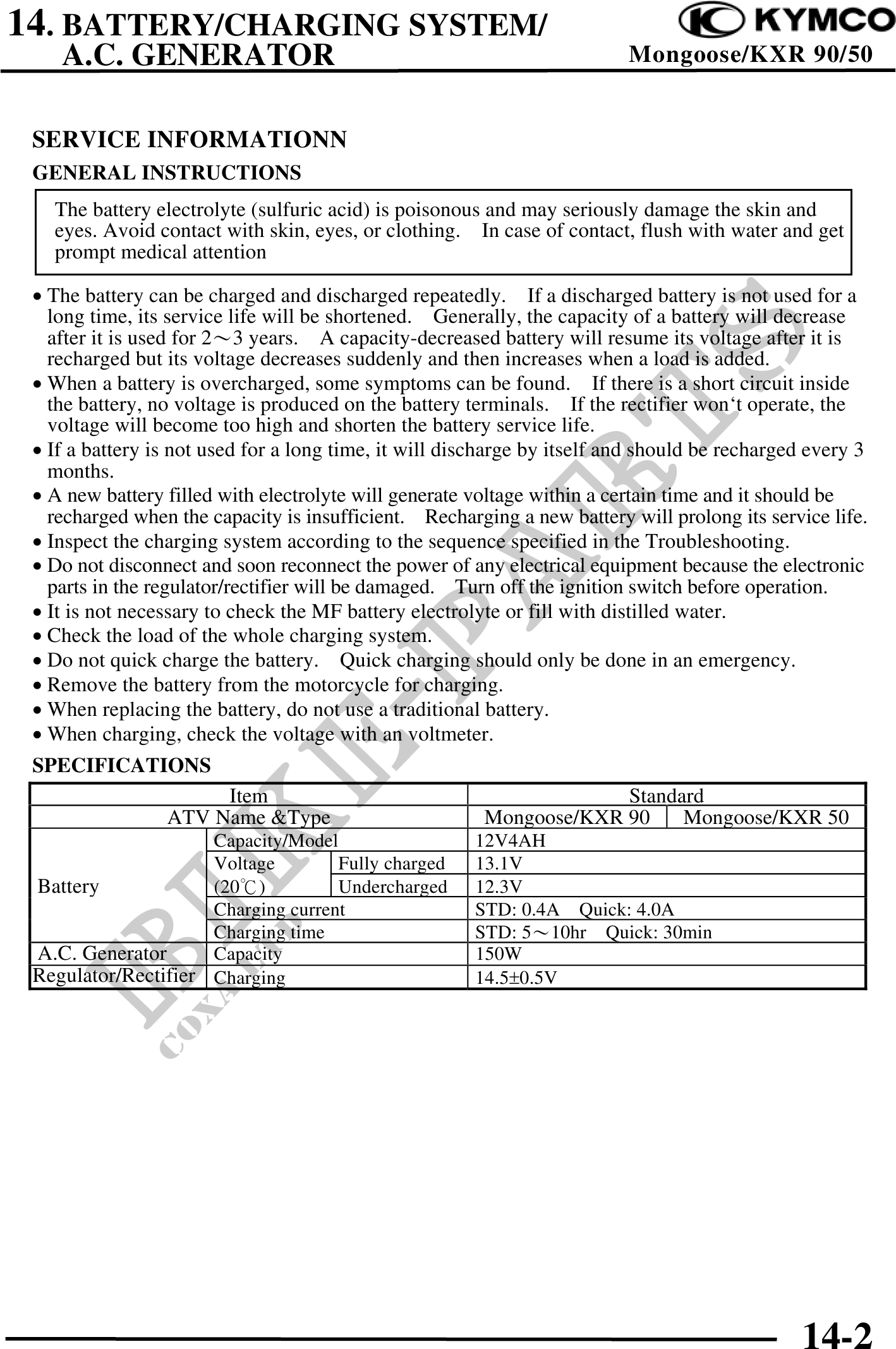

          14. BATTERY/CHARGING SYSTEM/
    A.C. GENERATOR                                                        Mongoose/KXR 90/50


 SERVICE INFORMATIONN
 GENERAL INSTRUCTIONS
   The battery electrolyte (sulfuric acid) is poisonous and may seriously damage the skin and
   eyes. Avoid contact with skin, eyes, or clothing. In case of contact, flush with water and get
   prompt medical attention

 · The battery can be charged and discharged repeatedly. If a discharged battery is not used for a
   long time, its service life will be shortened. Generally, the capacity of a battery will decrease
   after it is used for 23 years. A capacity-decreased battery will resume its voltage after it is
   recharged but its voltage decreases suddenly and then increases when a load is added.
 · When a battery is overcharged, some symptoms can be found. If there is a short circuit inside
   the battery, no voltage is produced on the battery terminals. If the rectifier won`t operate, the
   voltage will become too high and shorten the battery service life.
 · If a battery is not used for a long time, it will discharge by itself and should be recharged every 3
   months.
 · A new battery filled with electrolyte will generate voltage within a certain time and it should be
   recharged when the capacity is insufficient. Recharging a new battery will prolong its service life.
 · Inspect the charging system according to the sequence specified in the Troubleshooting.
 · Do not disconnect and soon reconnect the power of any electrical equipment because the electronic
   parts in the regulator/rectifier will be damaged. Turn off the ignition switch before operation.
 · It is not necessary to check the MF battery electrolyte or fill with distilled water.
 · Check the load of the whole charging system.
 · Do not quick charge the battery. Quick charging should only be done in an emergency.
 · Remove the battery from the motorcycle for charging.
 · When replacing the battery, do not use a traditional battery.
 · When charging, check the voltage with an voltmeter.
 SPECIFICATIONS
                           Item                                              Standard
                   ATV Name &Type                          Mongoose/KXR 90         Mongoose/KXR 50
                     Capacity/Model                    12V4AH
                     Voltage        Fully charged      13.1V
 Battery             (20)           Undercharged       12.3V
                     Charging current                  STD: 0.4A Quick: 4.0A
                     Charging time                     STD: 510hr Quick: 30min
 A.C. Generator      Capacity                          150W
 Regulator/Rectifier Charging                          14.50.5V




                                                                                               14-2
