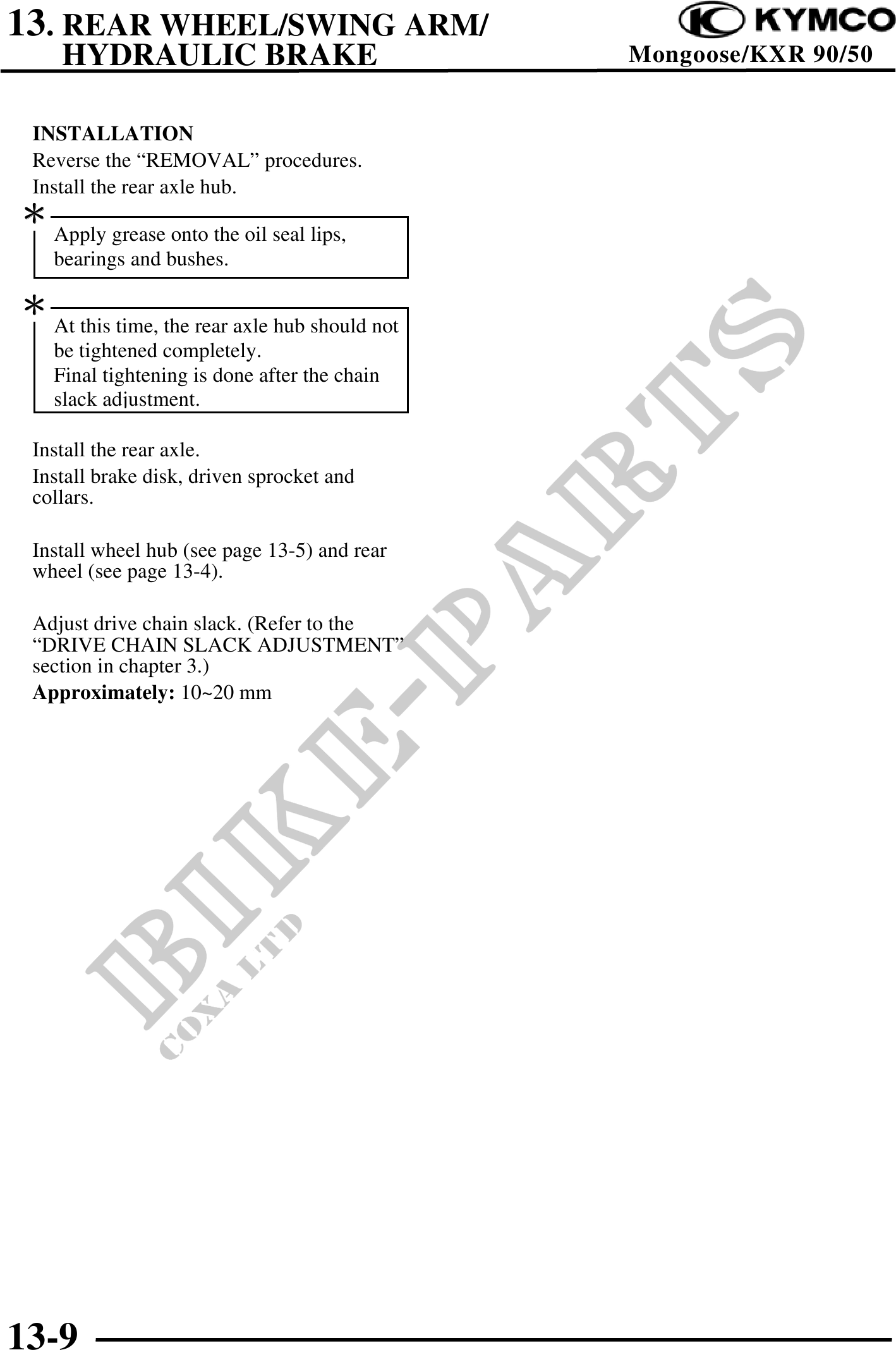

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE Mongoose/KXR 90/50
INSTALLATION
Reverse the "REMOVAL" procedures.
Install the rear axle hub.
Apply grease onto the oil seal lips,
bearings and bushes.
At this time, the rear axle hub should not
be tightened completely.
Final tightening is done after the chain
slack adjustment.
Install the rear axle.
Install brake disk, driven sprocket and
collars.
Install wheel hub (see page 13-5) and rear
wheel (see page 13-4).
Adjust drive chain slack. (Refer to the
"DRIVE CHAIN SLACK ADJUSTMENT"
section in chapter 3.)
Approximately: 10~20 mm
13-9
