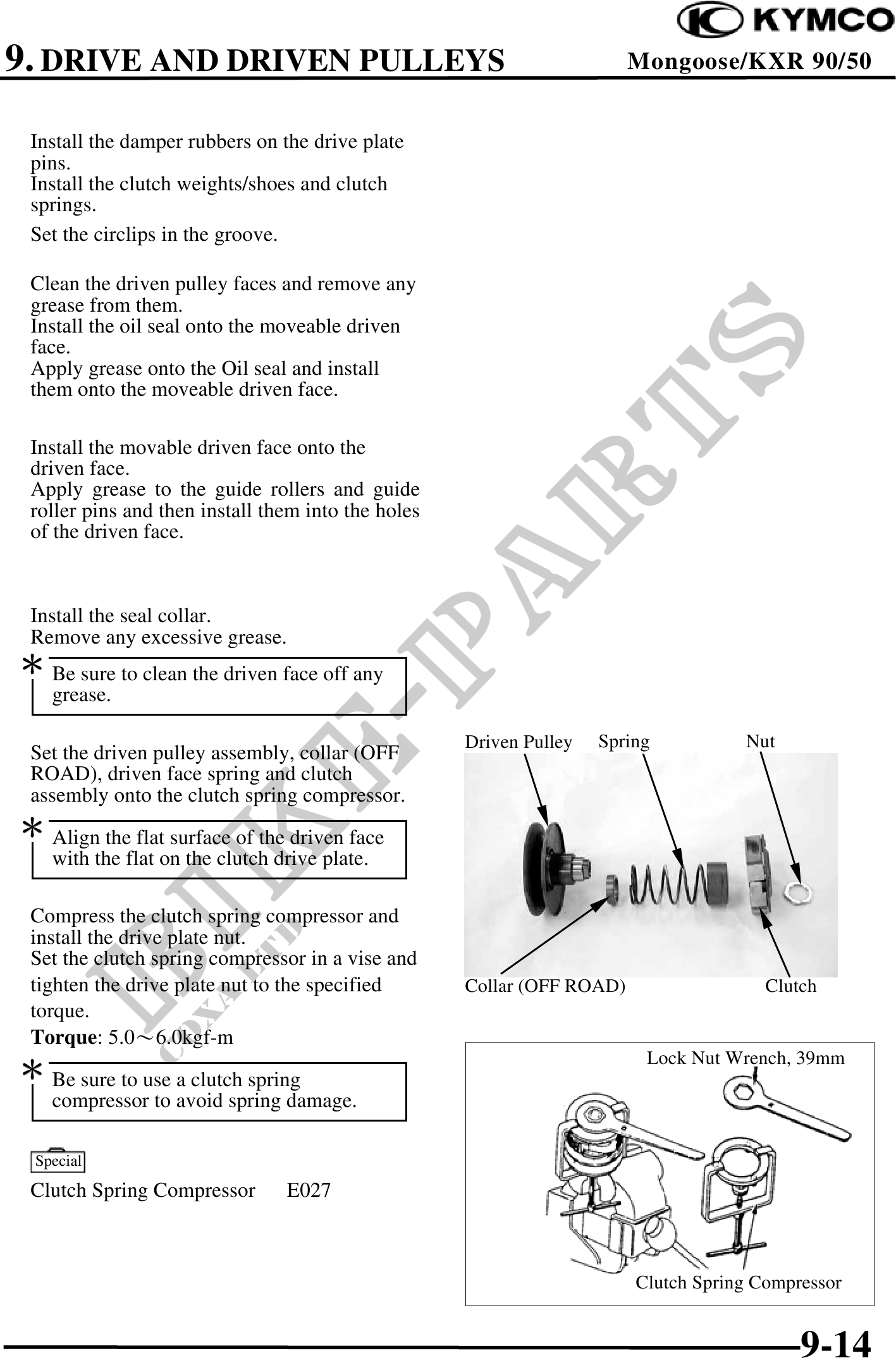

9. DRIVE AND DRIVEN PULLEYS Mongoose/KXR 90/50 Install the damper rubbers on the drive plate pins. Install the clutch weights/shoes and clutch springs. Set the circlips in the groove. Clean the driven pulley faces and remove any grease from them. Install the oil seal onto the moveable driven face. Apply grease onto the Oil seal and install them onto the moveable driven face. Install the movable driven face onto the driven face. Apply grease to the guide rollers and guide roller pins and then install them into the holes of the driven face. Install the seal collar. Remove any excessive grease. Be sure to clean the driven face off any grease. Driven Pulley Spring Nut Set the driven pulley assembly, collar (OFF ROAD), driven face spring and clutch assembly onto the clutch spring compressor. Align the flat surface of the driven face with the flat on the clutch drive plate. Compress the clutch spring compressor and install the drive plate nut. Set the clutch spring compressor in a vise and tighten the drive plate nut to the specified Collar (OFF ROAD) Clutch torque. Torque: 5.06.0kgf-m Lock Nut Wrench, 39mm Be sure to use a clutch spring compressor to avoid spring damage. Special Clutch Spring Compressor E027 Clutch Spring Compressor 9-14
