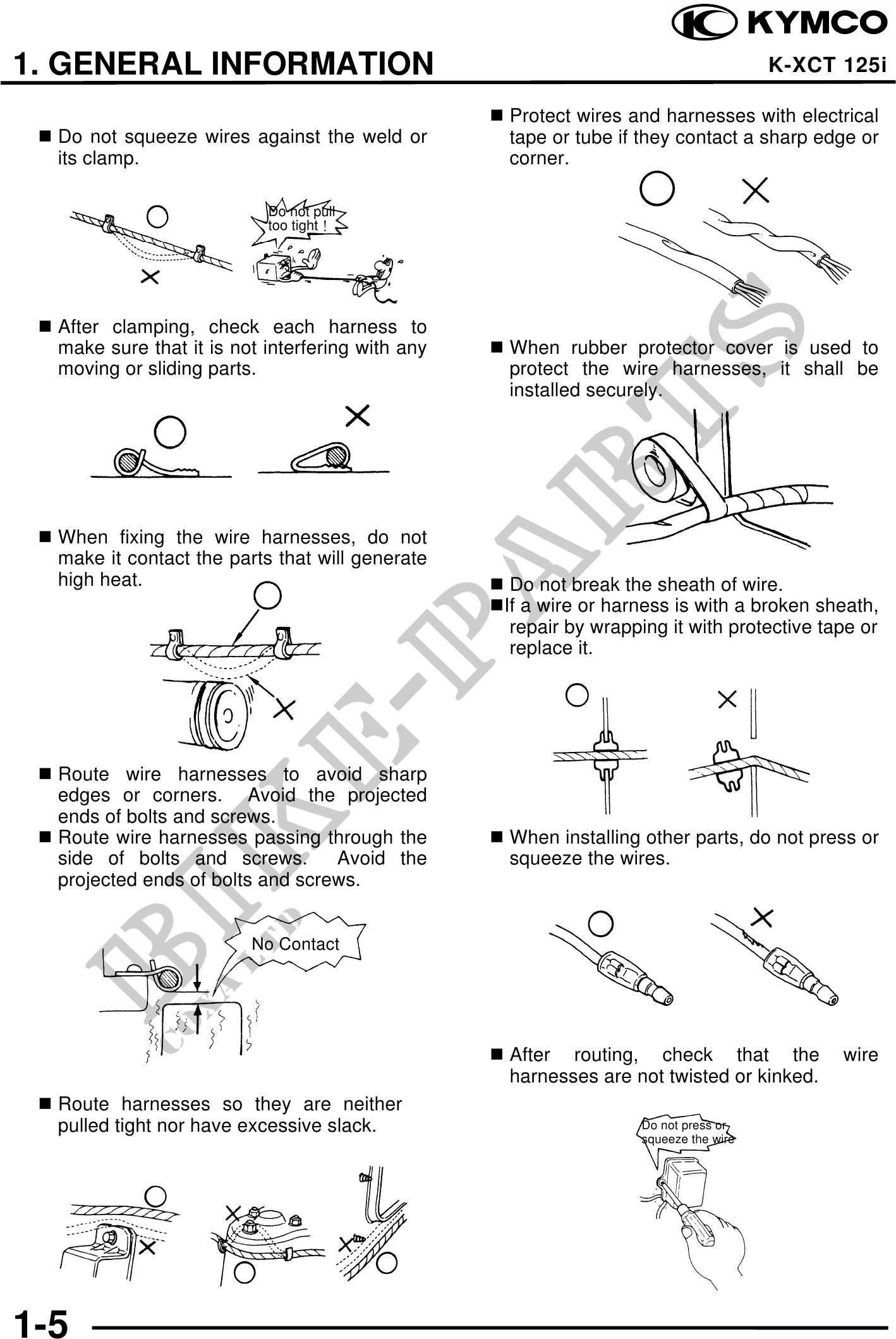

1. GENERAL INFORMATION K-XCT 125i
Protect wires and harnesses with electrical
Do not squeeze wires against the weld or tape or tube if they contact a sharp edge or
its clamp. corner.
Do not pull
too tight
After clamping, check each harness to
make sure that it is not interfering with any When rubber protector cover is used to
moving or sliding parts. protect the wire harnesses, it shall be
installed securely.
When fixing the wire harnesses, do not
make it contact the parts that will generate
high heat. Do not break the sheath of wire.
If a wire or harness is with a broken sheath,
repair by wrapping it with protective tape or
replace it.
Route wire harnesses to avoid sharp
edges or corners. Avoid the projected
ends of bolts and screws.
Route wire harnesses passing through the When installing other parts, do not press or
side of bolts and screws. Avoid the squeeze the wires.
projected ends of bolts and screws.
No Contact
After routing, check that the wire
harnesses are not twisted or kinked.
Route harnesses so they are neither
pulled tight nor have excessive slack. Do not press or
squeeze the wire
1-5
