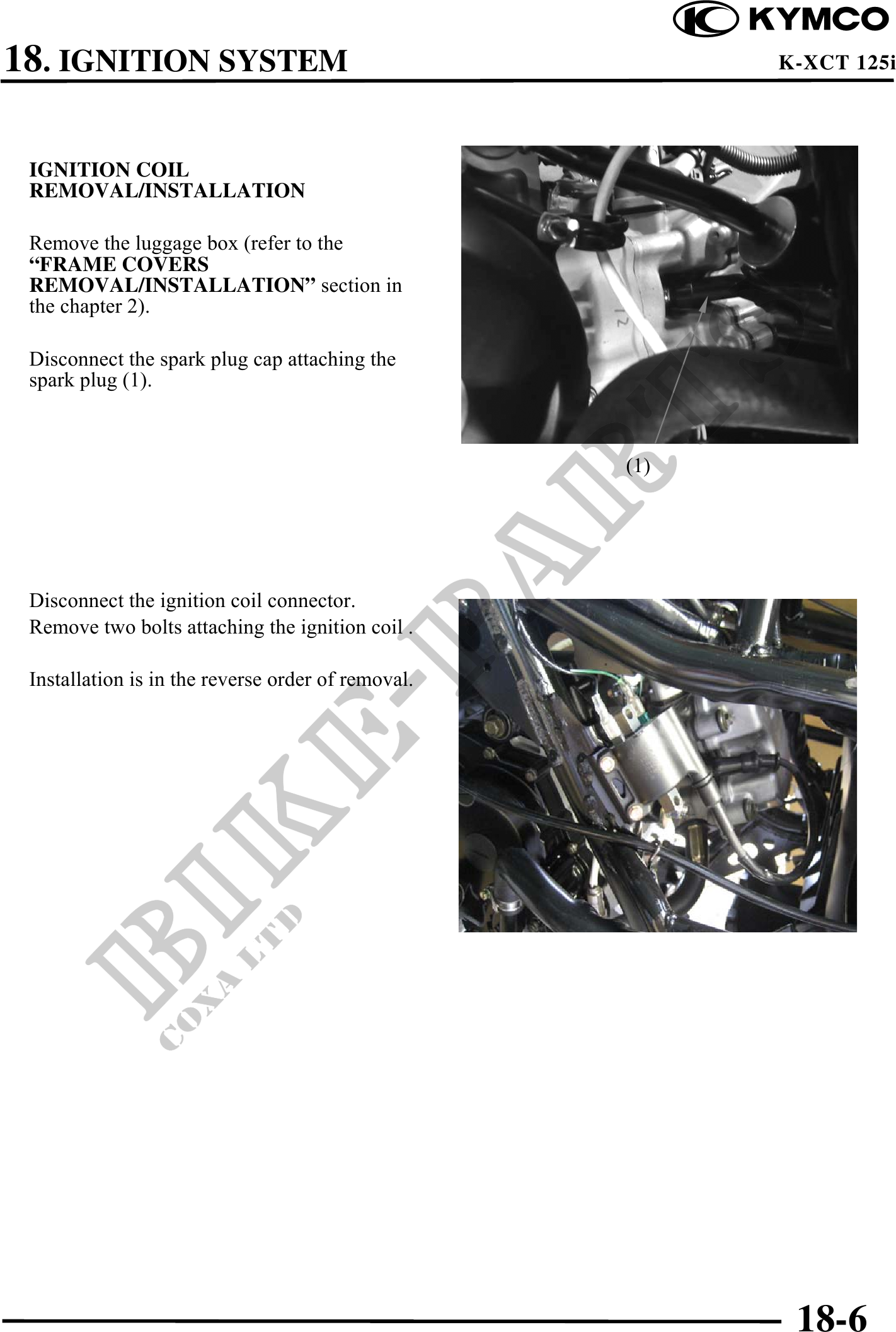

          18. IGNITION SYSTEM                                       K-XCT 125i




 IGNITION COIL
 REMOVAL/INSTALLATION

 Remove the luggage box (refer to the
 "FRAME COVERS
 REMOVAL/INSTALLATION" section in
 the chapter 2).

 Disconnect the spark plug cap attaching the
 spark plug (1).



                                                    (1)




 Disconnect the ignition coil connector.
 Remove two bolts attaching the ignition coil .

 Installation is in the reverse order of removal.
