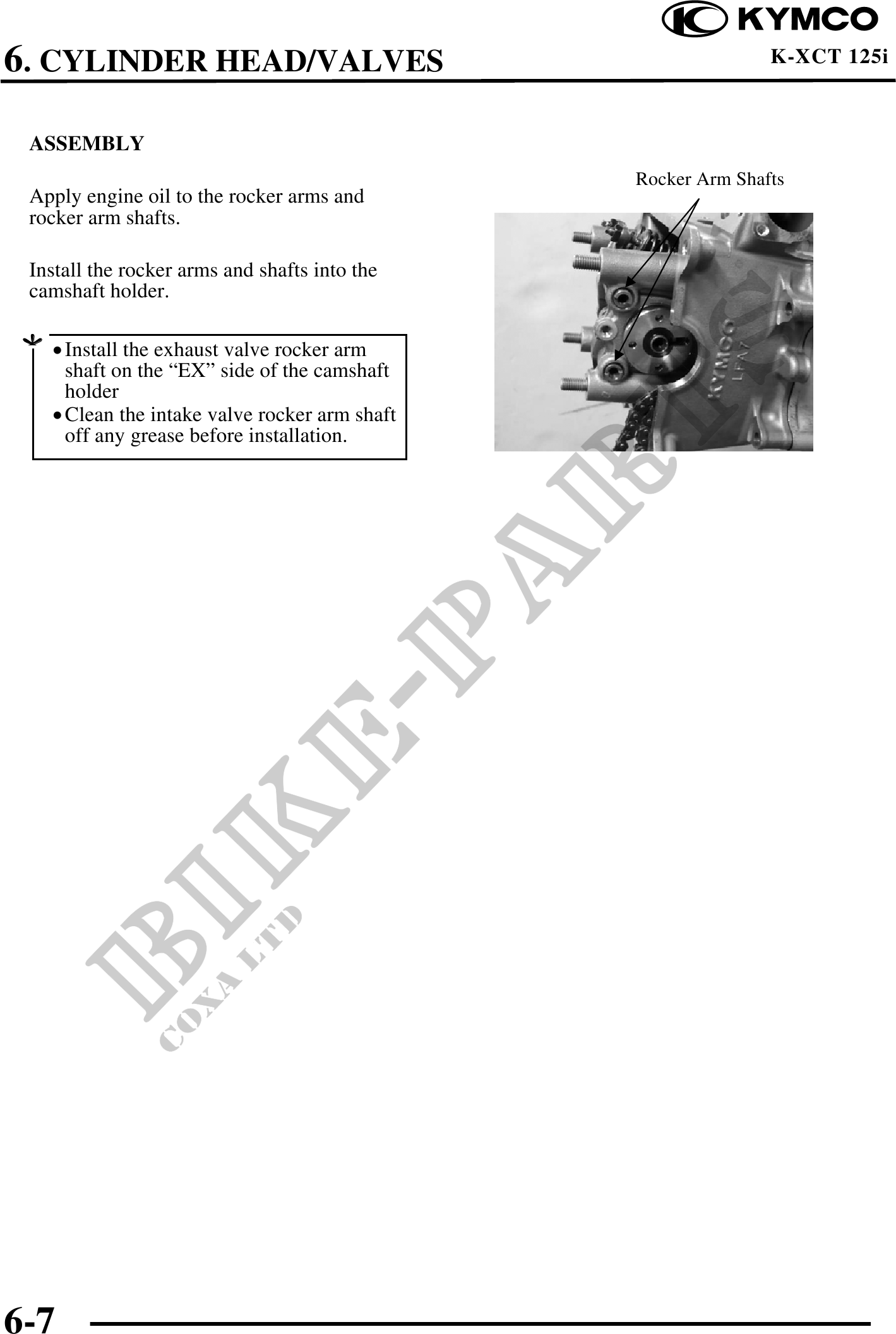

          6. CYLINDER HEAD/VALVES                                       K-XCT 125i



 ASSEMBLY
                                               Rocker Arm Shafts
 Apply engine oil to the rocker arms and
 rocker arm shafts.

 Install the rocker arms and shafts into the
 camshaft holder.

  Install the exhaust valve rocker arm
    shaft on the "EX" side of the camshaft
    holder
    Clean the intake valve rocker arm shaft
    off any grease before installation.
