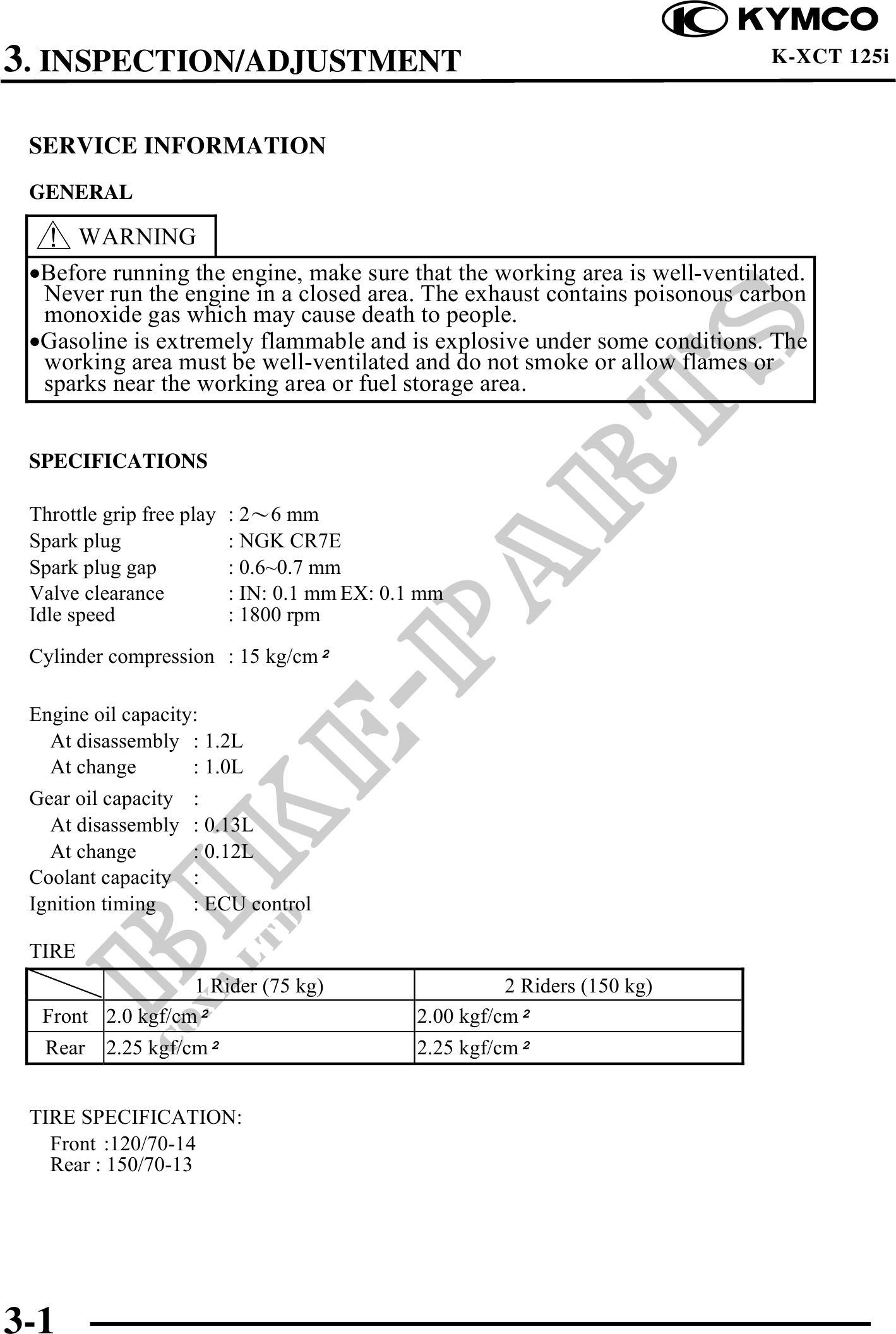

3. INSPECTION/ADJUSTMENT K-XCT 125i
SERVICE INFORMATION
GENERAL
WARNING
Before running the engine, make sure that the working area is well-ventilated.
Never run the engine in a closed area. The exhaust contains poisonous carbon
monoxide gas which may cause death to people.
Gasoline is extremely flammable and is explosive under some conditions. The
working area must be well-ventilated and do not smoke or allow flames or
sparks near the working area or fuel storage area.
SPECIFICATIONS
Throttle grip free play : 26 mm
Spark plug : NGK CR7E
Spark plug gap : 0.6~0.7 mm
Valve clearance : IN: 0.1 mm EX: 0.1 mm
Idle speed : 1800 rpm
Cylinder compression : 15 kg/cm
Engine oil capacity:
At disassembly : 1.2L
At change : 1.0L
Gear oil capacity :
At disassembly : 0.13L
At change : 0.12L
Coolant capacity :
Ignition timing : ECU control
TIRE
1 Rider (75 kg) 2 Riders (150 kg)
Front 2.0 kgf/cm 2.00 kgf/cm
Rear 2.25 kgf/cm 2.25 kgf/cm
TIRE SPECIFICATION:
Front :120/70-14
Rear : 150/70-13
3-1
