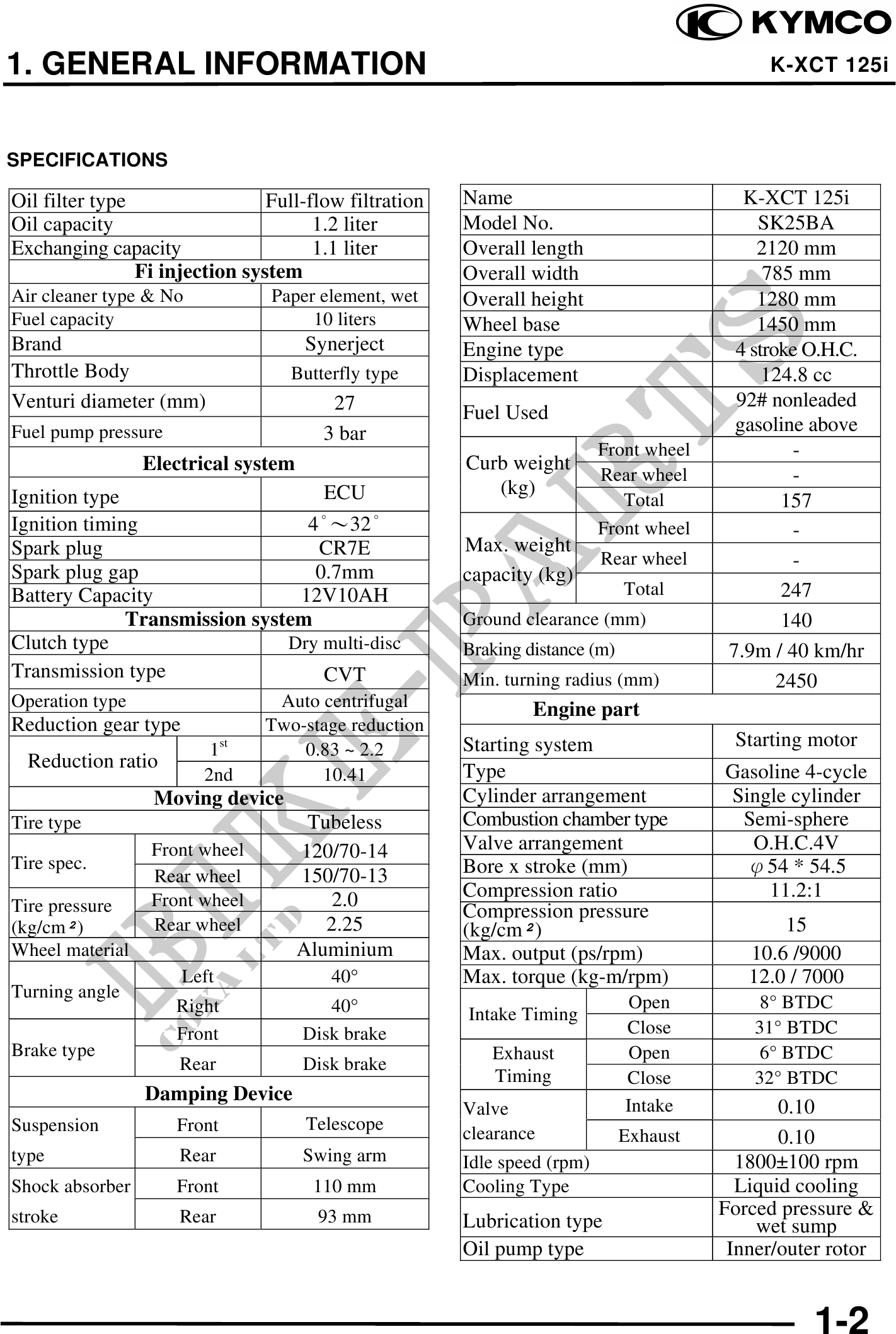

          1. GENERAL INFORMATION                                                                       K-XCT 125i



SPECIFICATIONS

Oil filter type                 Full-flow filtration   Name                                K-XCT 125i
Oil capacity                          1.2 liter        Model No.                             SK25BA
Exchanging capacity                   1.1 liter        Overall length                        2120 mm
                Fi injection system                    Overall width                          785 mm
Air cleaner type & No           Paper element, wet     Overall height                        1280 mm
Fuel capacity                        10 liters         Wheel base                            1450 mm
Brand                                Synerject         Engine type                        4 stroke O.H.C.
Throttle Body                      Butterfly type      Displacement                           124.8 cc
Venturi diameter (mm)                   27                                                92# nonleaded
                                                       Fuel Used
Fuel pump pressure                     3 bar                                              gasoline above
                                                                          Front wheel             -
                 Electrical system                     Curb weight
                                                                          Rear wheel              -
Ignition type                      ECU                    (kg)
                                                                             Total               157
Ignition timing                  4°32°                                    Front wheel             -
Spark plug                        CR7E                 Max. weight
                                                                          Rear wheel              -
Spark plug gap                    0.7mm                capacity (kg)
Battery Capacity                12V10AH                                       Total              247
              Transmission system                      Ground clearance (mm)                     140
Clutch type                    Dry multi-disc          Braking distance (m)              7.9m / 40 km/hr
Transmission type                  CVT                 Min. turning radius (mm)                 2450
Operation type                   Auto centrifugal               Engine part
Reduction gear type             Two-stage reduction
                         1st        0.83 ~ 2.2         Starting system                   Starting motor
  Reduction ratio                                      Type                             Gasoline 4-cycle
                        2nd           10.41
                  Moving device                        Cylinder arrangement             Single cylinder
Tire type                             Tubeless         Combustion chamber type           Semi-sphere
                  Front wheel        120/70-14         Valve arrangement                  O.H.C.4V
Tire spec.                                             Bore x stroke (mm)                 54 * 54.5
                  Rear wheel         150/70-13
                  Front wheel            2.0           Compression ratio                    11.2:1
Tire pressure                                          Compression pressure
(kg/cm)           Rear wheel            2.25           (kg/cm)                                 15
Wheel material                       Aluminium         Max. output (ps/rpm)                10.6 /9000
                      Left              40             Max. torque (kg-m/rpm)              12.0 / 7000
Turning angle
                     Right              40                                     Open         8° BTDC
                                                       Intake Timing
                     Front           Disk brake                               Close         31° BTDC
Brake type                                                Exhaust              Open         6° BTDC
                     Rear            Disk brake
                                                          Timing              Close         32° BTDC
                 Damping Device
                                                       Valve                  Intake           0.10
Suspension           Front           Telescope         clearance              Exhaust          0.10
type                 Rear            Swing arm         Idle speed (rpm)                   1800100 rpm
Shock absorber       Front            110 mm           Cooling Type                       Liquid cooling
stroke               Rear              93 mm                                            Forced pressure &
                                                       Lubrication type                     wet sump
                                                       Oil pump type                     Inner/outer rotor


                                                                                                   1-2
