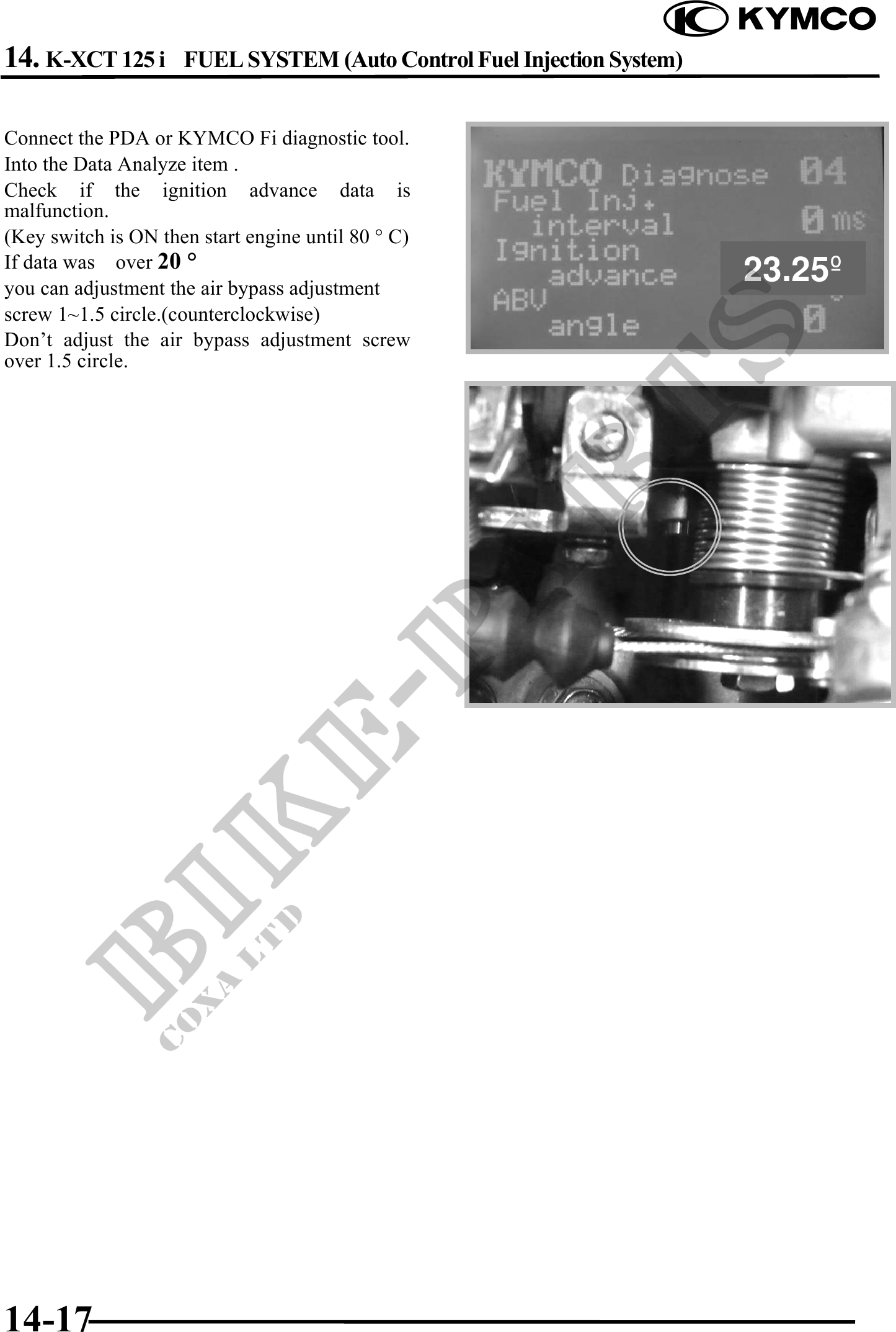

          14. K-XCT 125 i      FUEL SYSTEM (Auto Control Fuel Injection System)


Connect the PDA or KYMCO Fi diagnostic tool.
Into the Data Analyze item .
Check if the ignition advance data is
malfunction.
(Key switch is ON then start engine until 80 ° C)
If data was over 20 °
you can adjustment the air bypass adjustment
                                                                        23.25
screw 1~1.5 circle.(counterclockwise)
Don't adjust the air bypass adjustment screw
over 1.5 circle.




14-17
