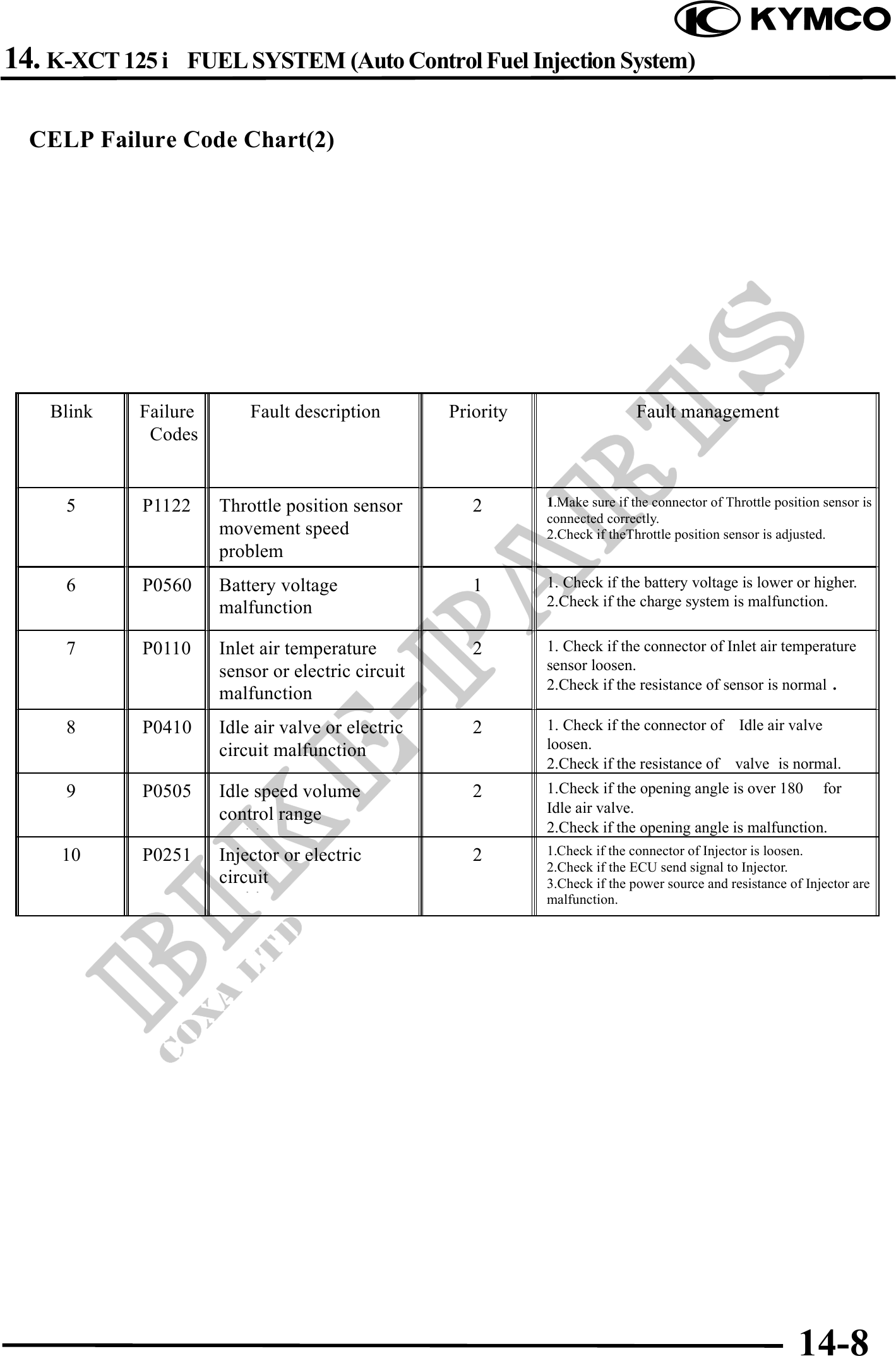

14. K-XCT 125 i FUEL SYSTEM (Auto Control Fuel Injection System)
CELP Failure Code Chart(2)
Blink Failure Fault description Priority Fault management
Codes
5 P1122 Throttle position sensor 2 1.Make sure if the connector of Throttle position sensor is
connected correctly.
movement speed 2.Check if theThrottle position sensor is adjusted.
problem
6 P0560 Battery voltage 1 1. Check if the battery voltage is lower or higher.
malfunction 2.Check if the charge system is malfunction.
7 P0110 Inlet air temperature 2 1. Check if the connector of Inlet air temperature
sensor or electric circuit sensor loosen.
2.Check if the resistance of sensor is normal .
malfunction
8 P0410 Idle air valve or electric 2 1. Check if the connector of Idle air valve
circuit malfunction loosen.
2.Check if the resistance of valve is normal.
9 P0505 Idle speed volume 2 1.Check if the opening angle is over 180 for
control range Idle air valve.
2.Check if the opening angle is malfunction.
bl
10 P0251 Injector or electric 2 1.Check if the connector of Injector is loosen.
2.Check if the ECU send signal to Injector.
circuit 3.Check if the power source and resistance of Injector are
bl malfunction.
14-8
