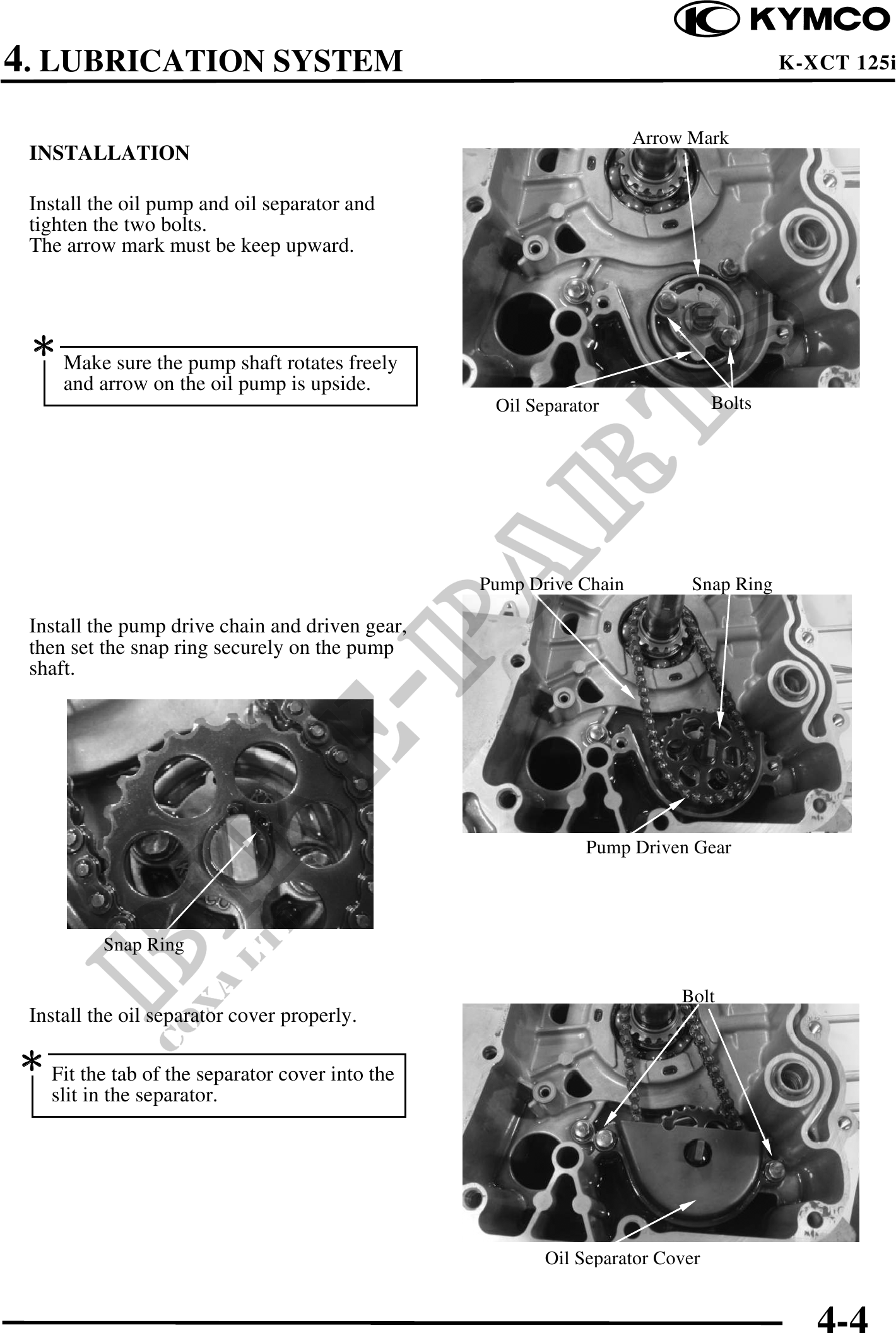

          4. LUBRICATION SYSTEM                                                                 K-XCT 125i


                                                                    Arrow Mark
 INSTALLATION

 Install the oil pump and oil separator and
 tighten the two bolts.
 The arrow mark must be keep upward.



  Make sure the pump shaft rotates freely
     and arrow on the oil pump is upside.
                                                  Oil Separator               Bolts




                                                 Pump Drive Chain         Snap Ring

 Install the pump drive chain and driven gear,
 then set the snap ring securely on the pump
 shaft.




                                                             Pump Driven Gear




          Snap Ring

                                                                         Bolt
 Install the oil separator cover properly.

 Fit the tab of the separator cover into the
    slit in the separator.




                                                        Oil Separator Cover


                                                                                         4-4
