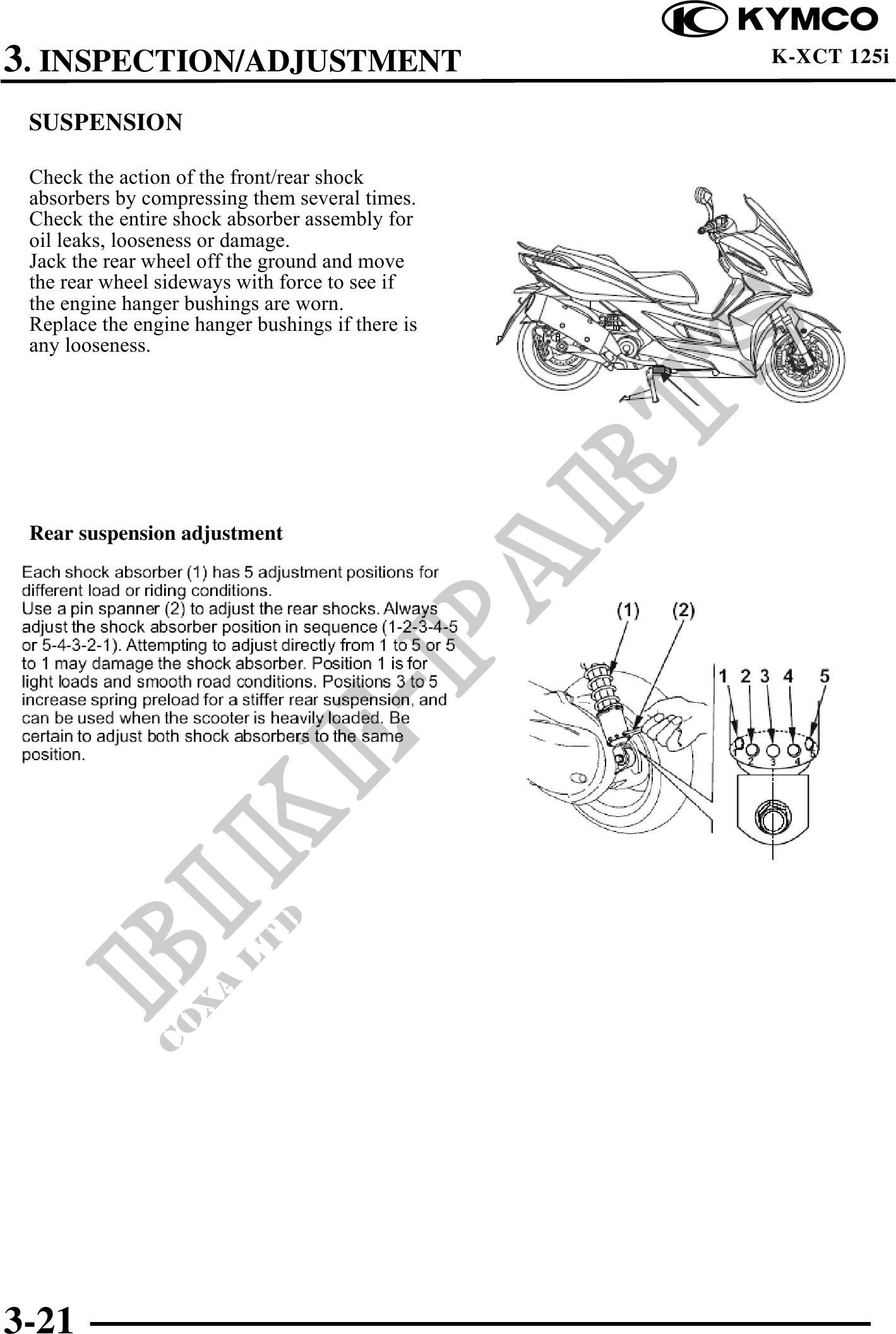

          3. INSPECTION/ADJUSTMENT                          K-XCT 125i


 SUSPENSION

 Check the action of the front/rear shock
 absorbers by compressing them several times.
 Check the entire shock absorber assembly for
 oil leaks, looseness or damage.
 Jack the rear wheel off the ground and move
 the rear wheel sideways with force to see if
 the engine hanger bushings are worn.
 Replace the engine hanger bushings if there is
 any looseness.




 Rear suspension adjustment




3-21
