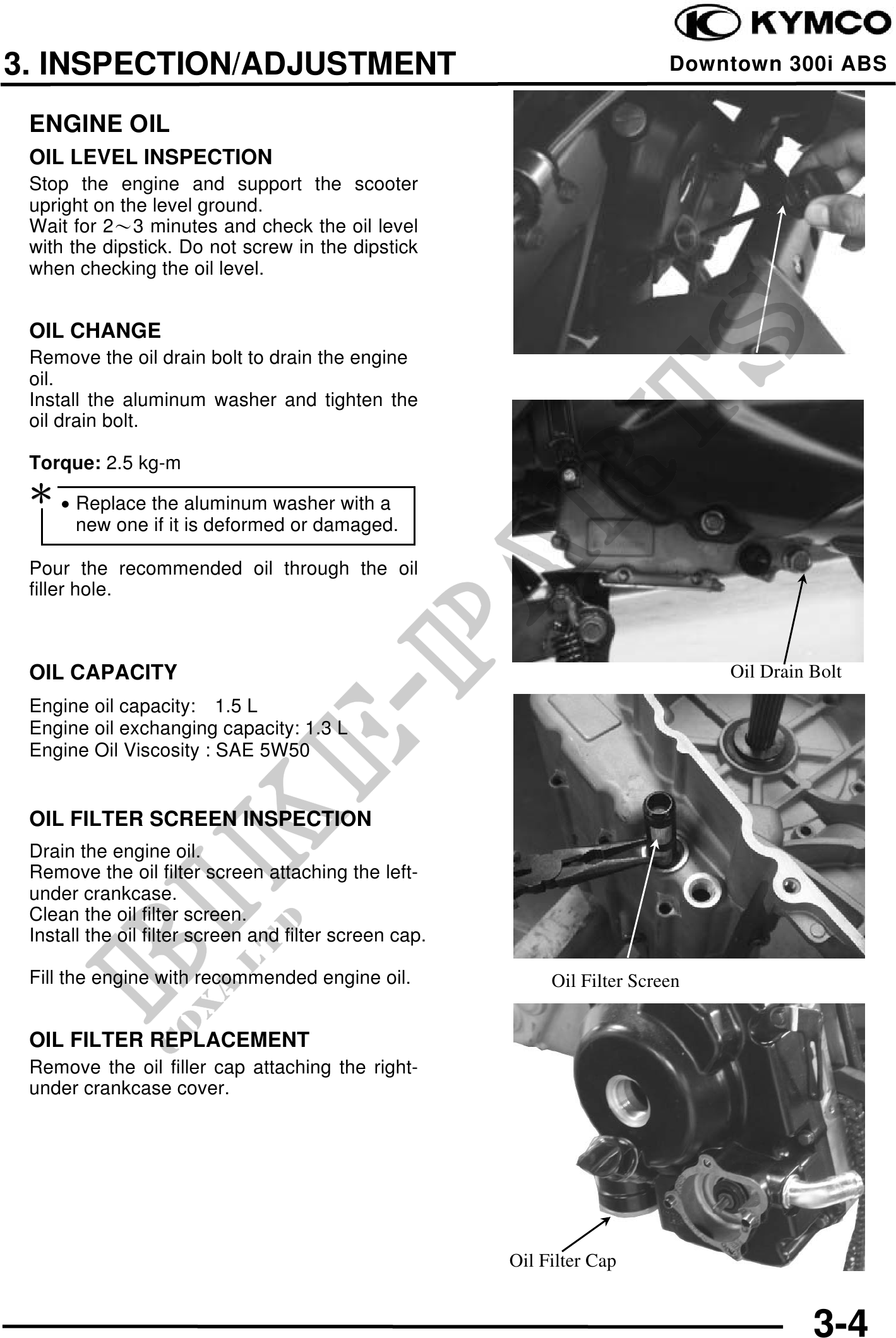

3. INSPECTION/ADJUSTMENT Downtown 300i ABS
ENGINE OIL
OIL LEVEL INSPECTION
Stop the engine and support the scooter
upright on the level ground.
Wait for 23 minutes and check the oil level
with the dipstick. Do not screw in the dipstick
when checking the oil level.
OIL CHANGE
Remove the oil drain bolt to drain the engine
oil.
Install the aluminum washer and tighten the
oil drain bolt.
Torque: 2.5 kg-m
· Replace the aluminum washer with a
new one if it is deformed or damaged.
Pour the recommended oil through the oil
filler hole.
OIL CAPACITY Oil Drain Bolt
Engine oil capacity: 1.5 L
Engine oil exchanging capacity: 1.3 L
Engine Oil Viscosity : SAE 5W50
OIL FILTER SCREEN INSPECTION
Drain the engine oil.
Remove the oil filter screen attaching the left-
under crankcase.
Clean the oil filter screen.
Install the oil filter screen and filter screen cap.
Fill the engine with recommended engine oil. Oil Filter Screen
OIL FILTER REPLACEMENT
Remove the oil filler cap attaching the right-
under crankcase cover.
Oil Filter Cap
3-4
